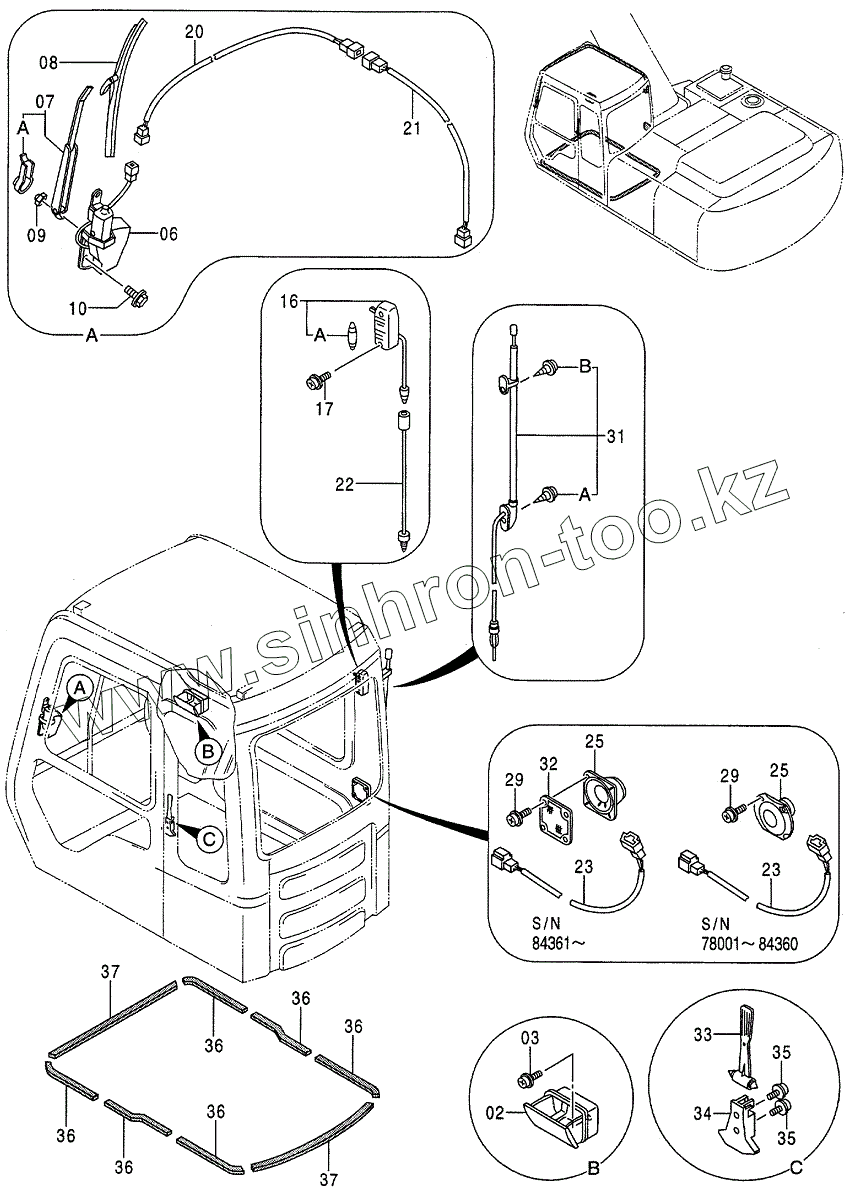

Каталог запасных частей к технике: Hitachi EX-200-3. CAB GROUP (2)
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
EX-100-2 (2000)
EX-100-3 (2008)
EX-100WD (2008)
EX-120 (2008)
EX-120-2 (2008)
EX-160WD (2008)
EX-200 (2008)
EX-200-2 (2008)
EX-200-3
EX-220 (2008)
EX-220-2 (2008)
EX-270 (2008)
EX-300 (2008)
EX-300-2 (2000)
EX-400 Type A (2006)
EX-400 Type B (2006)
EX-60 (2003)
EX-60-2 (2000)
EX-60-3 (2008)
EX-70 (2017)
LX-110-7 (2008)
LX-130-7 (2008)
LX-150-2 (2008)
LX-160-7 (2008)
LX190-7/LX230-7 (2008)
Zaxis 190-3
ZAXIS 200-5A (2018)
ZAXIS 200LC-5A (2018)
ZAXIS 210H-5A (2018)
ZAXIS 210K-5A (2018)
ZAXIS 210LCH-5A (2018)
ZAXIS 210LCK-5A (2018)
ZAXIS 330-5G (2017)
ZAXIS 350H-5G (2017)
ZAXIS 48U-5A (2020)
ZAXIS 850-3
ZAXIS 870H-3
ZX-110 (2008)
ZX-160W (2008)
ZX-200 (2008)
ZX-230 (2008)
ZX-25 (2008)
ZX-270 (2008)
ZX-330 (2010)
ZX-330-3 (Part № PIHH-I-3) (2008)
ZX-330-3 (Part № PIHH-I-5) (2013)
ZX-330-3G (2008)
ZX-400R-3 (2010)
ZX-450 (2006)
ZX-600 (2007)
Компоненты EX-100-2 (2000)
Компоненты EX-100WD (2008)
Компоненты EX-120 (2008)
Компоненты EX-120-2 (2008)
Компоненты EX-160WD (2008)
Компоненты EX-200 (2008)
Компоненты EX-200-2 (2008)
Компоненты EX-200-3(LC, H)
Компоненты EX-220 (2008)
Компоненты EX-220-2 (2008)
Компоненты EX-270 (2008)
Компоненты EX-300 (2008)
Компоненты EX-300-2 (2000)
Компоненты EX-400 Type A (2006)
Компоненты EX-400 Type B (2006)
Компоненты EX-60 (2003)
Компоненты EX-60-2 (2000)
Компоненты EX-60-3 (2008)
Компоненты ZAXIS 450, 470, 500, 520 (2010)
Компоненты ZX-110 (2008)
Компоненты ZX-120 (130) (2008)
Компоненты ZX-160W (2008)
Компоненты ZX-200 (2008)
Компоненты ZX-230 (2008)
Компоненты ZX-270 (2008)
Компоненты ZX-330 (2008)
Компоненты ZX-450 (2006)
Схема
>
Не выбрано
FRAME
COUNTERWEIGHT
ENGINE
RADIATOR
RESERVE TANK
AIR CLEANER
MUFFLER
FUEL PIPINGS
FUEL TANK
FUEL FEED PUMP (OPTION)
FUEL DOUBLE FILTER (OPTION)
PUMP DEVICE
SWING DEVICE
OIL TANK, 78001~84672
OIL TANK, 84673~
OIL COOLER PIPINGS (1)
OIL COOLER PIPINGS (2)
OIL COOLER PIPINGS (3)
OIL COOLER PIPINGS (4)
MAIN PIPINGS (1), 78001~78018
MAIN PIPINGS (1), 78019~
MAIN PIPINGS (2)
MAIN PIPINGS (3)
MAIN PIPINGS (4)
SWING PIPINGS
ENGINE CONTROL MOTOR
ENGINE CONTROL CABLE
ENGINE CONTROL LEVER (OPTION)
CONTROL LEVER (1)
CONTROL LEVER (2), STD: 78001~82322, LC: 78001~82367
CONTROL LEVER (2), STD: 82323~, LC: 82368~
CONTROL LEVER (3)
PILOT PIPINGS (1-1)
PILOT PIPINGS (1-2) <STD>
PILOT PIPINGS (1-2) <USA>
PILOT PIPINGS (1-3)
PILOT PIPINGS (2-1)
PILOT PIPINGS (2-2)
PILOT PIPINGS (2-3)
PILOT PIPINGS (3-1)
PILOT PIPINGS (3-2)
PILOT PIPINGS (3-3)
PILOT PIPINGS (4-1)
PILOT PIPINGS (4-2)
PILOT PIPINGS (5-1) <STD>
PILOT PIPINGS (5-1) <USA>
PILOT PIPINGS (5-2) <STD>
PILOT PIPINGS (5-2) <USA>
PILOT PIPINGS (6-1)
PILOT PIPINGS (6-2)
CONSOLE (R)
CONSOLE (L) <STD>
CONSOLE (L) <USA>
SWITCH BOX
GAUGE PANEL
RADIO <STD>
RADIO <USA>
ELECTRIC PARTS (1)
ELECTRIC PARTS (2) <STD>
ELECTRIC PARTS (2) <USA>
ELECTRIC PARTS (3-1)
ELECTRIC PARTS (3-2)
ELECTRIC PARTS (3-3)
ELECTRIC PARTS (3-4)
MOTION ALARM <USA>
WINDOW WASHER, STD: 78001~85032, LC: 78001~85386
WINDOW WASHER, STD: 85003~, LC: 85387~
CAR HEATER, STD: 78001~78902, LC: 78001~78875
CAR HEATER, STD: 78903~85473, LC: 78876~85473
CAR HEATER, 85747~
CAR HEATER PARTS, STD: 78001~78902, LC: 78001~78875
CAR HEATER PARTS, STD: 78903~85473, LC: 78867~85473
CAR HEATER PARTS, 85747~
HEATER PIPINGS
CAB GROUP (1)
CAB GROUP (2)
REARVIEW MIRROR
CAB <200, LC>
CAB <200H, LCH>
CAB (1)
CAB (2)
CAB (3)
CAB (4)
CAB (5)
CAB (6)
REAR COVER (INSIDE OF CAB)
FLOOR PARTS
SEAT <STD>
SEAT <USA>
SEAT SUSPENSION <STD>
SEAT SUSPENSION <USA>
SEAT BELT
COVER (1-1)
COVER (1-2)
COVER (1-3), 78001~84672
COVER (1-3), 85673~
COVER (1-4)
COVER (1-5)
COVER (1-6)
COVER (1-7)
COVER (2) <200, LC>
COVER (2) <200H, LCH>
DOOR LOCK (1)
DOOR LOCK (2)
DOOR LOCK (3)
TRACKFRAME <200>, 78001~85184
TRACKFRAME <200>, 85185~
TRACK FRAME <200 LC>, 78001~85386
TRACK FRAME <200 LC>, 85387~
TRACK FRAME <200H>, 78001~84671
TRACK FRAME <200H>, 84672~
TRACK FRAME <200LCH>, 78001~84671
TRACK FRAME <200LCH>, 84672~
STEP <200H, LCH>, 84672~
SWING BEARING
TRAVEL DEVICE
FRONT IDLER
ADJUSTER
UPPER ROLLER, 78001~83807
UPPER ROLLER, 83808~
LOWER ROLLER (STD. TRACK)
LOWER ROLLER (LC TRACK)
TRACK-LINK 600G <200>
TRACK-LINK 600G <200LC>
TRACK-LINK 600G <200H>
TRACK-LINK 600G <200LCH>
CENTER JOINT
TRAVEL PIPINGS (STD. TRACK)
TRAVEL PIPINGS (LC TRACK)
TRAVEL PIPINGS COVER, STD: 78001~85184, LC: 78001~85386
TRAVEL PIPINGS COVER, STD: 85185~, LC: 85387~
BOOM
H BOOM
STD. ARM 2.91M
H ARM 2.91M
BUCKET 0.8 <JIS 94>
H BUCKET 0.8 <JIS 94>
FRONT PIPINGS (1)
FRONT PIPINGS (2)
LUBRICATE PIPINGS
PILOT PIPINGS <TYPE 15>
BOOM <TYPE 15>
ARM <TYPE 15>
BUCKET 0.4 <JIS 94>
BUCKET 0.48 <JIS 94>
DITCH CLEANING BUCKET 0.48 <JIS 94> (WITHOUT POINTS)
DITCH CLEANING BUCKET 0.48 <JIS 94> (WITHOUT POINTS)
FRONT PIPINGS (1) <TYPE 15>
FRONT PIPINGS (2) <TYPE 15>
LUBRICATE PIPINGS (1) <TYPE 15>
LUBRICATE PIPINGS (2) <TYPE 15>
MULTI LEVER PIPINGS (1)
MULTI LEVER PIPINGS (2)
MULTI LEVER PIPINGS (3)
MULTI LEVER PIPINGS (4)
AIR CONDITIONER (1), 78001~79275
AIR CONDITIONER (1), 79276~
AIR CONDITIONER (2)
PRESSURE TYPE AIR-CON. PARTS
AIR-CON. UNIT
AIR—CON. CONTROLLER (STD. Type), 78001~81690
AIR—CON. CONTROLLER (STD. Type), 81691~
AIR—CON. CONTROLLER (PRESSURE Type), 78001~D94/10
AIR—CON. CONTROLLER (PRESSURE Type), D94/11~
HOT & COOL BOX
TROPICAL COVER
WINDOW GUARD <USA>
TRACK-LINK 700G <200>
TRACK-LINK 700G <200LC>
TRACK-LINK 800G <200>
TRACK—LINK 800G <200LC>
TRACK-LINK 600F <200>
TRACK-LINK 600F <200LC>
TRACK-LINK 900A <200>
TRACK-LINK 900A <200LC>
TRACK—LINK 600GP (RUBBER PAD) <200>
TRACK-LINK 600GP (RUBBER PAD) <200LC>
SHORT ARM 2.22M
FRONT PIPINGS (2) <SHORT ARM>
BUCKET—HOOK PARTS
BUCKET 0.51 <JIS 94>
BUCKET 0.91 <JIS 94>
BUCKET 1.1 <JIS 94>
BUCKET 1.2 <JIS 94>
RIPPER BUCKET 0.6 <JIS 94>
ONE-POINT RIPPER
SLOPE—FINISHING BLADE
CLAMSHELL BUCKET (1)
CLAMSHELL BUCKET (2)
CLAMSHELL BUCKET (3)
CLAMSHELL PIPINGS
HOSE RUPTURE VALVE PIPINGS (BOOM):1
HOSE RUPTURE VALVE PIPINGS (BOOM):2
HOSE RUPTURE VALVE PIPINGS (BOOM):3
HOSE RUPTURE VALVE PIPINGS (ARM):1
HOSE RUPTURE VALVE PIPINGS (ARM):2
HOSE RUPTURE VALVE PIPINGS (ARM):3
CONTROL PEDAL (BREAKER & CRUSHER)
PILOT PIPINGS (BREAKER & CRUSHER)
MAIN PIPINGS FOR BREAKER & CRUSHER
FRONT PIPINGS FOR BREAKER & CRUSHER
PIPINGS FOR NPK BREAKER
PIPINGS FOR NPK BREAKER & CRUSHER
PIPINGS FOR OKADA/FURUKAWA BREAKER
PIPINGS FOR OKADA/FURUKAWA BREAKER & CRUSHER
TOOLS
SPARE PARTS, 78001~D94/11
NAME-PLATE (JAPANESE) <STD>
NAME-PLATE (ENGLISH) <STD>
NAME-PLATE (ENGLISH) <USA>
02
03
06
07
07A
08
09
10
16
16A
17
20
21
22
23
23
25
25
25
25
29
29
29
29
31
31A
31B
32
33
34
35
35
36
36
36
36
36
36
37
37
Позиция на иллюстрации
Заводской номер детали
Название детали
02
4298985
ASHTRAY
03
J450510
SCREW, SEMS
06
4256364
WIPER-MOTOR
07
4257131
WIPER-ARM
07A
4311679
COVER
08
4257132
WIPER-BLADE
09
M500807
NUT
10
J020612
BOLT, SEMS
16
4187082
LAMP, ROOM
16A
4187083
BULB
17
J450514
SCREW, SEMS
20
4260367
HARNESS, WIRE
21
4260368
HARNESS, WIRE
22
4260369
HARNESS, WIRE
23
4260370
HARNESS, WIRE
25
4257148
SPEAKER
25
4361302
SPEAKER
29
J670414
SCREW, SEMS
29
4372608
SCREW, SEMS
31
4280527
ANTENNA
31A
4210412
SCREW
31B
4210413
SCREW
32
4364504
GRILLE
33
4362700
HAMMER
34
2038764
BRACKET
35
J460516
SCREW SEMS
36
4334065
RUBBER
37
4334066
RUBBER
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
