4177881
4177881
1
1
2
3
3
5
6
7
7
9
10
11
12
12
13
13
15
16
46
47
48
49
57
58
65
66

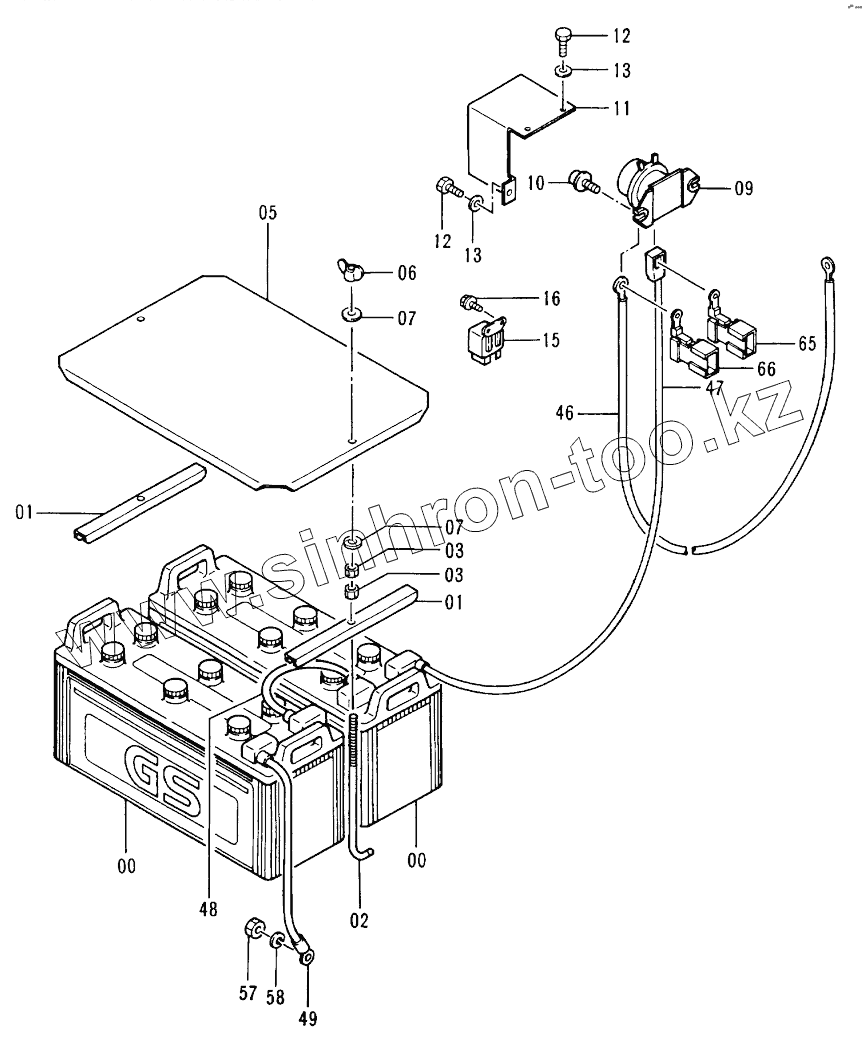

Позиция на иллюстрации
Заводской номер детали
Название детали
4177881
4177881
BATTERY
1
4203223
SUPPORT
2
4257034
BOLT, HOOK
3
J950010
NUT
5
8048043
COVER
6
М570010
NUT, WING
7
А590110
WASHER, PLANE
9
4255762
RELAY, BATTERY
10
J020830
BOLT, SEMS
11
3056019
COVER
12
J900816
BOLT
13
А590108
WASHER, PLANE
15
4251587
RELAY
16
J020620
BOLT, SEMS
46
4263508
HARNESS
47
4263510
HARNESS, WIRE
48
4263511
HARNESS, WIRE
49
4263509
HARNESS
57
J950010
NUT
58
А590910
WASHER, SPRING
65
4270554
FUSIBLE-LINK
66
4270555
FUSIBLE-LINK
