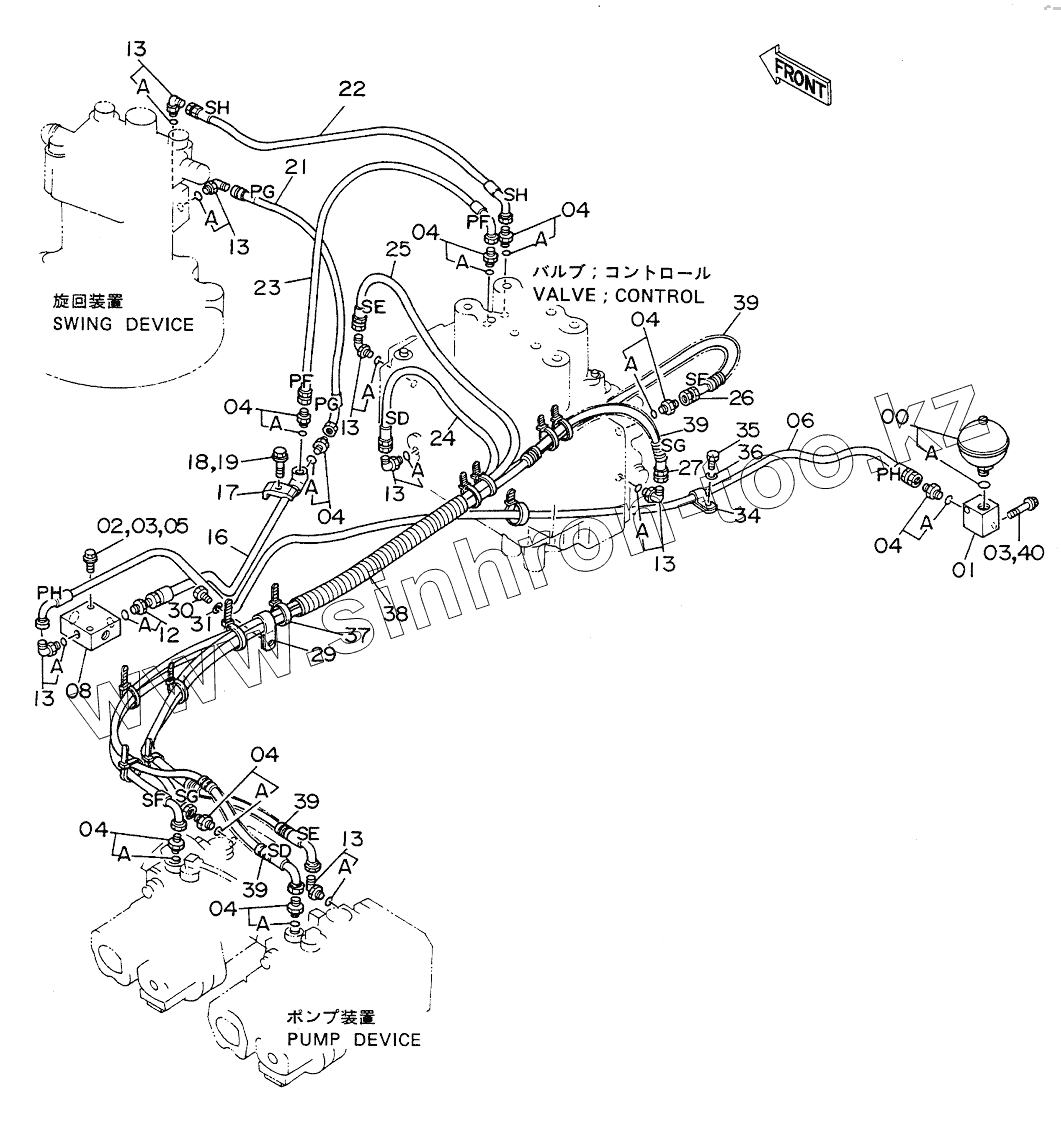

Каталог запасных частей к технике: Hitachi EX-200. PILOT PIPINGS (2) <SDX>
00
00A
01
02
02
03
03
04
04
04
04
04
04
04
04
04
04A
04A
04A
04A
04A
04A
04A
04A
04A
05
06
08
12
12A
13
13
13
13
13
13
13
13A
13A
13A
13A
13A
13A
13A
16
17
18
18
19
21
21
22
23
24
25
26
27
29
30
31
34
35
36
37
38
39
39
39
39
40
40
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 4195978 | ACCUMULATOR | |
| 00A | 954493 | O-RING | |
| 01 | 3036998 | BLOCK | |
| 02 | J901060 | BOLT | |
| 02 | J021060 | BOLT, SEMS | |
| 03 | А590910 | WASHER, SPRING | |
| 04 | 4200465 | ADAPTER, S | |
| 04A | 957366 | O-RING | |
| 05 | А590110 | WASHER, PLANE | |
| 06 | 4203123 | HOSE, NYLON | |
| 08 | 9072360 | VALVE, CHECK | |
| 12 | 4200466 | ADAPTER, S | |
| 12A | 4509180 | O-RING | |
| 13 | 4154670 | ELBOW, S | |
| 13A | 957366 | O-RING | |
| 16 | 9727747 | PIPE | |
| 17 | 4190124 | СLАМР, РIРЕ | |
| 18 | J901245 | BOLT | |
| 18 | J011245 | BOLT, SEMS | |
| 19 | А590912 | WASHER, SPRING | |
| 21 | 4203084 | HOSE, NYLON | |
| 21 | 4225422 | HOSE, NYLON | |
| 22 | 4203085 | HOSE, NYLON | |
| 23 | 4203083 | HOSE, NYLON | |
| 24 | 4203076 | HOSE | |
| 25 | 4203077 | HOSE, NYLON | |
| 26 | 4203078 | HOSE | |
| 27 | 4203079 | HOSE, NYLON | |
| 29 | 4192035 | CLIP | |
| 30 | J901018 | BOLT | |
| 31 | А590910 | WASHER, SPRING | |
| 34 | 4190261 | CLIP | |
| 35 | J901018 | BOLT | |
| 36 | А590910 | WASHER, SPRING | |
| 37 | 4055312 | CLIP, BAND | |
| 38 | 4044420 | PROTECTOR | |
| 39 | 4207518 | TUBE | |
| 40 | J901060 | BOLT | |
| 40 | J011060 | BOLT SEMS |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
