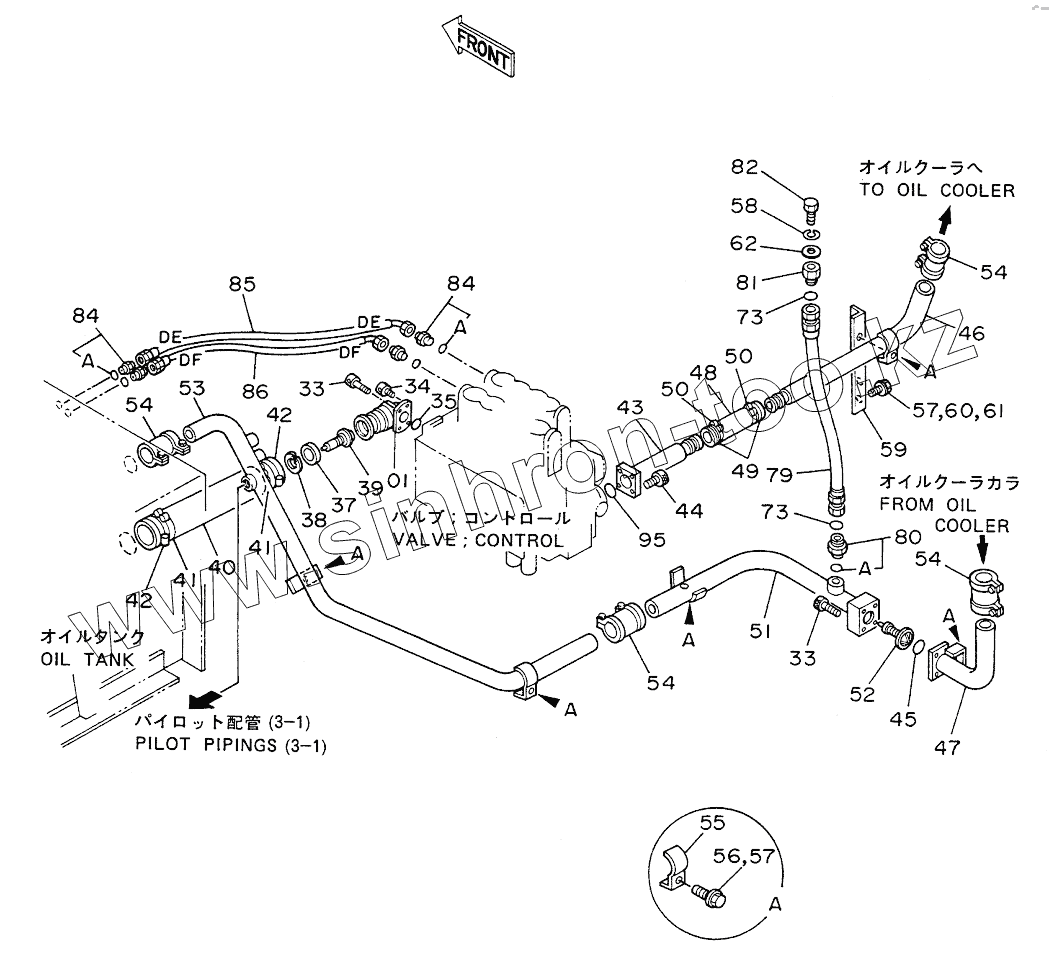

Каталог запасных частей к технике: Hitachi EX-200. OIL COOLER PIPINGS (2)
01
33
33
34
35
37
38
39
40
41
41
41
41
42
42
43
43
44
45
46
47
48
49
50
50
50
50
51
52
53
54
54
54
54
55
56
56
57
57
58
59
60
60
61
62
73
73
79
80
80A
81
82
84
84
84A
84A
85
86
95
95
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 01 | 2021682 | MANIFOLD | |
| 33 | M341060 | BOLT, SOCKET | |
| 34 | М341022 | BOLT, SOCKET | |
| 35 | AS11040 | O-RING | |
| 37 | 4188628 | RING | |
| 38 | 991721 | RING, RETAINING | |
| 39 | 4172821 | VALVE | |
| 40 | 4098558 | HOSE, RUBBER | |
| 41 | 4156850 | CLAMP, HOSE | |
| 41 | 4263764 | CLAMP, HOSE | |
| 42 | 4504491 | CLAMP, HOSE | |
| 43 | 9727905 | PIPE, RETURN | |
| 43 | 9728574 | PIPE, RETURN | |
| 44 | M341036 | BOLT, SOCKET | |
| 45 | A811045 | O-RING | |
| 46 | 4204728 | PIPE, RETURN | |
| 47 | 8038644 | PIPE, RETURN | |
| 48 | 4080206 | HOSE, RUBBER | |
| 49 | 4505385 | CLAMP, HOSE | |
| 50 | 4159683 | CLAMP, HOSE | |
| 50 | 4282474 | CLAMP, HOSE | |
| 51 | 8038789 | PIPE, RETURN | |
| 52 | 4202625 | VALVE | |
| 53 | 7016953 | PIPE, RETURN | |
| 54 | 4069801 | COUPLING | |
| 55 | 4053698 | CLAMP | |
| 56 | J901270 | BOLT | |
| 56 | J011270 | BOLT, SEMS | |
| 57 | А590912 | WASHER, SPRING | |
| 58 | А590912 | WASHER, SPRING | |
| 59 | 8033887 | SUPPORT | |
| 60 | J901235 | BOLT | |
| 60 | J021235 | BOLT, SEMS | |
| 61 | А590112 | WASHER, PLANE | |
| 62 | А590112 | WASHER, PLANE | |
| 73 | 4187308 | O-RING | |
| 79 | 4204162 | HOSE | |
| 80 | 4189619 | ADAPTER, S | |
| 80A | 4506424 | O-RING | |
| 81 | 4204882 | PLUG | |
| 82 | J901230 | BOLT | |
| 84 | 4200465 | ADAPTER, S | |
| 84A | 957366 | O-RING | |
| 85 | 4204178 | HOSE, NYLON | |
| 86 | 4204179 | HOSE, NYLON | |
| 95 | А811045 | O-RING | |
| 95 | А811040 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
