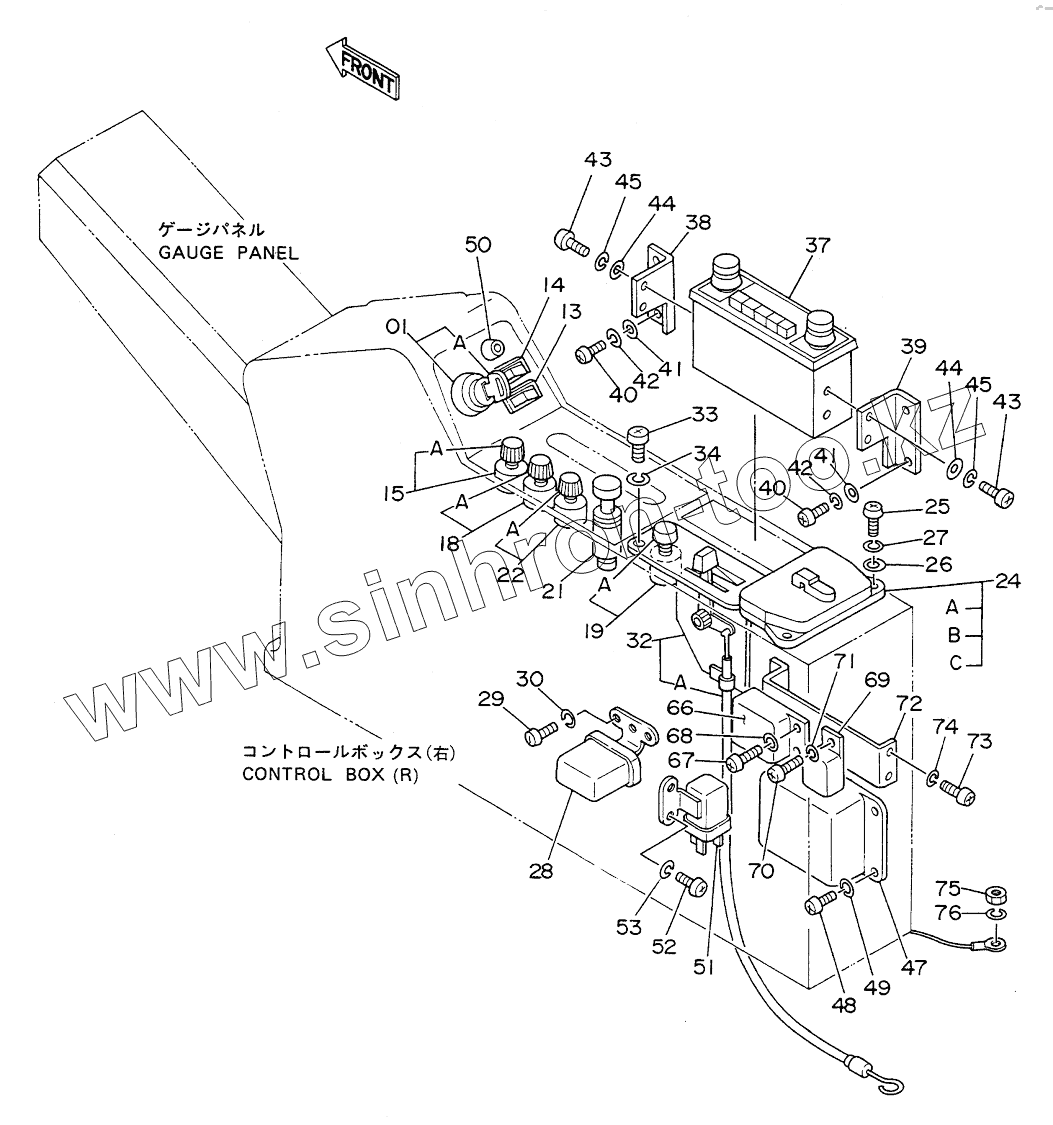

Каталог запасных частей к технике: Hitachi EX-200. ELECTRIC PARTS (1) <SDX>
01
01
01A
01A
13
14
15
15A
18
18A
19
19A
21
22
22A
24
24A
24B
24C
25
26
27
28
29
30
32
32A
33
34
37
38
39
40
40
41
41
42
42
43
43
44
44
45
45
47
48
49
50
51
52
53
66
67
68
69
70
71
72
73
74
75
76
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 01 | 4186745 | SWITCH, START | |
| 01 | 4186743 | SWITCH, START | |
| 01A | 4187759 | KEY, START | |
| 01A | 4187757 | KEY, START | |
| 13 | 4187088 | SWITCH | |
| 14 | 4187089 | SWITCH | |
| 15 | 4201802 | SWITCH | |
| 15A | 4268742 | KNOB | |
| 18 | 4184396 | SWITCH | |
| 18A | 4268740 | KNOB | |
| 19 | 4184397 | SWITCH | |
| 19A | 4268750 | KNOB | |
| 21 | 4184395 | LIGHTER | |
| 22 | 4184398 | SWITCH | |
| 22A | 4268741 | KNOB | |
| 24 | 4184394 | BOX, FUSE | |
| 24A | 4208246 | FUSE | |
| 24B | 4195610 | FUSE | |
| 24C | 4127781 | FUSE | |
| 25 | J850625 | SCREW | |
| 26 | J250006 | WASHER, PLANE | |
| 27 | J251006 | WASHER, SPRING | |
| 28 | 4505392 | RELAY | |
| 29 | М430610 | SCREW | |
| 30 | А590906 | WASHER, SPRING | |
| 32 | 4189169 | CONTROLLER | |
| 32A | 4248908 | CABLE | |
| 33 | J850410 | SCREW | |
| 34 | J251004 | WASHER, SPRING | |
| 37 | 4043976 | RADIO | |
| 38 | 4198945 | BRACKET | |
| 39 | 4198946 | BRACKET | |
| 40 | М430610 | SCREW | |
| 41 | А590106 | WASHER, PLANE | |
| 42 | А590906 | WASHER, SPRING | |
| 43 | М430508 | SCREW | |
| 44 | А590105 | WASHER, PLANE | |
| 45 | А590905 | WASHER, SPRING | |
| 47 | 9067007 | UNIT CONTROL | |
| 48 | М430610 | SCREW | |
| 49 | А590906 | WASHER, SPRING | |
| 50 | 4146754 | RUBBER | |
| 51 | 4152940 | RELAY, HOURMETER | |
| 52 | М430513 | SCREW | |
| 53 | А590905 | WASHER, SPRING | |
| 66 | 4189180 | TIMER | |
| 67 | Н430610 | SCREW | |
| 68 | А590906 | WASHER, SPRING | |
| 69 | 4205029 | RELAY | |
| 70 | М430610 | SCREW | |
| 71 | А590906 | WASHER, SPRING | |
| 72 | 4205179 | BRACKET | |
| 73 | М430610 | SCREW | |
| 74 | А590906 | WASHER, SPRING | |
| 75 | J950010 | NUT | |
| 76 | А590910 | WASHER, SPRING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
