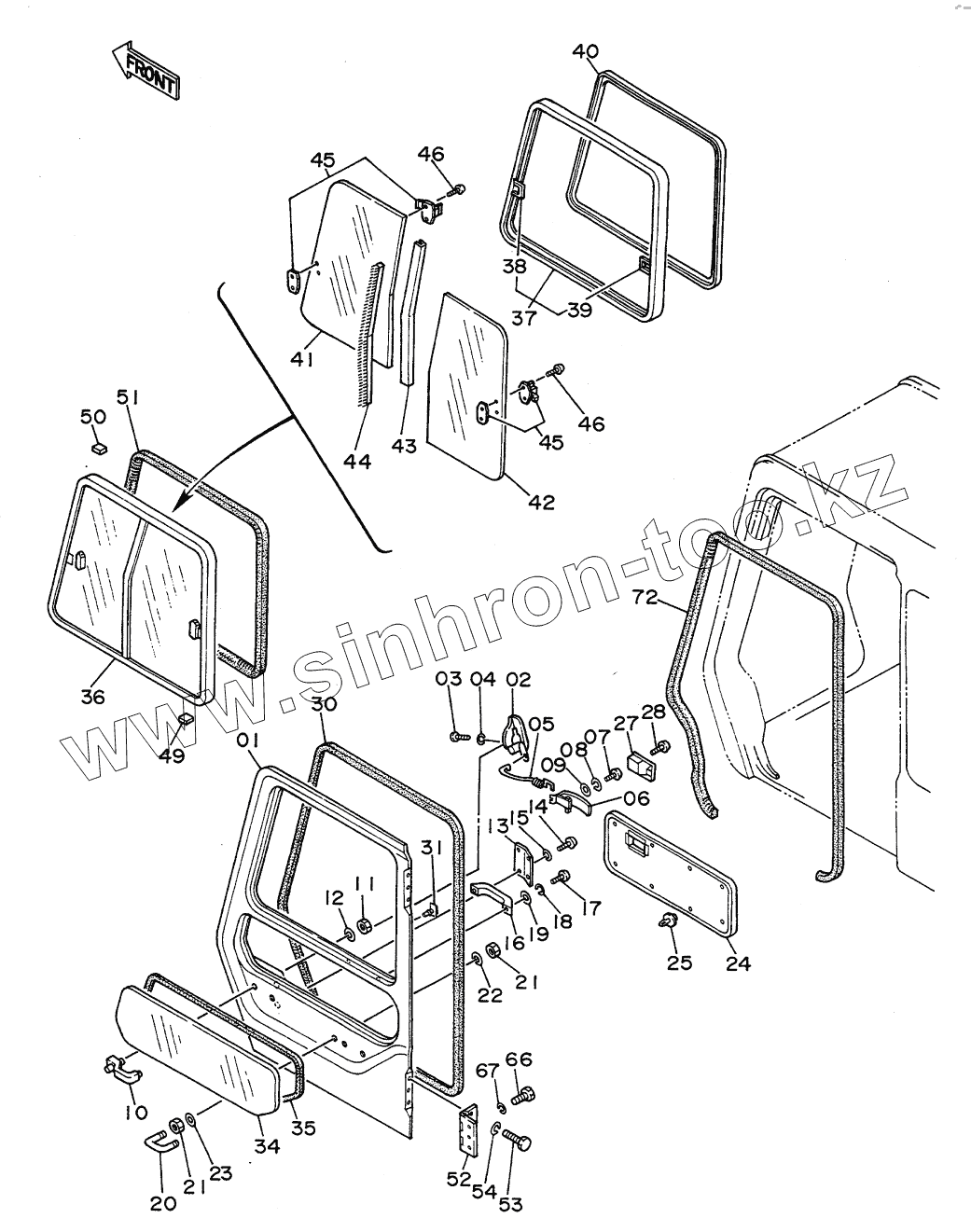

Каталог запасных частей к технике: Hitachi EX-200. CAB (5) <DX>
4208950
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
23
24
25
27
28
30
31
34
35
36
37
38
39
40
41
42
43
44
44
45
45
46
46
49
50
51
52
53
54
66
67
72
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4208950 | 4208950 | DOOR ASSY | |
| 1 | 4211179 | DOOR | |
| 2 | 4128454 | LOCK, DOOR | |
| 3 | М430616 | SCREW | |
| 4 | А590906 | WASHER, SPRING | |
| 5 | 4204613 | ROD | |
| 6 | 4204614 | LEVER | |
| 7 | М430616 | SCREW | |
| 8 | А590906 | WASHER, SPRING | |
| 9 | А590106 | WASHER, PLANE | |
| 10 | 4204615 | HANDLE, OUTER | |
| 11 | М500807 | NUT | |
| 12 | А590908 | WASHER, SPRING | |
| 13 | 4204616 | COVER | |
| 14 | М430510 | SCREW | |
| 15 | А590905 | WASHER, SPRING | |
| 16 | 4204579 | HANDLE | |
| 17 | М430616 | SCREW | |
| 18 | А590906 | WASHER, SPRING | |
| 19 | А590106 | WASHER, PLANE | |
| 20 | 4204617 | BOLT, U | |
| 21 | 4208104 | NUT | |
| 22 | А590910 | WASHER, SPRING | |
| 23 | 4208105 | WASHER, PLANE | |
| 24 | 4204618 | TRIM, PAD | |
| 25 | 4204607 | CLIP | |
| 27 | 4204619 | COVER | |
| 28 | M430408 | SCREW | |
| 30 | 4204620 | WEATHER STRIP | |
| 31 | 4204621 | CLIP | |
| 34 | 4204624 | GLASS | |
| 35 | 4204625 | RUBBER, Z | |
| 36 | 4204626 | WINDOW ASSY | |
| 37 | 4204627 | SASH | |
| 38 | 4147943 | CATCH | |
| 39 | 4147893 | CATCH | |
| 40 | 4204628 | GLASS RUN | |
| 41 | 4204629 | GLASS | |
| 42 | 4204630 | GLASS | |
| 43 | 4204631 | SASH | |
| 44 | 4204632 | WEATHER STRIP | |
| 44 | 4231413 | WEATHER STRIP | |
| 45 | 4141713 | LOCK | |
| 46 | 4219753 | SCREW | |
| 49 | 4147896 | SPACER | |
| 50 | 4204567 | SPACER | |
| 51 | 4147942 | WELT | |
| 52 | 4204633 | HINGE | |
| 53 | J901025 | BOLT | |
| 54 | А590910 | WASHER, SPRING | |
| 66 | J901025 | BOLT | |
| 67 | А590910 | WASHER, SPRING | |
| 72 | 4204585 | WELT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
