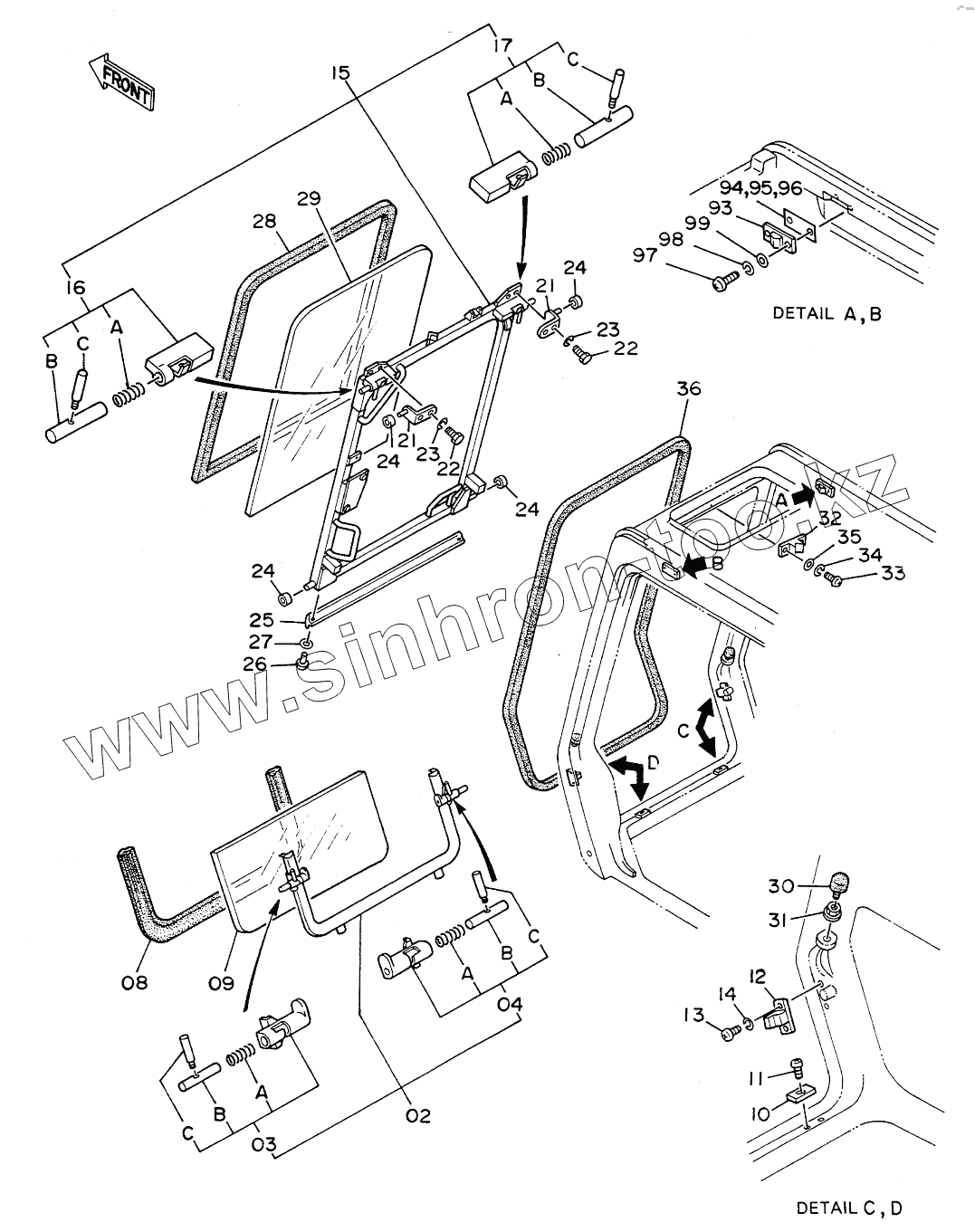

Каталог запасных частей к технике: Hitachi EX-200. CAB (2)
02
03
03A
03B
03C
04
04A
04B
04C
08
09
10
11
12
13
14
15
16
16A
16B
16C
17
17A
17B
17C
21
21
22
22
23
23
24
24
24
24
25
26
27
28
29
30
31
32
33
34
35
36
93
94
95
96
97
98
99
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 02 | 4204543 | FRAME | |
| 03 | 4204544 | LOCK, L | |
| 03A | 4204546 | SPRING | |
| 03B | 4204547 | PIN | |
| 03C | 4204548 | LEVER | |
| 04 | 4204545 | LOCK, R | |
| 04A | 4204546 | SPRING | |
| 04B | 4204547 | PIN | |
| 04C | 4204548 | LEVER | |
| 08 | 4204549 | RUBBER, Z | |
| 09 | 4204550 | GLASS | |
| 10 | 4204551 | RUBBER | |
| 11 | N470616 | SCREW | |
| 12 | 4204552 | STOPPER | |
| 13 | J850614 | SCREW | |
| 14 | J251006 | WASHER, SPRING | |
| 15 | 4204553 | FRAME | |
| 16 | 4204554 | LOCK, L | |
| 16A | 494918 | SPRING A | |
| 16B | 4204556 | PIN | |
| 16C | 4204548 | LEVER | |
| 17 | 4204555 | LOCK, R | |
| 17A | 494918 | SPRING A | |
| 17B | 4204556 | PIN | |
| 17C | 4204548 | LEVER | |
| 21 | 4204557 | BRACKET | |
| 22 | J900820 | BOLT | |
| 23 | А590908 | WASHER, SPRING | |
| 24 | 4204558 | ROLLER | |
| 25 | 4204559 | RUBBER | |
| 26 | 4138159 | SCREW | |
| 27 | А590103 | WASHER | |
| 28 | 4204560 | RUBBER, H | |
| 29 | 4204561 | GLASS | |
| 30 | 4204562 | STOPPER | |
| 31 | 4204563 | NUT | |
| 32 | 4204564 | STOPPER | |
| 33 | J850816 | SCREW | |
| 34 | J251008 | WASHER, SPRING | |
| 35 | J250008 | WASHER, PLANE | |
| 36 | 4204565 | RUBBER | |
| 93 | 4204595 | STOPPER | |
| 94 | 4204596 | SHIM 1.0 | |
| 95 | 4204597 | SHIM 1.2 | |
| 96 | 4204598 | SHIM 1.6 | |
| 97 | J850816 | SCREW | |
| 98 | J251008 | WASHER, SPRING | |
| 99 | J250008 | WASHER, PLANE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
