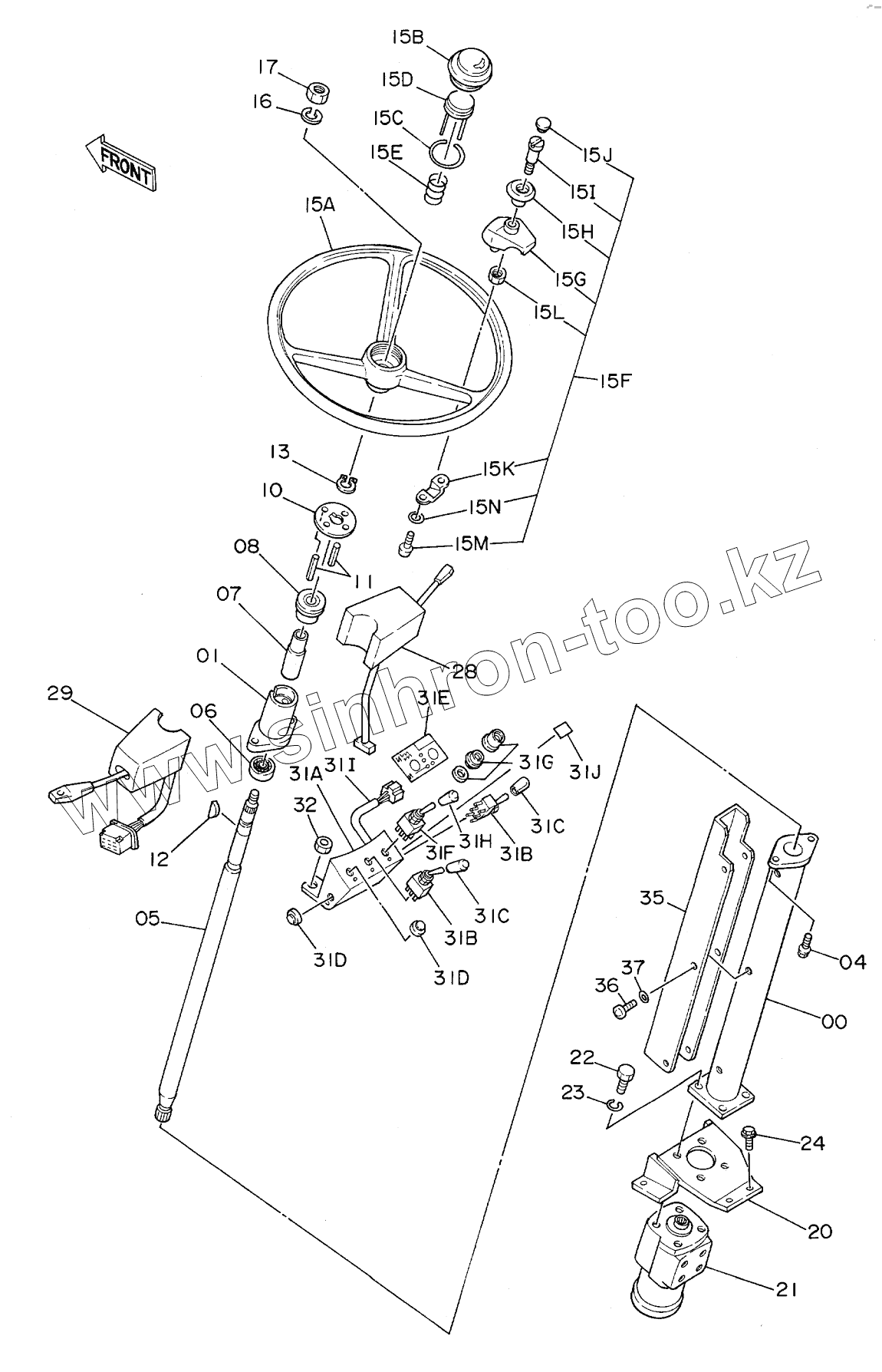

Каталог запасных частей к технике: Hitachi EX-160WD. STEERING
00
01
04
05
06
07
08
10
11
12
13
4087213
15A
15B
15C
15D
15E
15F
15G
15H
15I
15J
15K
15L
15M
15N
16
17
20
21
22
23
24
28
29
9083806
31A
31B
31B
31C
31C
31D
31D
31E
31F
31G
31H
31I
31J
32
35
36
37
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 7013132 | COLUMN | |
| 01 | 8027180 | COLUMN | |
| 04 | J011040 | BOLT, SEMS | |
| 05 | 3027142 | SHAFT | |
| 06 | 988307 | BRG., BALL | |
| 07 | 4148007 | SPACER | |
| 08 | 4098806 | BUSHING | |
| 10 | 3027143 | RETAINER | |
| 11 | 962358 | PIN, SPRING | |
| 12 | 94-2501 | KEY, WOODRUFF | |
| 13 | 959500 | RING, RETAINING | |
| 4087213 | 4087213 | WHEEL | |
| 15A | 4107339 | WHEEL | |
| 15B | 4107340 | BUTTON, HORN | |
| 15C | 4107341 | LOCK, SPRING | |
| 15D | 4107342 | CUP | |
| 15E | 4107343 | SPRING | |
| 15F | 4107344 | GRIP ASSY | |
| 15G | 4107345 | STAND | |
| 15H | 4107346 | GRIP | |
| 15I | 4107347 | BOLT | |
| 15J | 4107348 | COVER | |
| 15K | 4107349 | PLATE | |
| 15L | M581008 | NUT | |
| 15M | M430625 | SCREW | |
| 15N | A590906 | WASHER, SPRING | |
| 16 | A590912 | WASHER, SPRING | |
| 17 | J950012 | NUT | |
| 20 | 8040577 | BRACKET | |
| 21 | 4149140 | VALVE, STEERING | |
| 22 | 19H1732 | BOLT | |
| 23 | J21383 | WASHER, SPRING | |
| 24 | J011025 | BOLT, SEMS | |
| 28 | 4149143 | SWITCH | |
| 29 | 4149144 | SWITCH, WIPER | |
| 9083806 | 9083806 | BOX, SWITCH ASSY | |
| 31A | 7020392 | PANEL | |
| 31B | 4132280 | SWITCH | |
| 31C | 4042098 | CAP | |
| 31D | 4146754 | RUBBER | |
| 31E | 4192961 | NAME-PLATE | |
| 31F | 4193215 | SWITCH | |
| 31G | 4192962 | CAP | |
| 31H | 4192963 | CAP | |
| 31I | 4232036 | HARNESS, NIRE | |
| 31J | 4163682 | NAME-PLATE | |
| 32 | J950010 | NUT | |
| 35 | 3031908 | COVER | |
| 36 | M430610 | SCREW | |
| 37 | A590106 | WASHER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
