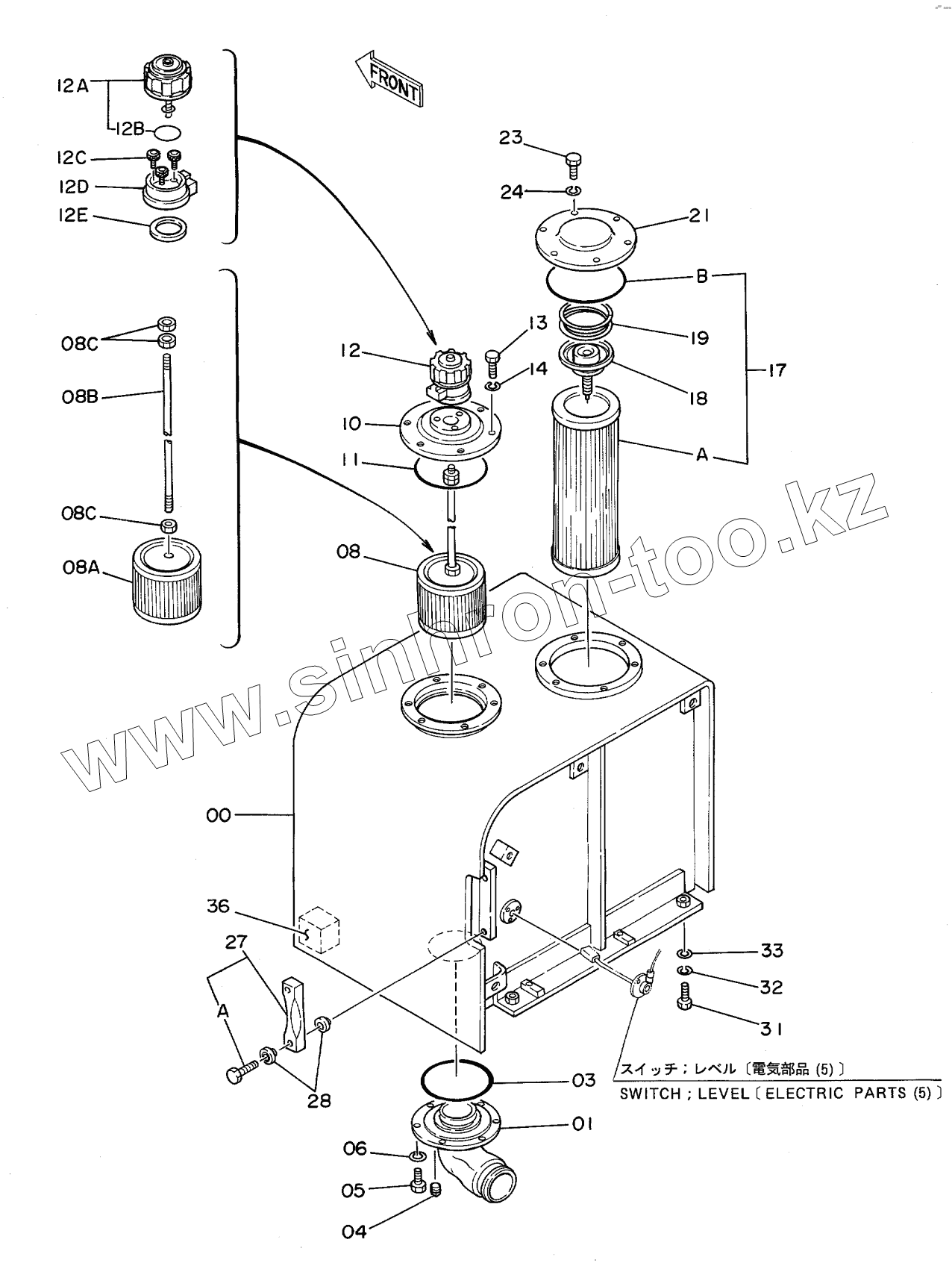

Каталог запасных частей к технике: Hitachi EX-160WD. OIL TANK
00
01
03
04
05
06
08
08A
08B
08C
08C
10
11
12
12A
12B
12C
12D
12E
13
14
17
17A
17B
18
19
19
21
23
24
27
27
27A
28
31
32
33
36
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 5002150 | TANK, OIL | |
| 01 | 2027348 | PIPE, SUCTION | |
| 03 | A810160 | O-RING | |
| 04 | 94-2011 | PLUG | |
| 05 | M111028 | BOLT | |
| 06 | A590910 | WASHER, SPRING | |
| 08 | 4199012 | FILTER, SUCTION | |
| 08A | 4210224 | STRAINER | |
| 08B | 4211107 | ROD | |
| 08C | J950010 | NUT | |
| 10 | 8037809 | COVER | |
| 11 | A810160 | O-RING | |
| 12 | 4178684 | breather, air | |
| 12A | 4222874 | FILTER | |
| 12B | 953612 | O-RING | |
| 12C | M340516 | bolt, socket | |
| 12D | 4222875 | CASE | |
| 12E | 4222876 | PACKING | |
| 13 | M111022 | BOLT | |
| 14 | A590910 | WASHER, SPRING | |
| 17 | 4206705 | ELEMENT, FILTER ASSY | |
| 17A | 4180416 | ELEMENT, FILTER | |
| 17B | A810190 | O-RING | |
| 18 | 4180414 | VALVE | |
| 19 | 4050732 | SPRING | |
| 19 | 4226549 | SPRING | |
| 21 | 4204057 | COVER | |
| 23 | J901018 | BOLT | |
| 24 | A590910 | WASHER, SPRING | |
| 27 | 8038196 | GAUGE, LEVEL | |
| 27 | 8053499 | GAUGE, LEVEL | |
| 27A | 4100967 | BOLT | |
| 28 | 449558 | WASHER, SEAL | |
| 31 | J901645 | BOLT | |
| 32 | A590916 | WASHER, SPRING | |
| 33 | 4114405 | WASHER | |
| 36 | 4204699 | RUBBER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
