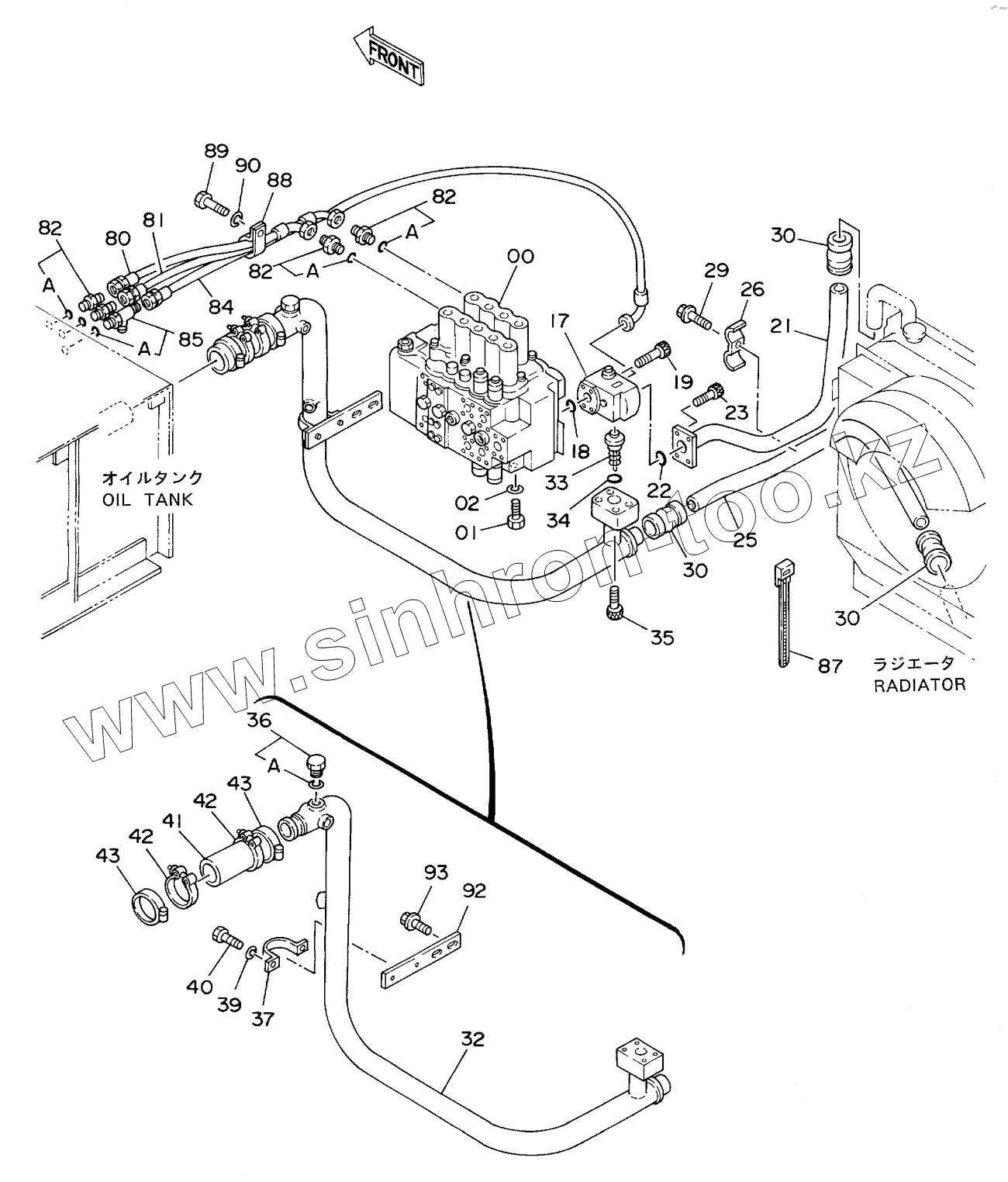

Каталог запасных частей к технике: Hitachi EX-160WD. OIL COOLER PIPINGS (2)
00
01
02
17
18
19
21
22
23
25
26
29
30
30
30
32
33
34
35
36
36A
37
39
40
41
42
42
42
42
43
43
80
81
82
82
82
82A
82A
82A
84
85
85A
87
88
89
90
92
93
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 4213256 | VALVE, CONTROL | |
| 01 | J901635 | BOLT | |
| 02 | A590916 | WASHER, SPRING | |
| 17 | 4213255 | VALVE, RESTRICTION | |
| 18 | A811040 | O-RING | |
| 19 | M341002 | BOLT, SOCKET | |
| 21 | 8040408 | PIPE, RETURN | |
| 22 | A811040 | O-RING | |
| 23 | M341036 | BOLT, SOCKET | |
| 25 | 3040300 | PIPE, RETURN | |
| 26 | 4053696 | CLAMP | |
| 29 | J011270 | BOLT, SEMS | |
| 30 | 4069801 | COUPLING | |
| 32 | 7019045 | PIPE, RETURN | |
| 33 | 4204745 | VALVE | |
| 34 | A811045 | O-RING | |
| 35 | M341060 | BOLT, SOCKET | |
| 36 | 4113926 | PLUG | |
| 36A | 4506429 | O-RING | |
| 37 | 4053865 | CLAMP, PIPE | |
| 39 | A590910 | WASHER, SPRING | |
| 40 | J901018 | BOLT | |
| 41 | 4094001 | HOSE, RUBBER | |
| 42 | 4156850 | CLAMP, HOSE | |
| 42 | 4263764 | CLAMP, HOSE | |
| 43 | 4504491 | CLAMP, HOSE | |
| 80 | 4213822 | HOSE, NYLON | |
| 81 | 4213823 | HOSE, NYLON | |
| 82 | 4200465 | ADAPTER, S | |
| 82A | 957366 | O-RING | |
| 84 | 4213824 | HOSE, NYLON | |
| 85 | 4205363 | TEE | |
| 85A | 4509180 | O-RING | |
| 87 | 4055311 | CLIP, BAND | |
| 88 | 4192035 | CLIP | |
| 89 | J901018 | BOLT | |
| 90 | A590910 | WASHER, SPRING | |
| 92 | 4218890 | SUPPORT | |
| 93 | J021235 | BOLT, SEMS |
