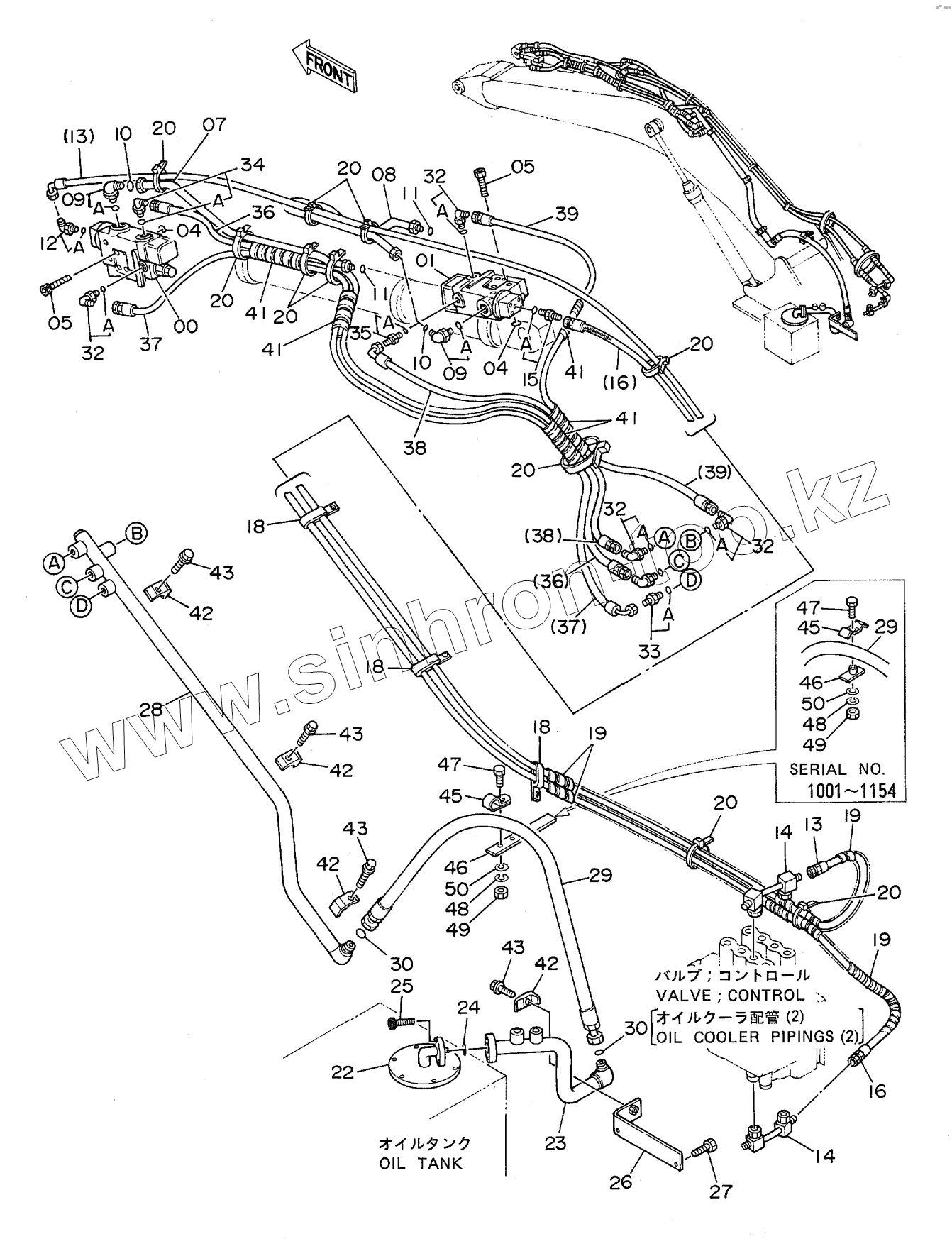

Каталог запасных частей к технике: Hitachi EX-160WD. HOSE RUPTURE VALVE PIPINGS (ARM)
00
01
04
04
05
05
07
08
09
09
09A
09A
10
10
11
11
12
12A
13
13
14
14
15
15A
16
16
18
18
18
19
19
19
20
20
20
20
20
20
20
20
22
23
24
25
26
27
28
29
29
30
30
32
32
32
32
32A
32A
32A
32A
33
33A
34
34A
35
35A
36
36
37
37
38
38
39
39
41
41
41
41
42
42
42
42
43
43
43
43
45
45
45
45
46
46
46
47
47
47
48
48
48
49
49
49
50
50
50
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 4206538 | VALVE, HOLDING | |
| 01 | 4230192 | VALVE, HOLDING | |
| 04 | A811030 | O-RING | |
| 05 | M341085 | BOLT, SOCKET | |
| 07 | 8044116 | PIPE | |
| 08 | 7020675 | PIPE | |
| 09 | 4198799 | ELBOW | |
| 09A | 4506429 | O-RING | |
| 10 | 4187328 | O-RING | |
| 11 | 4187308 | O-RING | |
| 12 | 4154671 | ELBOW | |
| 12A | 4509180 | O-RING | |
| 13 | 4252858 | HOSE | |
| 14 | 8039468 | PIPE | |
| 15 | 4200466 | ADAPTER, S | |
| 15A | 4509180 | O-RING | |
| 16 | 4252864 | HOSE | |
| 18 | 4190292 | CLIP | |
| 19 | 4133527 | PROTECTOR | |
| 20 | 4055312 | CLIP, BAND | |
| 22 | 8047033 | COVER | |
| 23 | 8046980 | PIPE | |
| 24 | A811035 | O-RING | |
| 25 | M341240 | BOLT, SOCKET | |
| 26 | 9734115 | BRACKET | |
| 27 | J901230 | BOLT | |
| 28 | 8046981 | PIPE | |
| 29 | 4252863 | HOSE | |
| 30 | 4187328 | O-RING | |
| 32 | 4154672 | ELBOW | |
| 32A | 4506418 | O-RING | |
| 33 | 4210361 | ADAPTER, S | |
| 33A | 4506418 | O-RING | |
| 34 | 4219345 | ELBOW, S | |
| 34A | 4509180 | O-RING | |
| 35 | 4221290 | ADAPTER, S | |
| 35A | 4509180 | O-RING | |
| 36 | 4252861 | HOSE | |
| 37 | 4252862 | HOSE | |
| 38 | 4252859 | HOSE | |
| 39 | 4252860 | HOSE | |
| 41 | 4044420 | PROTECTOR | |
| 42 | 4190127 | CLAMP, PIPE | |
| 43 | J011260 | BOLT, SEMS | |
| 45 | 4202103 | CLAMP | |
| 45 | 4190291 | CLIP | |
| 46 | 9727633 | CLAMP | |
| 46 | 4265813 | PLATE | |
| 47 | J901250 | BOLT | |
| 47 | J901025 | BOLT | |
| 48 | A590912 | WASHER, SPRING | |
| 48 | A590910 | WASHER, SPRING | |
| 49 | J950012 | NUT | |
| 49 | J950010 | NUT | |
| 50 | A590112 | WASHER, PLANE | |
| 50 | A590110 | WASHER, PLANE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
