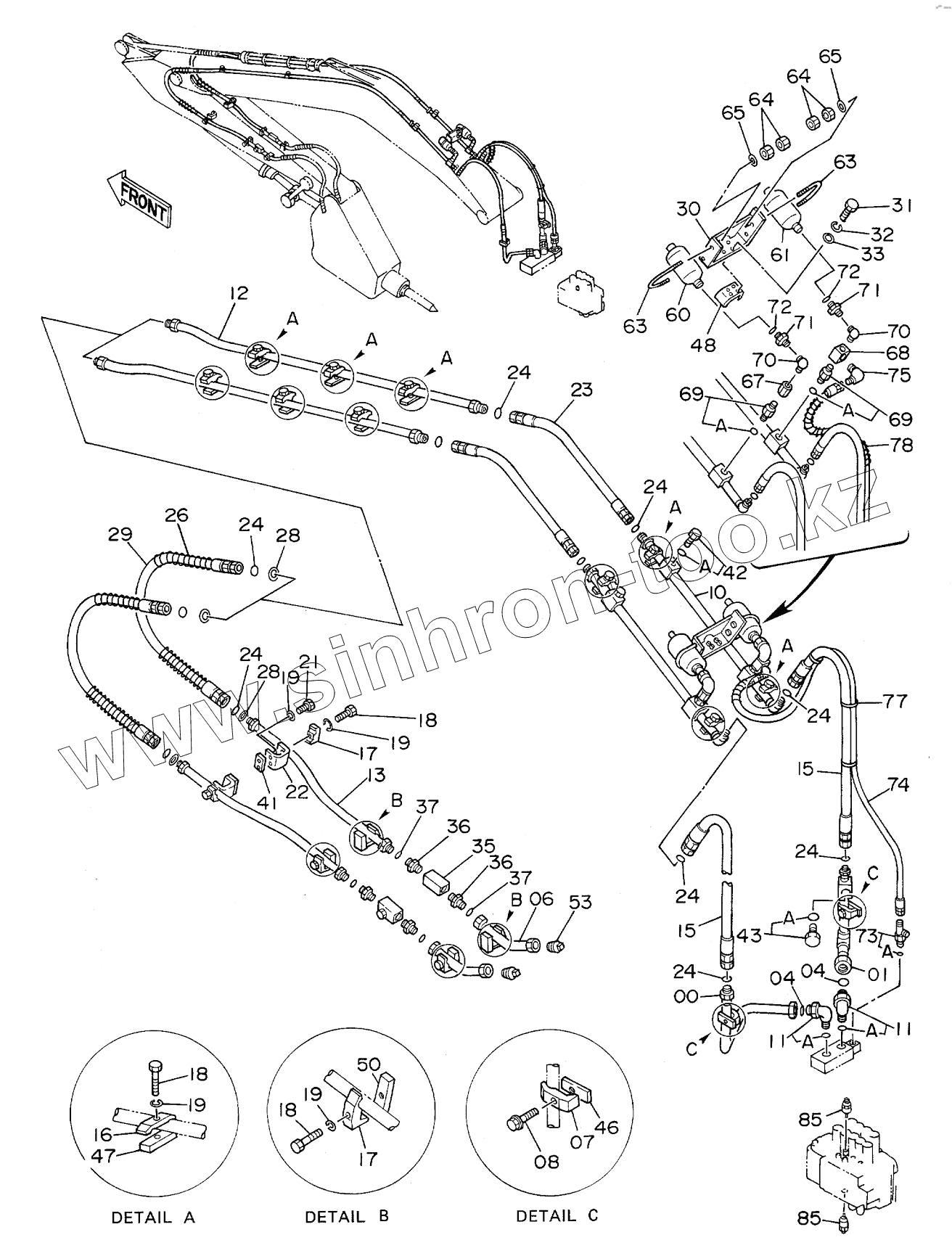

Каталог запасных частей к технике: Hitachi EX-160WD. FRONT PIPINGS FOR NPK BREAKER & CRASHER
00
01
04
04
06
07
08
10
11
11
11A
11A
12
13
15
15
16
17
17
18
18
18
19
19
19
19
21
22
23
24
24
24
24
24
24
24
24
26
28
28
29
30
31
32
33
35
36
36
37
37
41
42
42A
43
43A
46
47
48
50
53
60
61
63
63
64
64
65
65
67
68
69
69
69A
69A
70
70
71
71
71
71
72
72
73
73A
74
75
77
78
85
85
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 9730352 | PIPE | |
| 01 | 9730353 | PIPE | |
| 04 | 4187329 | O-RING | |
| 06 | 9729527 | PIPE | |
| 07 | 4190127 | CLAMP, PIPE | |
| 08 | J011265 | BOLT, SEMS | |
| 10 | 9728548 | PIPE | |
| 11 | 4221259 | ELBOW, S | |
| 11A | 4506424 | O-RING | |
| 12 | 9729951 | PIPE | |
| 13 | 9728452 | PIPE | |
| 15 | 4193889 | HOSE | |
| 16 | 4153488 | CLAMP, PIPE | |
| 17 | 4190127 | CLAMP, PIPE | |
| 18 | J901265 | BOLT | |
| 19 | A590912 | WASHER, SPRING | |
| 21 | J901230 | BOLT | |
| 22 | 4217137 | BRACKET | |
| 23 | 4216411 | HOSE | |
| 24 | 4187328 | O-RING | |
| 26 | 4053619 | PROTECTOR | |
| 28 | 4208245 | WASHER | |
| 29 | 4239703 | HOSE | |
| 30 | 8041521 | BRACKET | |
| 31 | J901230 | BOLT | |
| 32 | A590912 | WASHER, SPRING | |
| 33 | A590112 | WASHER, PLANE | |
| 35 | 4205903 | VALVE, STOP | |
| 36 | 4208097 | ADAPTER, S | |
| 37 | 4187329 | O-RING | |
| 41 | 4218287 | SEAT, SCREW | |
| 42 | 4174542 | PLUG | |
| 42A | 4506424 | O-RING | |
| 43 | 4113926 | PLUG | |
| 43A | 4506429 | O-RING | |
| 46 | 4137298 | SEAT, SCREW | |
| 47 | 4137298 | SEAT, SCREW | |
| 48 | 4208962 | SEAT, SCREW | |
| 50 | 4189579 | SEAT, SCREW | |
| 53 | 94-2026 | PLUG | |
| 60 | 4206666 | ACCUMULATOR | |
| 61 | 4206668 | ACCUMULATOR | |
| 63 | 4208961 | BOLT | |
| 64 | J950012 | NUT | |
| 65 | A590112 | WASHER, PLANE | |
| 67 | 94-0678 | SOCKET, S | |
| 68 | 4206361 | VALVE, STOP | |
| 69 | 4208243 | ADAPTERS | |
| 69A | 4506424 | O-RING | |
| 70 | 94-0633 | ELBOW, S | |
| 71 | 4162812 | ADAPTER | |
| 71 | 4208244 | ADAPTER, S | |
| 72 | 4509181 | O-RING | |
| 73 | 4239712 | TEE, S | |
| 73A | 957366 | O-RING | |
| 74 | 4258888 | HOSE | |
| 75 | 4154656 | ELBOW, S | |
| 77 | 4055312 | CLIP, BAND | |
| 78 | 4133527 | PROTECTOR | |
| 85 | 4211143 | VALVE, RELIEF |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
