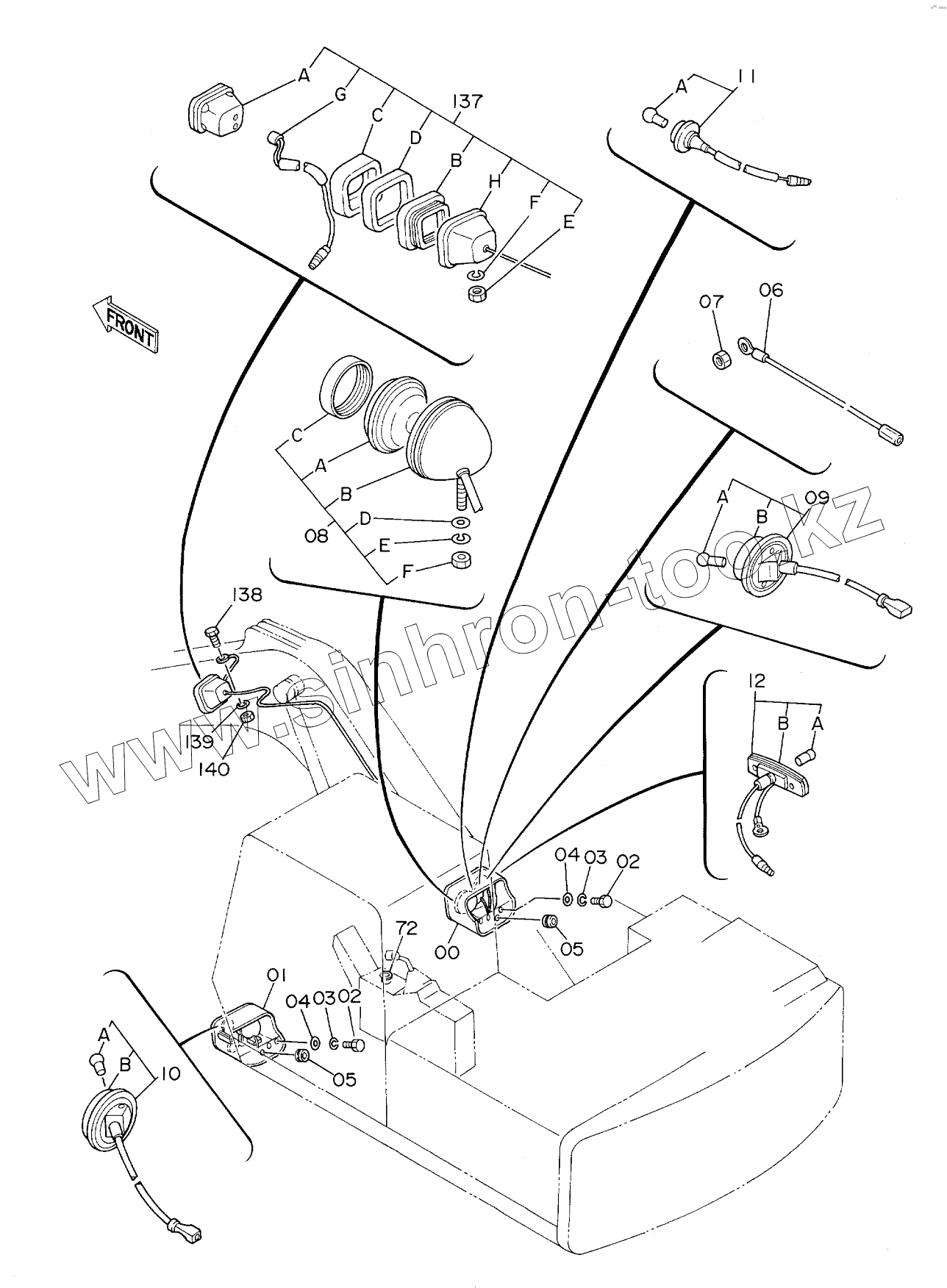

Каталог запасных частей к технике: Hitachi EX-160WD. ELECTRIC PARTS (4)
00
01
02
02
03
03
04
04
05
05
06
07
08
08A
08B
08C
08D
08E
08F
09
09A
09B
10
10A
10B
11
11A
12
12A
12B
72
137
137A
137B
137C
137D
137E
137F
137G
137H
138
139
140
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 6008836 | BRACKET | |
| 01 | 6008837 | BRACKET CD | |
| 02 | J901230 | BOLT | |
| 03 | A590912 | WASHER, SPRING | |
| 04 | A590112 | WASHER, PLANE | |
| 05 | 965958 | BUSHING | |
| 06 | 4223772 | HARNESS, WIRE | |
| 07 | M500605 | NUT | |
| 08 | 973472 | LAMP | |
| 08A | 4107350 | BULB | |
| 08B | 4123647 | HOUSING | |
| 08C | 4163452 | BAND | |
| 08D | A590114 | WASHER | |
| 08E | A590914 | WASHER, SPRING | |
| 08F | M501411 | NUT | |
| 09 | 4123645 | LAMP | |
| 09A | 4174814 | BULB | |
| 09B | 4182178 | LENS | |
| 10 | 4123644 | LAMP | |
| 10A | 4174814 | BULB | |
| 10B | 4182178 | LENS | |
| 11 | 4123422 | LAMP | |
| 11A | 4174815 | BULB | |
| 12 | 4174253 | LAMP | |
| 12A | 4174816 | BULB | |
| 12B | 4182179 | LENS | |
| 72 | 4149256 | METER, TACHO | |
| 137 | 4189254 | LAMP, HEAD ASSY | |
| 137A | 4163596 | LAMP | |
| 137B | 4208956 | NAME-PLATE | |
| 137C | 4208957 | BAND | |
| 137D | 4208958 | BAND | |
| 137E | M501411 | NUT | |
| 137F | A590914 | WASHER, SPRING | |
| 137G | 4253033 | HARNESS | |
| 137H | 4253032 | HOUSING | |
| 138 | M430613 | SCREW | |
| 139 | A590906 | WASHER, SPRING | |
| 140 | M500605 | NUT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
