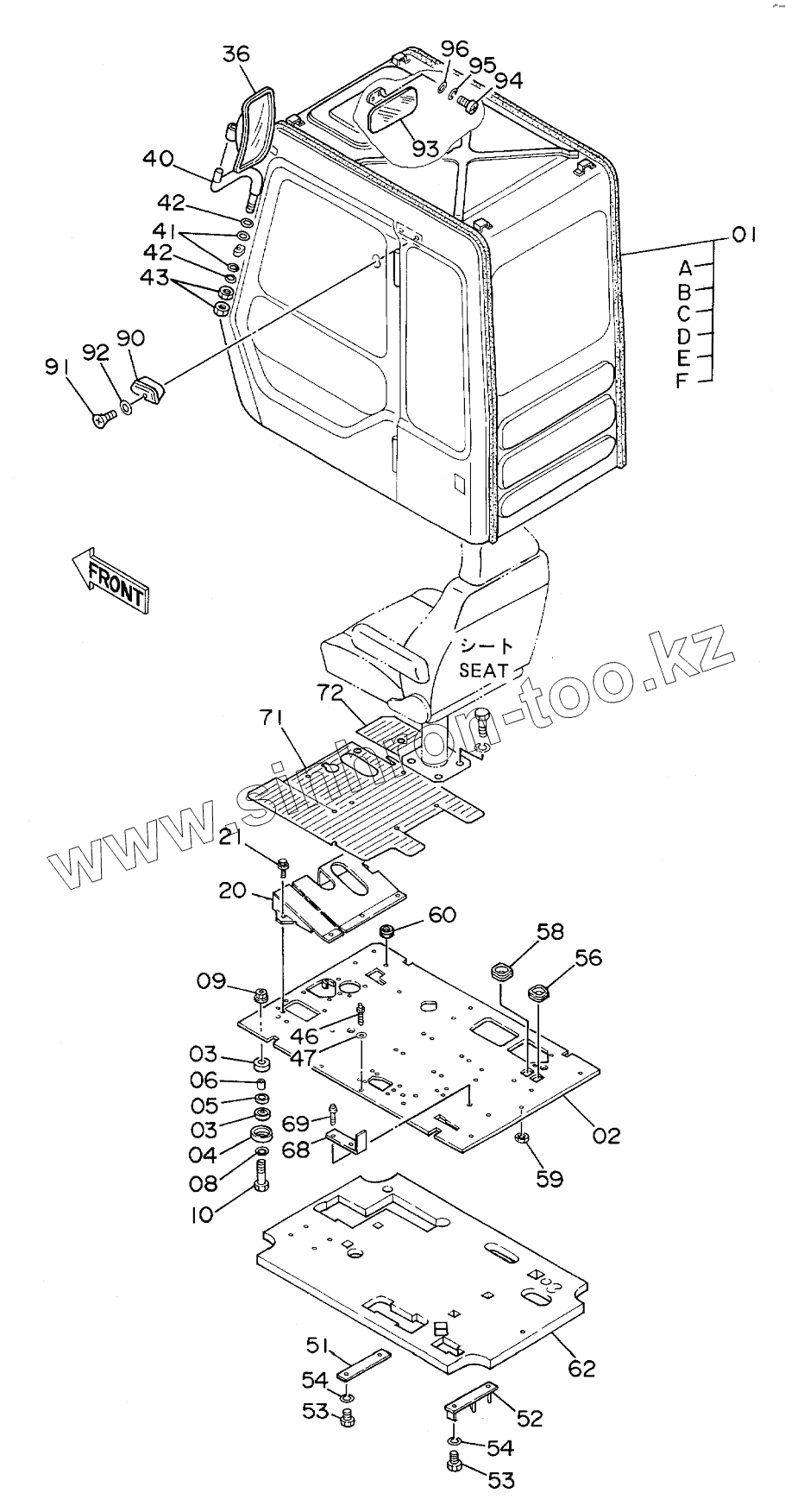

Каталог запасных частей к технике: Hitachi EX-160WD. CAB GROUP
01
01A
01B
01C
01D
01E
01F
02
03
03
04
05
06
08
09
10
20
21
36
40
41
42
42
43
46
47
51
52
53
53
54
54
56
58
59
60
62
68
69
71
72
90
91
92
93
94
95
96
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 01 | 4191692 | CAB ASSY | |
| 01A | CAB | CAB | |
| 01B | CAB | CAB | |
| 01C | CAB | CAB | |
| 01D | CAB | CAB | |
| 01E | CAB | CAB | |
| 01F | CAB | CAB | |
| 02 | 6009241 | PLATE | |
| 03 | 4203877 | RUBBER | |
| 04 | 4203878 | STOPPER | |
| 05 | 4200085 | RUBBER | |
| 06 | 4200086 | SPACER | |
| 08 | 4114405 | WASHER | |
| 09 | M660016 | NUT, U | |
| 10 | 4203189 | BOLT | |
| 20 | 7019628 | BRACKET | |
| 21 | J011025 | BOLT, SEMS | |
| 36 | 4165676 | MIRROR | |
| 40 | 3039640 | STAY | |
| 41 | 4172172 | SPRING, DISC | |
| 42 | A590112 | WASHER, PLANE | |
| 43 | J950012 | NUT | |
| 46 | J011030 | BOLT, SEMS | |
| 47 | 4114402 | WASHER | |
| 51 | 4204646 | PLATE | |
| 52 | 9729073 | PLATE | |
| 53 | J901025 | BOLT | |
| 54 | A590910 | WASHER, SPRING | |
| 56 | 4205080 | BUSHING, RUBBER | |
| 58 | 4205082 | BUSHING, RUBBER | |
| 59 | 4205084 | BUSHING, RUBBER | |
| 60 | 4196453 | BUSHING, RUBBER | |
| 62 | 2025648 | GLASSWOOL | |
| 68 | 4215494 | BRACKET | |
| 69 | J021025 | BOLT, SEMS | |
| 71 | 2027806 | MAT, FLOOR | |
| 72 | 4241448 | MAT, FLOOR | |
| 90 | 4146719 | ASHTRAY | |
| 91 | M430510 | SCREW | |
| 92 | A590105 | WASHER, PLANE | |
| 93 | 965452 | MIRROR | |
| 94 | M430616 | SCREW | |
| 95 | A590906 | WASHER, SPRING | |
| 96 | A590106 | WASHER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
