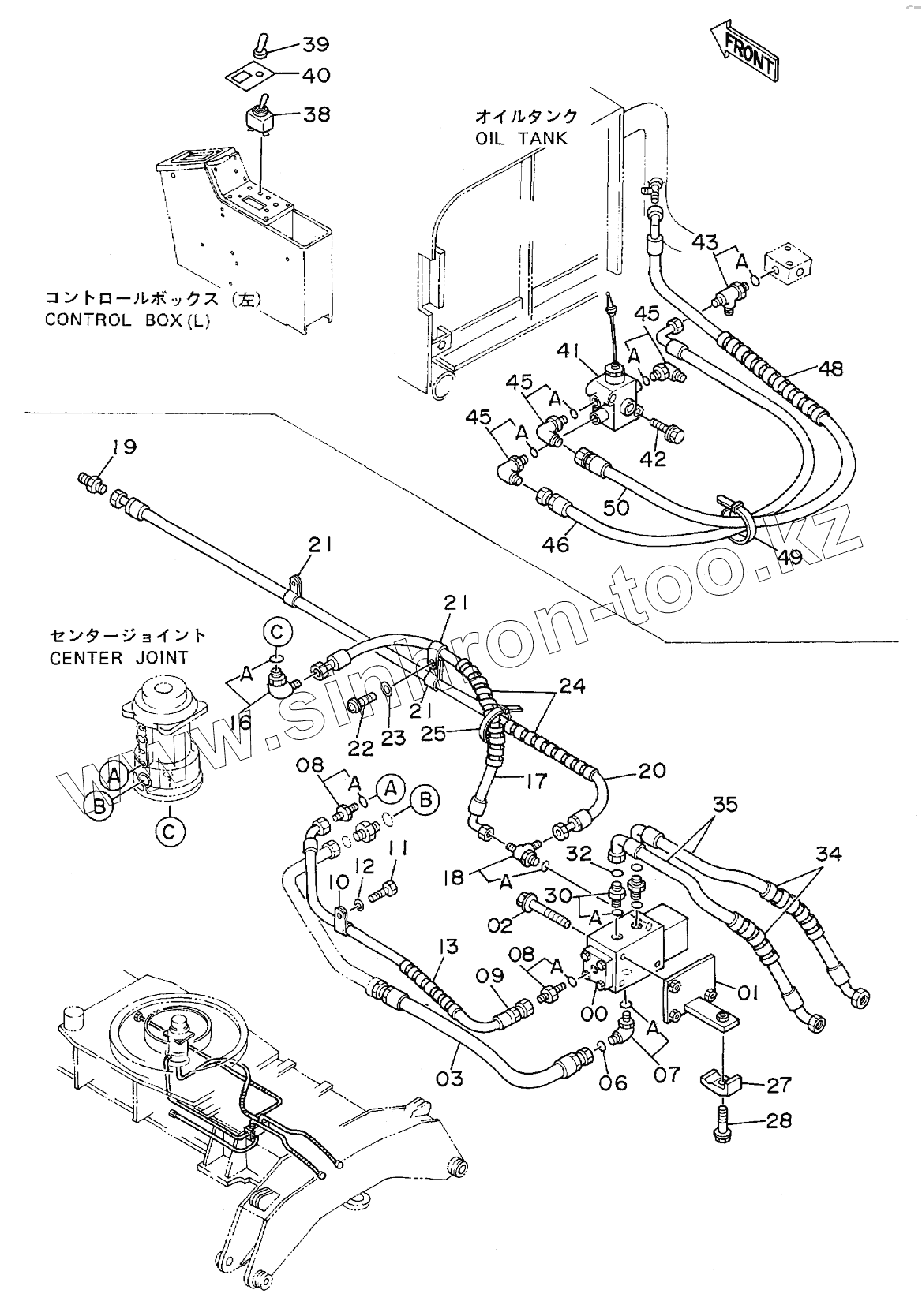

Каталог запасных частей к технике: Hitachi EX-160WD. 2-0/R PIPINGS (LEFT/RIGHT INDEPENDENT)
00
01
02
03
06
07
07A
08
08
08A
08A
09
10
11
12
13
16
16A
17
18
18A
19
20
21
21
21
22
23
24
25
27
28
30
30A
32
34
35
38
39
40
41
42
43
43A
45
45
45
45A
45A
45A
46
48
49
50
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 4223033 | VALVE, CONTROL | |
| 01 | 9732248 | BRACKET | |
| 02 | J011200 | BOLT | |
| 03 | 4242408 | HOSE | |
| 06 | 4187308 | O-RING | |
| 07 | 4157562 | ELBOW, S | |
| 07A | 4506424 | O-RING | |
| 08 | 4200467 | ADAPTER, S | |
| 08A | 957366 | O-RING | |
| 09 | 4207384 | HOSE, NYLON | |
| 10 | 4190253 | CLIP | |
| 11 | J901220 | BOLT | |
| 12 | A590912 | WASHER, SPRING | |
| 13 | 4133527 | PROTECTOR | |
| 16 | 4154671 | ELBOW | |
| 16A | 4509180 | O-RING | |
| 17 | 4213421 | HOSE, NYLON | |
| 18 | 4207300 | TEE, S | |
| 18A | 957366 | O-RING | |
| 19 | 4223393 | ADAPTER, S | |
| 20 | 4207962 | HOSE, NYLON | |
| 21 | 4190253 | CLIP | |
| 22 | J450614 | SCREW, SEMS | |
| 23 | A590108 | WASHER, PLANE | |
| 24 | 4133527 | PROTECTOR | |
| 25 | 4055312 | CLIP, BAND | |
| 27 | 4190126 | CLAMP, PIPE | |
| 28 | J011255 | BOLT, SEMS | |
| 30 | 4188623 | ADAPTER, S | |
| 30A | 4506424 | O-RING | |
| 32 | 4138938 | O-RING | |
| 34 | 4044420 | PROTECTOR | |
| 35 | 4242407 | HOSE | |
| 38 | 4132280 | SWITCH | |
| 39 | 4042098 | CAP | |
| 40 | 4248356 | NAME-PLATE | |
| 41 | 4200389 | VALVE, SOLENOID | |
| 42 | J010865 | BOLT | |
| 43 | 4203171 | TEE, S | |
| 43A | 957366 | O-RING | |
| 45 | 4154670 | ELBOW, S | |
| 45A | 957366 | O-RING | |
| 46 | 4222022 | HOSE, NYLON | |
| 48 | 4133527 | PROTECTOR | |
| 49 | 4055312 | CLIP, BAND | |
| 50 | 4219311 | HOSE, NYLON |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
