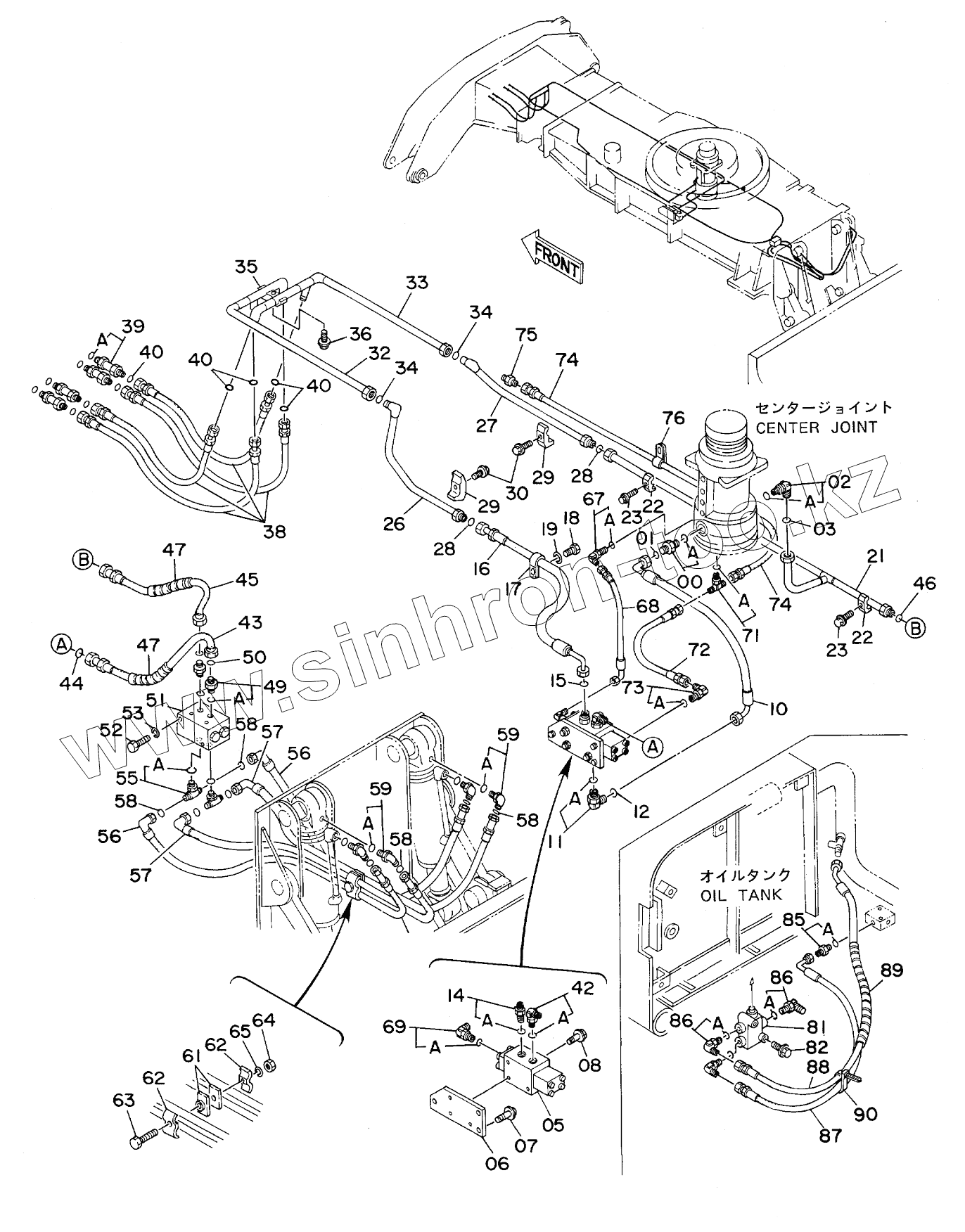

Каталог запасных частей к технике: Hitachi EX-160WD. 2-0/R AND BLADE PIPINGS
00
00A
01
02
02A
03
05
06
07
08
10
11
11A
12
14
14A
15
16
17
18
19
21
22
22
23
23
26
27
28
28
29
29
30
32
33
34
34
35
36
38
39
39A
40
40
40
42
42A
43
44
45
46
47
47
49
49A
50
51
52
53
55
55A
56
56
57
57
58
58
58
58
59
59
59A
59A
61
62
62
63
64
65
67
67A
68
69
69A
71
71
71A
72
73
73A
74
74
75
76
81
82
85
85A
86
86
86A
86A
87
88
89
90
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 4189619 | ADAPTER, S | |
| 00A | 4506424 | O-RING | |
| 01 | 4187308 | O-RING | |
| 02 | 4205391 | ELBOW | |
| 02A | 4506424 | O-RING | |
| 03 | 4J87328 | O-RING | |
| 05 | 4223033 | VALVE, CONTROL | |
| 06 | 4222951 | BRACKET | |
| 07 | J011230 | BOLT, SEMS | |
| 08 | J011285 | BOLT, SEMS | |
| 10 | 4241394 | HOSE | |
| 11 | 4157562 | ELBOW, S | |
| 11A | 4506424 | O-RING | |
| 12 | 4187308 | O-RING | |
| 14 | 4189619 | ADAPTER, S | |
| 14A | 4506424 | O-RING | |
| 15 | 4187308 | O-RING | |
| 16 | 4234339 | HOSE | |
| 17 | 4190264 | CLIP | |
| 18 | J901220 | BOLT | |
| 19 | A590912 | WASHER, SPRING | |
| 21 | 8044973 | PIPE | |
| 22 | 4190126 | CLAMP, PIPE | |
| 23 | J011255 | BOLT, SEMS | |
| 26 | 8043812 | PIPE | |
| 27 | 8043813 | PIPE | |
| 28 | 4187328 | O-RING | |
| 29 | 4190126 | CLAMP, PIPE | |
| 30 | J011255 | BOLT, SEMS | |
| 32 | 8045703 | PIPE | |
| 33 | 8045702 | PIPE | |
| 34 | 4187328 | O-RING | |
| 35 | 4189859 | CLAMP, PIPE | |
| 36 | J011255 | BOLT, SEMS | |
| 38 | 4207380 | HOSE | |
| 39 | 4197531 | ADAPTER, S | |
| 39A | 4506418 | O-RING | |
| 40 | 4138938 | O-RING | |
| 42 | 4157562 | ELBOW, S | |
| 42A | 4506424 | O-RING | |
| 43 | 4229859 | HOSE | |
| 44 | 4187308 | O-RING | |
| 45 | 4229855 | HOSE | |
| 46 | 4187328 | O-RING | |
| 47 | 4044420 | PROTECTOR | |
| 49 | 4189619 | ADAPTER, S | |
| 49A | 4506424 | O-RING | |
| 50 | 4187308 | O-RING | |
| 51 | 4214185 | VALVE, HOLDING | |
| 52 | J901008 | BOLT | |
| 53 | A590910 | WASHER, SPRING | |
| 55 | 4215639 | TEE, S | |
| 55A | 4506424 | O-RING | |
| 56 | 4229835 | HOSE | |
| 57 | 4229834 | HOSE | |
| 58 | 4138938 | O-RING | |
| 59 | 4200580 | ELBOW, S | |
| 59A | 4506418 | O-RING | |
| 61 | 9727634 | CLAMP | |
| 62 | 4202103 | CLAMP | |
| 63 | J901285 | BOLT | |
| 64 | J950012 | NUT | |
| 65 | A590912 | WASHER, SPRING | |
| 67 | 4193826 | ELBOW, S | |
| 67A | 957366 | O-RING | |
| 68 | 4227060 | HOSE, NYLON | |
| 69 | 4154670 | ELBOW, S | |
| 69A | 957366 | O-RING | |
| 71 | 4208472 | TEE S | |
| 71 | 4208911 | TEE, S | |
| 71A | 4509180 | O-RING | |
| 72 | 4222053 | HOSE, NYLON | |
| 73 | 4156434 | ELBOW, S | |
| 73A | 957366 | O-RING | |
| 74 | 4229884 | HOSE, NYLON | |
| 75 | 4223393 | ADAPTER, S | |
| 76 | 4190253 | CLIP | |
| 81 | 4200389 | VALVE, SOLENOID | |
| 82 | J010865 | BOLT | |
| 85 | 4200465 | ADAPTER, S | |
| 85A | 957366 | O-RING | |
| 86 | 4154670 | ELBOW, S | |
| 86A | 957366 | O-RING | |
| 87 | 4222022 | HOSE, NYLON | |
| 88 | 4219311 | HOSE, NYLON | |
| 89 | 4133527 | PROTECTOR | |
| 90 | 4055312 | CLIP, BAND |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
