Pipings For OKADA/FURUKAWA Breaker

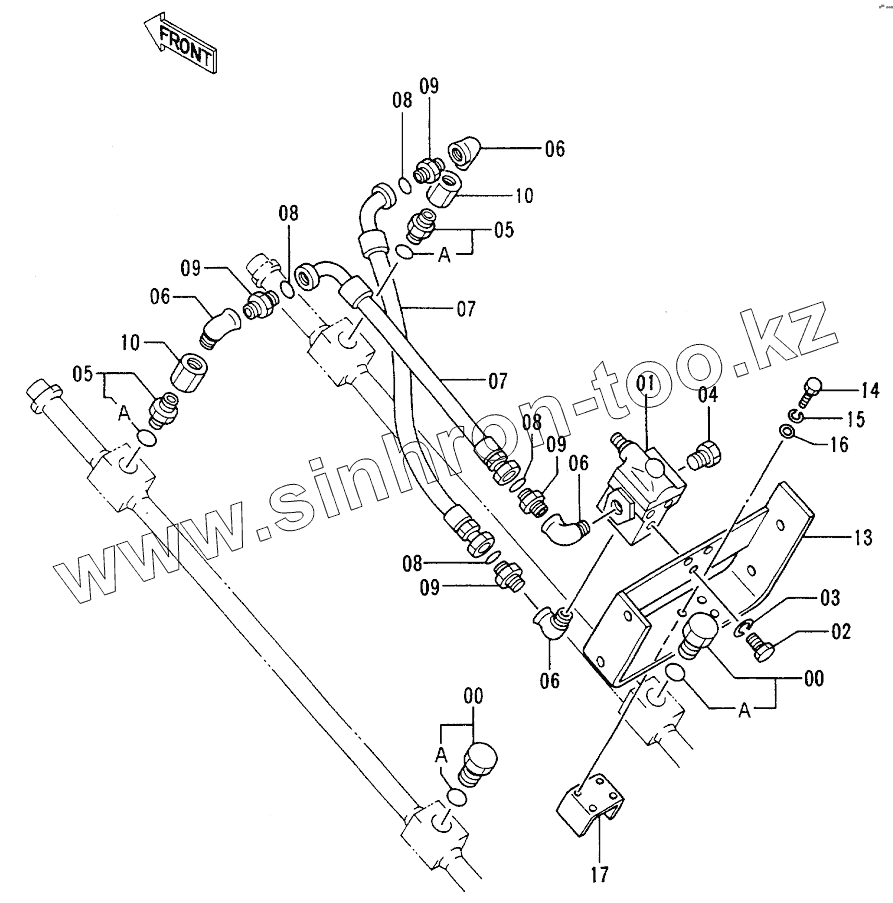

Каталог запасных частей к технике: Hitachi EX-120-2. Pipings For OKADA/FURUKAWA Breaker
zoom-in
zoom-out
enlarge
shrink
circle-right
circle-left
file-text2
info
cart
Тип техники
Не выбрано
Легковые автомобили
Грузовые автомобили и прицепы
Автобусы
Сельхозтехника
Спецтехника
Двигатели
Мототехника
Марка
Не выбрано
Ammann
BOMAG
CARMIX
CASE IH
Changlin
ChengGong
Dimex
Doosan
DYNAPAC
Foton
HAMM
Hidromek
Hitachi
Hyundai
JCB
JLG
John Deere
Komatsu
LIEBHERR
LiuGong
Lonking (LongGong)
Luneng
MANITOU
Mitsuber
New Holland
PENGPU
RM-Terex
SANY
SDLG
SEM
Shantui
Shehwa HBXG
Soosan
TIGARBO
VOGELE
Volvo
WAY
WIRTGEN
XCMG
XGMA
Xiamen
YTO
Yuchai
Zoomlion
Автокран
АЗСМ
Алтайлесмаш
Амкодор
АОМЗ
Атек
АТЗ
Балканкар Рекорд
БелАЗ
Беловеж
Борекс
Брянский Арсенал
Булат
ВЭКС
ГАЗ
Геомаш
Гидромаш
Донекс
Дормаш
Дормашина
Дорэлектромаш
ДЭЗ
ЕлАЗ
ЗЗГТ
Ижнефтемаш
Канаш-электрокар
КЗКТ
ККЗ
Клевер
Клинцовский автокрановый завод
КМЗ
КМЗ 1 Мая
Ковровец
Коммаш
Кранэкс
КЭЗ
КЭМЗ
ЛЗА
МАЗ
МЗИК
МЗКМ
МЗКТ
Михневский РМЗ
МоАЗ
Мозырский МЗ
МТЗ
ОЗП
Онежец
ПАО "ТЗА"
ППС Детва
Промтрактор
ПТЗ
Раскат
СпецАгрегат
ТВЭКС
ТТМ
УВЗ
Угличмаш
УЗТМ
ХТЗ
ЧЗКМ
ЧСДМ
ЧТЗ
ЭКСКО
ЭКСМАШ
ЮрМаш
Модель
Не выбрано
EX-100-2 (2000)
EX-100-3 (2008)
EX-100WD (2008)
EX-120 (2008)
EX-120-2 (2008)
EX-160WD (2008)
EX-200 (2008)
EX-200-2 (2008)
EX-200-3
EX-220 (2008)
EX-220-2 (2008)
EX-270 (2008)
EX-300 (2008)
EX-300-2 (2000)
EX-400 Type A (2006)
EX-400 Type B (2006)
EX-60 (2003)
EX-60-2 (2000)
EX-60-3 (2008)
EX-70 (2017)
LX-110-7 (2008)
LX-130-7 (2008)
LX-150-2 (2008)
LX-160-7 (2008)
LX190-7/LX230-7 (2008)
Zaxis 190-3
ZAXIS 200-5A (2018)
ZAXIS 200LC-5A (2018)
ZAXIS 210H-5A (2018)
ZAXIS 210K-5A (2018)
ZAXIS 210LCH-5A (2018)
ZAXIS 210LCK-5A (2018)
ZAXIS 330-5G (2017)
ZAXIS 350H-5G (2017)
ZAXIS 48U-5A (2020)
ZAXIS 850-3
ZAXIS 870H-3
ZX-110 (2008)
ZX-160W (2008)
ZX-200 (2008)
ZX-230 (2008)
ZX-25 (2008)
ZX-270 (2008)
ZX-330 (2010)
ZX-330-3 (Part № PIHH-I-3) (2008)
ZX-330-3 (Part № PIHH-I-5) (2013)
ZX-330-3G (2008)
ZX-400R-3 (2010)
ZX-450 (2006)
ZX-600 (2007)
Компоненты EX-100-2 (2000)
Компоненты EX-100WD (2008)
Компоненты EX-120 (2008)
Компоненты EX-120-2 (2008)
Компоненты EX-160WD (2008)
Компоненты EX-200 (2008)
Компоненты EX-200-2 (2008)
Компоненты EX-200-3(LC, H)
Компоненты EX-220 (2008)
Компоненты EX-220-2 (2008)
Компоненты EX-270 (2008)
Компоненты EX-300 (2008)
Компоненты EX-300-2 (2000)
Компоненты EX-400 Type A (2006)
Компоненты EX-400 Type B (2006)
Компоненты EX-60 (2003)
Компоненты EX-60-2 (2000)
Компоненты EX-60-3 (2008)
Компоненты ZAXIS 450, 470, 500, 520 (2010)
Компоненты ZX-110 (2008)
Компоненты ZX-120 (130) (2008)
Компоненты ZX-160W (2008)
Компоненты ZX-200 (2008)
Компоненты ZX-230 (2008)
Компоненты ZX-270 (2008)
Компоненты ZX-330 (2008)
Компоненты ZX-450 (2006)
Схема
>
Не выбрано
Frame
Counterweight
Engine
Radiator
Reserve Tank
Air Cleaner
Muffler
Fuel Pipings
Fuel Tank
Fuel Feed Pump (Option)
Fuel Double Filter (Option)
Fuel Double Filter (Option)
Pump Device
Swing Device
Oil Tank
Oil Cooler Pipings (1)
Oil Cooler Pipings (2)
Oil Cooler Pipings (3)
Main Pipings (1)
Main Pipings (2)
Main Pipings (3)
Main Pipings (4)
Swing Pipings
Engine Control Motor
Engine Control Cable
Control Lever (1)
Control Lever (2)
Control Lever (2)
Control Lever (3)
Pilot Pipings (1-1)
Pilot Pipings (1-2)
Pilot Pipings (2-1)
Pilot Pipings (2-2)
Pilot Pipings (3-1)
Pilot Pipings (3-2)
Pilot Pipings (3-3)
Pilot Pipings (4-1)
Pilot Pipings (4—2) <STD>
Pilot Pipings (4-2) <N.EUROPE>
Pilot Pipings (5-1) <STD>
Pilot Pipings (5-1) <N.EUROPE>
Pilot Pipings (5—2)
Pilot Pipings (6-1)
Pilot Pipings (6-1)
Pilot Pipings (6-2)
Console (R)
Console (L) <STD>
Console (L) <N.EUROPE>
Switch Box
Gauge Panel <STD>
Gauge Panel <N.EUROPE>
Radio <STD>
Radio <N.EUROPE>
Electric Parts (1)
Electric Parts (2) <STD>
Electric Parts (2) <N.EUROPE>
Electric Parts (3-1)
Electric Parts (3—2) <STD>
Electric Parts (3-2) <N.EUROPE>
Electric Parts (3—3)
Electric Parts (3—4)
Window Washer
Car Heater
Car Heater Parts
Car Heater Pipings
Cab Group (1) Serial №30001-35232
Cab Group (1) Serial №35233-38429
Cab Group (1) Serial №38430-
Cab Group (2)
Rearview Mirror
Cab <STD>
Cab <N.EUROPE>
Cab (1)
Cab (2) <STD>
Cab (2) <N.EUROPE>
Cab (3) Serial №30001-33400
Cab (3) Serial №33401-
Cab (4)
Cab (5)
Cab (6) <STD>
Cab (6) <N.EUROPE>
Cab (7): Sunvisor <N.EUROPE>
Rear Cover (Inside of Cab)
Floor Parts
Seat
Seat Suspension Serial №30001-38429
Seat Suspension Serial №38430-
Seat Stand Serial №30001-38429
Seat Belt Serial №37033-38429
Seat Belt Serial №38430
Cover (1-1)
Cover (1—2)
Cover (1-3)
Cover (1—4)
Cover (1-5)
Cover (2-1)
Cover (2—2)
Door Lock (1)
Door Lock (2)
Track Frame
Swing Bearing
Travel Device
Front Idler
Adjuster
Upper Roller
Lower Roller
Track-Link 500G
Center Joint
Travel Pipings
Travel Pipings Cover
Boom
STD. Arm 2.52M
Bucket 0.45
Front Pipings (1)
Front Pipings (2)
Lubricate Pipings
Track Frame (Rubber Crawler)
Front Idler (Rubber Crawler)
Adjuster (Rubber Crawler)
Lower Roller (Rubber Crawler)
Rubber Crawler
Multi Lever Pipings (1)
Multi Lever Pipings (2)
Multi Lever Pipings (3)
Multi Lever Pipings (4)
Air Conditioner (1) Serial №30001-37588
Air Conditioner (1) Serial №37589-
Air Conditioner (2) Serial №30001-31268
Air Conditioner (2) Serial №31269-37588
Air Conditioner (2) Serial №37589-
Air-Con. Unit Serial №30001-37588
Air-Con. Unit Serial №37589-
Air-Con. Controller Serial №30001-37588
Air-Con. Controller Serial №37589-
Tropical Cover
Track-Link 500GP (rubber pad)
Track-Link 600G
Track-Link 700G
Track-Link 510F
Track-Link 700A
Short Arm 2.1M
Front Pipings (2) (Short Arm)
Long Arm 3.01M
Front Pipings (2) (Long Arm)
Lubricate Pipings (Long Arm)
Bucket 0.17
Bucket 0.25
Bucket 0.33
Bucket 0.4
Bucket 0.5
Bucket 0.55
One-Point Ripper
Slope-Finishing Blade
Clamshell Bucket (1)
Clamshell Bucket (2)
Clamshell Bucket (3)
Clamshell Pipings
Hose Rupture Valve Pipings (Boom): 1 Serial №30001-D93/09
Hose Rupture Valve Pipings (Boom): 1 Serial №93/10-
Hose Rupture Valve Pipings (Boom): 2 Serial №30001-D93/09
Hose Rupture Valve Pipings (Boom): 2 Serial №D93/10-
Hose Rupture Valve Pipings (Boom): 3 Serial №30001-D93/09
Hose Rupture Valve Pipings (Boom): 3 Serial №D93/10-
Hose Rupture Valve Pipings (Arm): 1 Serial №30001-D93/09
Hose Rupture Valve Pipings (Arm): 1 Serial №D93/10-
Hose Rupture Valve Pipings (Arm): 2 Serial №30001-D93/09
Hose Rupture Valve Pipings (Arm): 2 Serial №D93/10-
Hose Rupture Valve Pipings (Arm): 3 Serial №30001-D93/09
Hose Rupture Valve Pipings (Arm): 3 Serial №D93/10-
Control Pedal (Breaker & Crusher)
Pilot Pipings (Breaker & Crusher) Serial №30001-D90/10
Pilot Pipings (Breaker & Crusher) Serial №D90/11-
Main Pipings For Breaker & Crusher
Front Pipings For Breaker & Crusher
Pipings For NPK Breaker & Crusher
Pipings For OKADA/FURUKAWA Breaker
Piping For OKADA/FURUKAWA Breaker & Crusher
Tools
Spare Parts
00
00
00A
00A
01
02
03
04
05
05
05A
05A
06
06
06
06
07
07
08
08
08
08
09
09
09
09
10
10
13
14
15
16
17
Позиция на иллюстрации
Заводской номер детали
Название детали
00
4174542
PLUG
00A
4506424
O-RING
01
4209158
VALVE, RELIEF
02
J900820
BOLT
03
А590908
WASHER, SPRING
04
94-2014
PLUG
05
4208243
ADAPTERS
05A
4506424
O-RING
06
94-0633
ELBOW, S
07
4208454
HOSE
08
4187308
O-RING
09
4208967
ADAPTER, S
10
94-0678
SOCKET, S
13
8052266
BRACKET
14
J901230
BOLT
15
А590912
WASHER, SPRING
16
А590112
WASHER, PLANE
17
4285492
SEAT, SCREW
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
