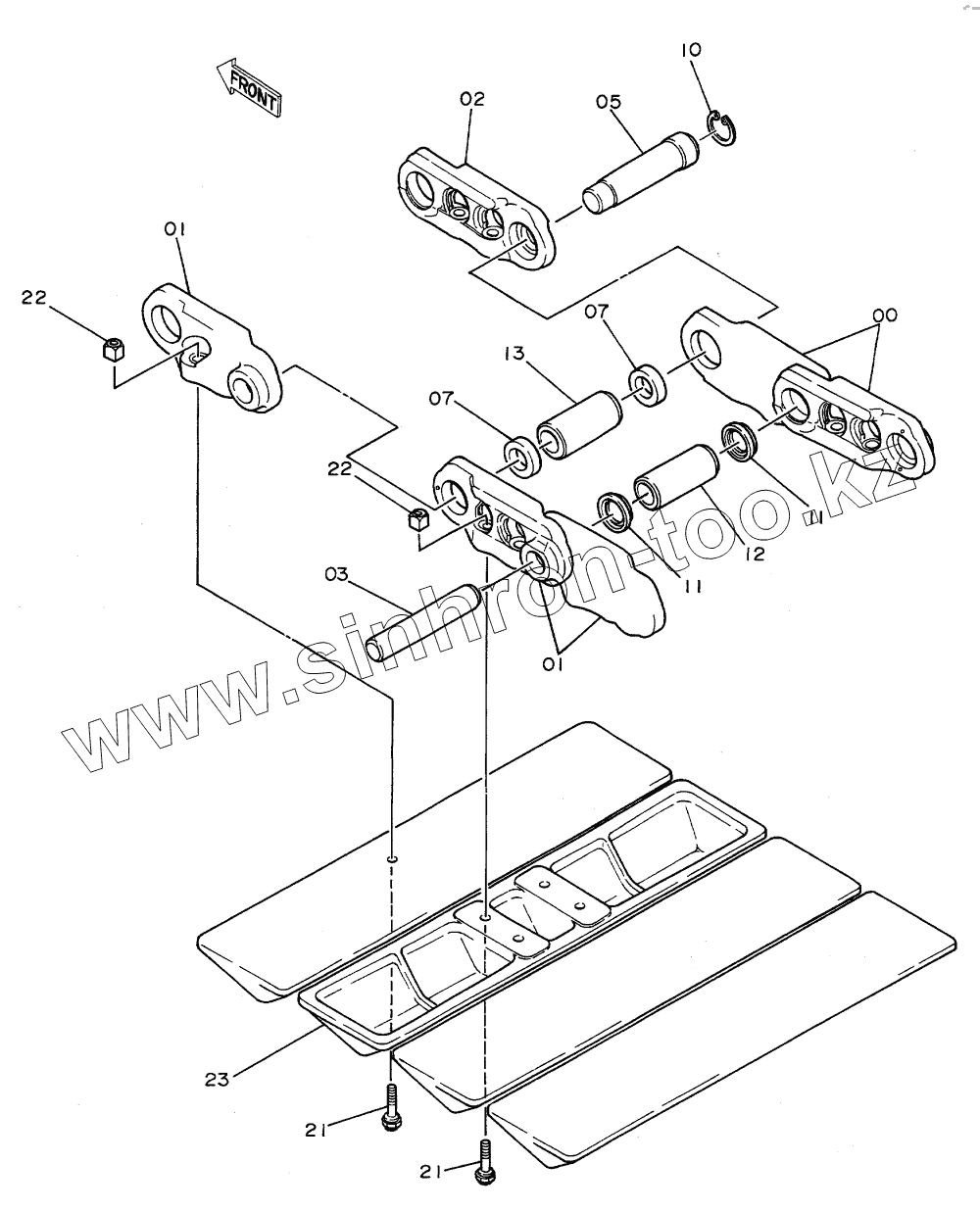

Каталог запасных частей к технике: Hitachi EX-120. TRACK-LINK 700A
1014776
9073858
1014576
1010119
9107473
9091951
9067034
9108455
9096164
9074119
1
1
1
1
2
2
2
3
5
5
7
7
10
11
11
11
12
12
12
13
13
13
21
21
21
22
22
22
23
23
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 1014776 | 1014776 | TRACK-LINK B | |
| 9073858 | 9073858 | TRACK-LINK ASSY | |
| 1014576 | 1014576 | TRACK-LINK B | |
| 1010119 | 1010119 | TRACK-LINK B | |
| 9107473 | 9107473 | TRACK-LINK ASSY | |
| 9091951 | 9091951 | TRACK-LINK ASSY | |
| 9067034 | 9067034 | TRACK-LINK ASSY | |
| 9108455 | 9108455 | TRACK-LINK ASSY | |
| 9096164 | 9096164 | TRACK-LINK ASSY | |
| 9074119 | 9074119 | TRACK-LINK ASSY | |
| 1 | 1010120 | TRACK-LINK B | |
| 1 | 1014575 | TRACK-LINK B | |
| 1 | 1014777 | TRACK-LINK B | |
| 2 | 4187522 | TRACK-LINK M | |
| 2 | 4253404 | TRACK-LINK M | |
| 2 | 4255995 | TRACK-LINK M | |
| 3 | 4145301 | PIN | |
| 5 | 4187523 | PIN MASTER | |
| 5 | 4257146 | PIN MASTER | |
| 7 | 4187553 | COLLAR | |
| 10 | 4192665 | RING | |
| 11 | 4192571 | SEAL | |
| 11 | 4253407 | SEAL | |
| 12 | 4158239 | BUSHING | |
| 12 | 4253408 | BUSHING | |
| 12 | 4255933 | BUSHING | |
| 13 | 4158240 | BUSHING MASTER | |
| 13 | 4255934 | BUSHING MASTER | |
| 13 | 4253409 | BUSHING MASTER | |
| 21 | 4157879 | BOLT SHOE | |
| 21 | 4253410 | BOLT SHOE | |
| 22 | 4122664 | NUT | |
| 22 | 4253411 | NUT | |
| 23 | 2024633 | SHOE TRIANGLE | |
| 23 | 2008575 | SHOE, TRIANGLE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
