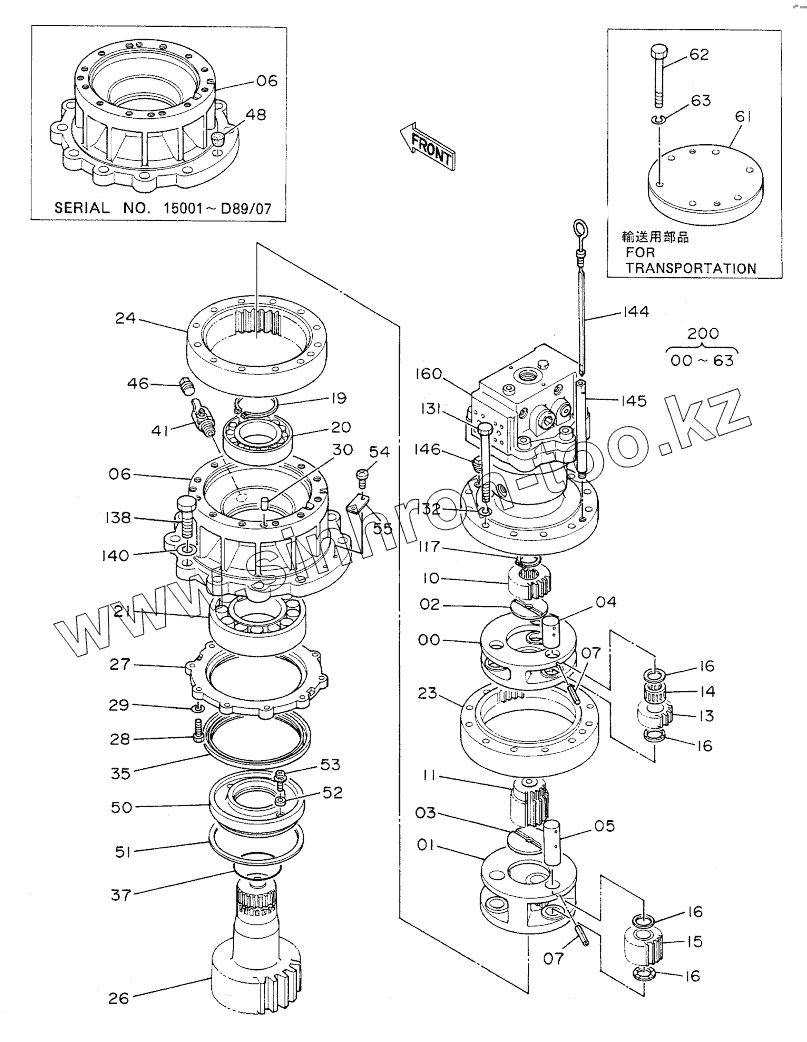

Каталог запасных частей к технике: Hitachi EX-120. SWING DEVICE
2023962
2023962
1
1
2
3
4
5
5
6
6
6
7
7
10
11
11
13
14
15
16
16
16
16
19
20
21
23
23
24
26
27
28
29
30
35
37
41
46
48
50
51
52
53
54
55
61
62
63
63
117
131
132
138
140
144
144
145
145
146
160
160
200
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2023962 | 2023962 | CARRIER | |
| 1 | 2023965 | CARRIER | |
| 1 | 2024894 | CARRIER | |
| 2 | 4176070 | PLATE, THRUST | |
| 3 | 4195372 | PLATE, THRUST | |
| 4 | 4186262 | PIN | |
| 5 | 4177855 | PIN | |
| 5 | 4207801 | PIN | |
| 6 | 1010887 | HOUSING | |
| 6 | 1015518 | HOUSING | |
| 7 | 4063351 | PIN, SPRING | |
| 10 | 3037606 | GEAR, SUN | |
| 11 | 3037607 | GEAR SUN | |
| 11 | 3038482 | GEAR, SUN | |
| 13 | 3037605 | GEAR, PLANETARY | |
| 14 | 4184840 | BRG., NEEDLE | |
| 15 | 9727159 | GEAR, PLANETARY | |
| 16 | 4176071 | PLATE, THRUST | |
| 19 | 991350 | RING, RETAINING | |
| 20 | 969154 | BRG., SPH.ROL | |
| 21 | 4001398 | BRG., SPH.ROL | |
| 23 | 2023964 | GEAR | |
| 23 | 2024895 | GEAR, INTERNAL | |
| 24 | 2023961 | GEAR, INTERNAL | |
| 26 | 2023963 | SHAFT, PROP | |
| 27 | 3037604 | COVER | |
| 28 | J901032 | BOLT | |
| 29 | A590910 | WASHER, SPRING | |
| 30 | J401232 | PIN, KNOCK | |
| 35 | 4250325 | SEAL, OIL | |
| 37 | A811095 | O-RING | |
| 41 | 4194712 | COCK | |
| 46 | 94-2024 | PLUG | |
| 48 | 456336 | CORK | |
| 50 | 3038685 | SLEEVE | |
| 51 | 4204074 | RING, RETAINING | |
| 52 | 4204644 | MAGNET | |
| 53 | 4204645 | SCREW | |
| 54 | M492564 | SCREW, DRIVE | |
| 55 | 3053093 | NAME-PLATE | |
| 61 | 8049278 | COVER | |
| 62 | J901412 | BOLT | |
| 63 | A590914 | WASHER, SPRING | |
| 117 | 991342 | RING, RETAINING | |
| 131 | J901412 | BOLT | |
| 132 | A590914 | WASHER, SPRING | |
| 138 | J932065 | BOLT | |
| 140 | 4018545 | WASHER | |
| 144 | 3043290 | GAUGE, LEVEL | |
| 144 | 3035979 | GAUGE, LEVEL | |
| 145 | 4228687 | PIPE | |
| 145 | 4191881 | PIPE | |
| 146 | 94-2024 | PLUG | |
| 160 | 4199025 | MOTOR OIL | |
| 160 | 4224976 | MOTOR OIL | |
| 200 | 9097684 | SUING DEVICE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
