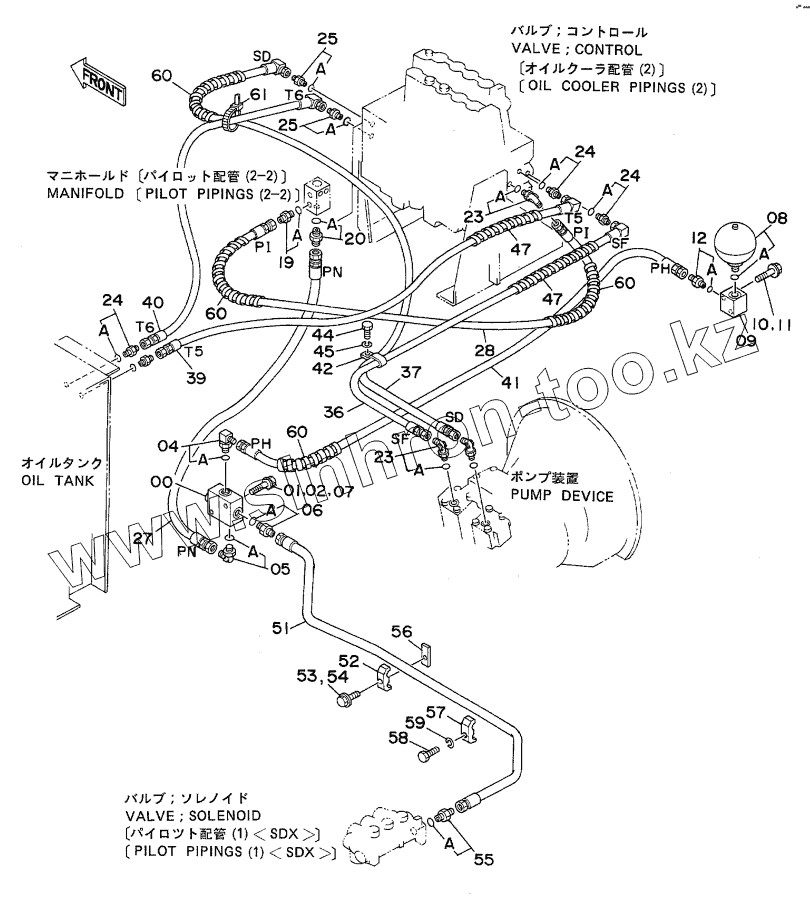

Каталог запасных частей к технике: Hitachi EX-120. PILOT PIPINGS (2-1) <SDX>
00
01
01
01
02
04
04A
05
05A
06
06A
07
08
08A
09
10
10
11
12
12A
19
19A
20
20A
23
23
23A
23A
24
24
24
24A
24A
24A
25
25
25A
25A
27
28
36
37
39
40
41
41
42
42
44
45
47
47
51
52
53
53
53
54
55
55A
56
57
58
59
60
60
60
60
61
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 9072360 | VALVE, CHECK | |
| 01 | J901050 | BOLT | |
| 01 | J901055 | BOLT | |
| 01 | J021055 | BOLTlSEMS | |
| 02 | A590910 | WASHER, SPRING | |
| 04 | 4154670 | ELBOW, S | |
| 04A | 957366 | O-RING | |
| 05 | 4154671 | ELBOW | |
| 05A | 4509180 | O-RING | |
| 06 | 4200469 | ADAPTER, S | |
| 06A | 4506418 | O-RING | |
| 07 | A590110 | WASHER, PLANE | |
| 08 | 4195978 | ACCUMULATOR | |
| 08A | 954493 | O-RING | |
| 09 | 3036998 | BLOCK | |
| 10 | J901060 | BOLT | |
| 10 | J011060 | BOLT SEMS | |
| 11 | A590910 | WASHER, SPRING | |
| 12 | 4200465 | ADAPTER, S | |
| 12A | 957366 | O-RING | |
| 19 | 4200465 | ADAPTER, S | |
| 19A | 957366 | O-RING | |
| 20 | 4200467 | ADAPTER, S | |
| 20A | 957366 | O-RING | |
| 23 | 4154670 | ELBOW, S | |
| 23A | 957366 | O-RING | |
| 24 | 4200465 | ADAPTER, S | |
| 24A | 957366 | O-RING | |
| 25 | 4209776 | ADAPTER, S | |
| 25A | 957366 | O-RING | |
| 27 | 4200497 | HOSE, NYLON | |
| 28 | 4200498 | HOSE, NYLON | |
| 36 | 4203005 | HOSE | |
| 37 | 4203006 | HOSE | |
| 39 | 4203007 | HOSE, NYLON | |
| 40 | 4203008 | HOSE, NYLON | |
| 41 | 4203009 | HOSE NYLON | |
| 41 | 4213450 | HOSE NYLON | |
| 42 | 4190292 | CLIP | |
| 42 | 4190266 | CLIP | |
| 44 | J901020 | BOLT | |
| 45 | A590910 | WASHER, SPRING | |
| 47 | 4133527 | PROTECTOR | |
| 51 | 8038462 | PIPE | |
| 52 | 4189858 | СLАМР, РIРЕ | |
| 53 | J901245 | BOLT | |
| 53 | J901260 | BOLT | |
| 53 | J011260 | BOLT, SEMS | |
| 54 | A590912 | WASHER, SPRING | |
| 55 | 4200469 | ADAPTER, S | |
| 55A | 4506418 | O-RING | |
| 56 | 4226461 | SPACER | |
| 57 | 4189858 | СLАМР, РIРЕ | |
| 58 | J901245 | BOLT | |
| 59 | A590912 | WASHER, SPRING | |
| 60 | 4133527 | PROTECTOR | |
| 61 | 4121859 | CLIP, BAND |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
