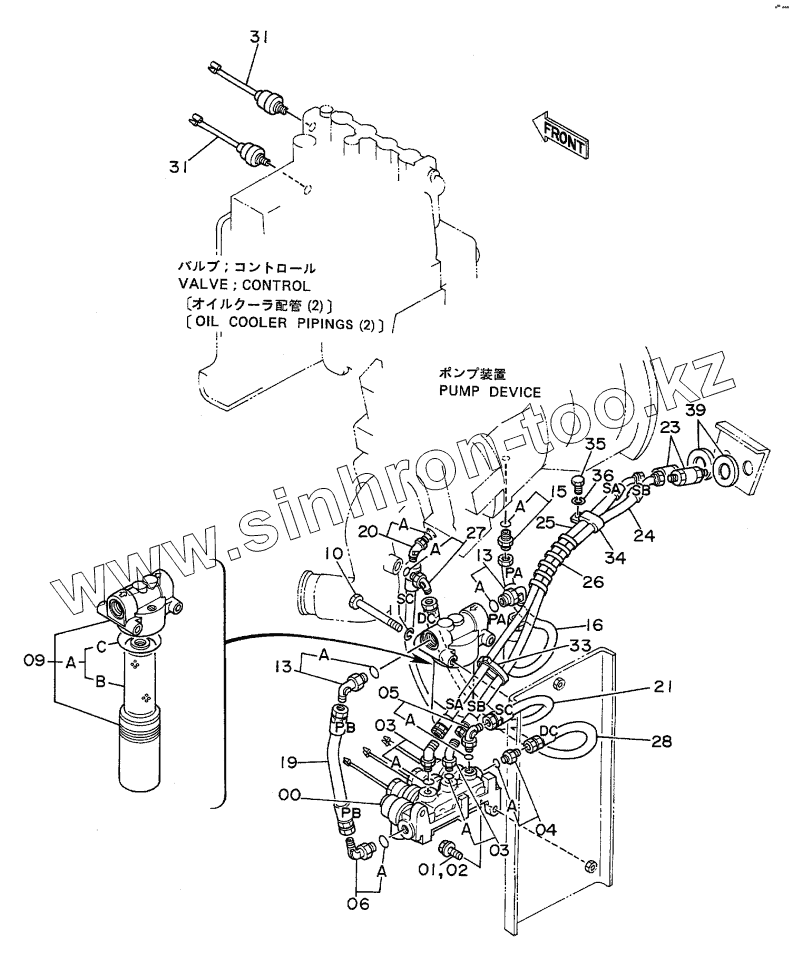

Каталог запасных частей к технике: Hitachi EX-120. PILOT PIPINGS (1) <SDX>
00
01
01
02
03
03
03A
03A
04
04A
05
05A
06
06A
09
09A
09B
09C
10
11
13
13
13A
13A
15
15A
16
19
20
20A
21
23
24
25
26
27
27A
28
31
31
31
31
33
34
35
36
39
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 4196411 | VALVE, SOLENOID | |
| 01 | J901030 | BOLT | |
| 01 | J011030 | BOLT, SEMS | |
| 02 | A590910 | WASHER, SPRING | |
| 03 | 4193826 | ELBOW, S | |
| 03A | 957366 | O-RING | |
| 04 | 4200465 | ADAPTER, S | |
| 04A | 957366 | O-RING | |
| 05 | 4154670 | ELBOW, S | |
| 05A | 957366 | O-RING | |
| 06 | 4200471 | ELBOW, S | |
| 06A | 4506418 | O-RING | |
| 09 | 4191300 | FILTER, OIL | |
| 09A | 4207841 | ELEMENT, OIL | |
| 09B | 4191301 | ELEMENT, FILTER | |
| 09C | A811065 | O-RING | |
| 10 | J901000 | BOLT | |
| 11 | A590910 | WASHER, SPRING | |
| 13 | 4200471 | ELBOW, S | |
| 13A | 4506418 | O-RING | |
| 15 | 4200466 | ADAPTER, S | |
| 15A | 4509180 | O-RING | |
| 16 | 4200491 | HOSE | |
| 19 | 4204174 | HOSE | |
| 20 | 4193826 | ELBOW, S | |
| 20A | 957366 | O-RING | |
| 21 | 4200493 | HOSE | |
| 23 | 4187914 | CYL. | |
| 24 | 4200494 | HOSE | |
| 25 | 4200495 | HOSE | |
| 26 | 4044420 | PROTECTOR | |
| 27 | 4154670 | ELBOW, S | |
| 27A | 957366 | O-RING | |
| 28 | 4200496 | HOSE | |
| 31 | 4188551 | SWITCH, PRES. | |
| 31 | 4259333 | SWITCH, PRES. | |
| 33 | 4121859 | CLIP, BAND | |
| 34 | 4190292 | CLIP | |
| 35 | J901020 | BOLT | |
| 36 | A590910 | WASHER, SPRING | |
| 39 | 4061743 | WASHER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
