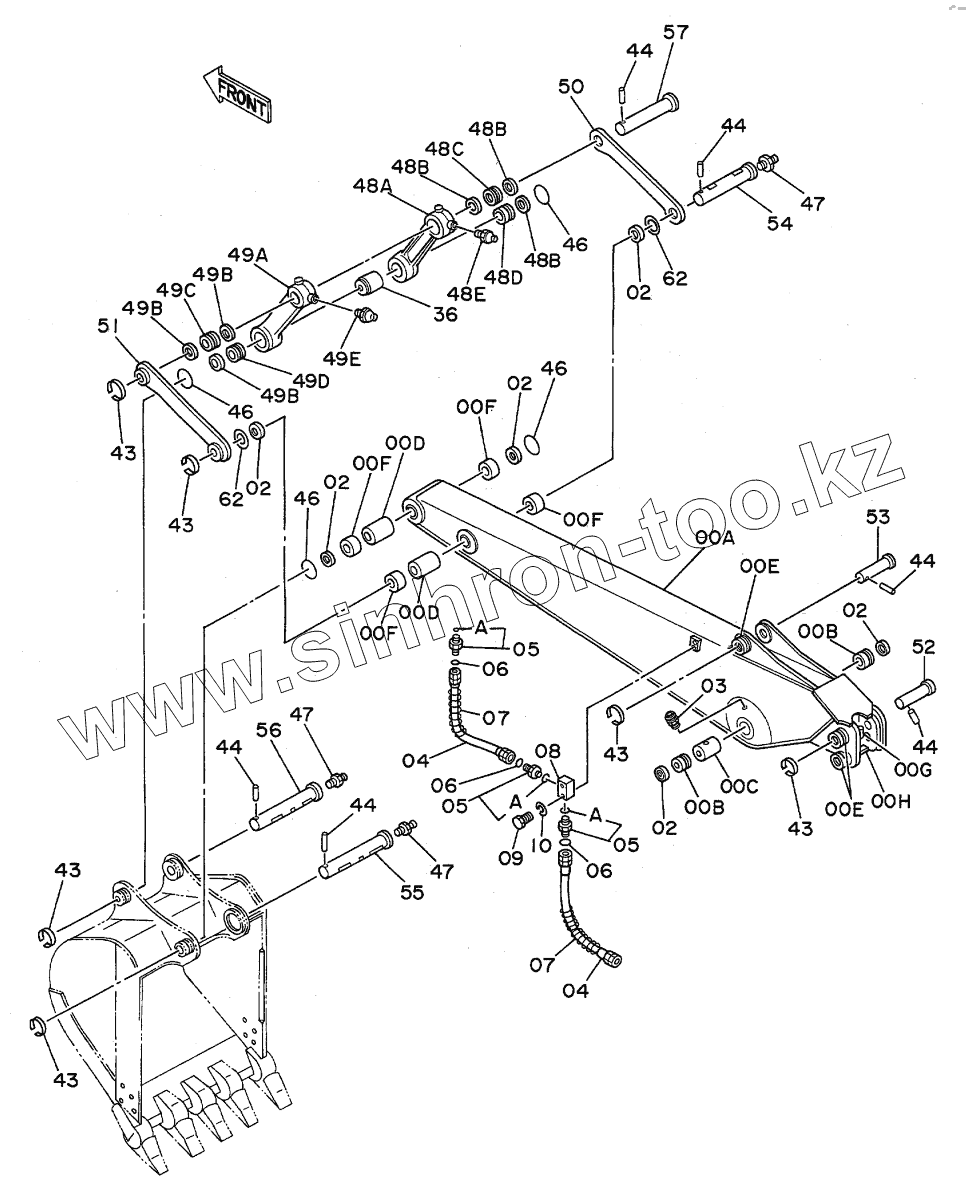

Каталог запасных частей к технике: Hitachi EX-120. LONG ARH З.0M
00A-H
00A
00B
00B
00C
00D
00D
00E
00F
00F
00F
00F
00F
00G
00H
02
02
02
02
02
02
03
04
04
05
05
05
05
05A
05A
05A
06
06
07
07
08
09
10
36
43
43
43
43
43
44
44
44
44
44
44
46
46
46
46
47
47
47
48A-E
48A
48B
48B
48B
48C
48D
48E
49A-E
49A
49B
49B
49B
49C
49D
49E
50
51
52
52
53
54
55
56
57
62
62
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00A-H | 8037384 | ARM ASSY | |
| 00A | 6008228 | ARM | |
| 00B | 4188796 | BUSHING | |
| 00C | 4128972 | PIPE | |
| 00D | 4124575 | PIPE | |
| 00E | 4197033 | STOPPER | |
| 00F | 4196558 | BUSHING | |
| 00G | 4167833 | PLATE | |
| 00H | 4167832 | PLATE | |
| 02 | 4065687 | SEAL, DUST | |
| 03 | J75481 | FITTING, GREASE | |
| 04 | 4205337 | HOSE | |
| 05 | 4189602 | ADAPTER, S | |
| 05A | 4506418 | O-RING | |
| 06 | 4138938 | O-RING | |
| 07 | 4053607 | PROTECTOR, HOSE | |
| 08 | 3038876 | BLOCK | |
| 09 | J901060 | BOLT | |
| 10 | A590910 | WASHER, SPRING | |
| 36 | 4065885 | SPACER | |
| 43 | 4065688 | RING | |
| 44 | 4065689 | PIN | |
| 46 | 4152726 | O-RING | |
| 47 | J75481 | FITTING, GREASE | |
| 48A-E | 8038215 | LINK ASSY | |
| 48A | 2023691 | LINK | |
| 48B | 4065687 | SEAL, DUST | |
| 48C | 4196557 | BUSHING | |
| 48D | 4196558 | BUSHING | |
| 48E | J75481 | FITTING, GREASE | |
| 49A-E | 8038216 | LINK ASSY | |
| 49A | 2023704 | LINK | |
| 49B | 4065687 | SEAL, DUST | |
| 49C | 4196557 | BUSHING | |
| 49D | 4196558 | BUSHING | |
| 49E | J75481 | FITTING, GREASE | |
| 50 | 4188797 | LINK | |
| 51 | 9725289 | LINK | |
| 52 | 3037077 | PIN | |
| 52 | 3039164 | PIN | |
| 53 | 3037078 | PIN | |
| 54 | 3037079 | PIN | |
| 55 | 3037080 | PIN | |
| 56 | 3037081 | PIN | |
| 57 | 3037082 | PIN | |
| 62 | 4075357 | WASHER 1.0 |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
