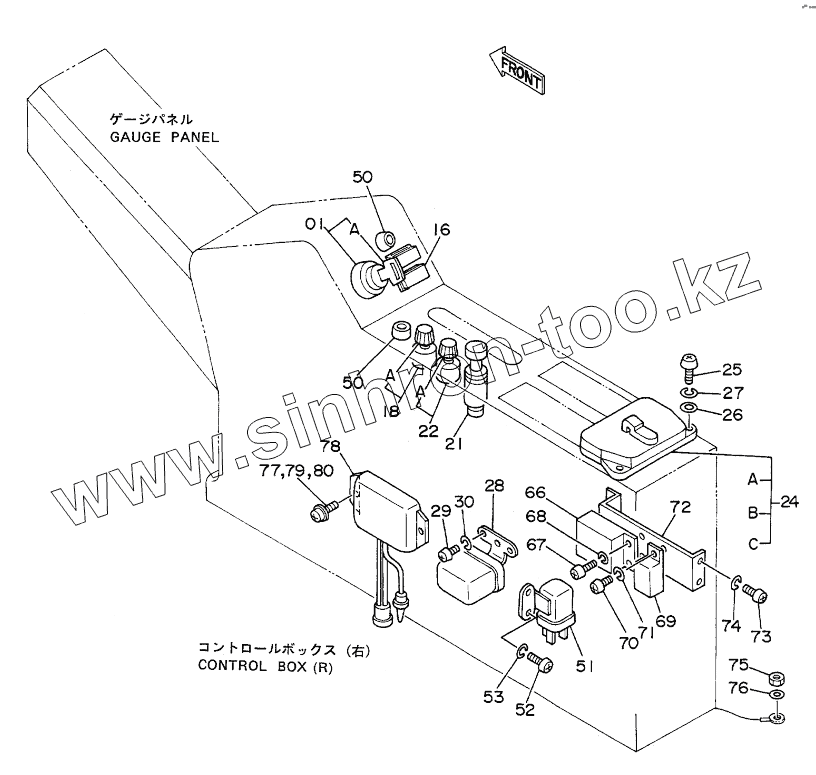

Каталог запасных частей к технике: Hitachi EX-120. ELECTRIC PARTS (1) <DX>
01
01
01A
01A
16
18
18A
21
22
22A
24
24A
24B
24C
25
26
27
28
29
30
50
50
51
52
53
66
67
68
69
70
71
72
73
74
75
76
77
78
79
79
80
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 01 | 4186745 | SWITCH, START | |
| 01 | 4186743 | SWITCH, START | |
| 01A | 4187759 | KEY, START | |
| 01A | 4187757 | KEY, START | |
| 16 | 4209103 | COVER | |
| 18 | 4184396 | SWITCH | |
| 18A | 4268740 | KNOB | |
| 21 | 4184395 | LIGHTER | |
| 22 | 4184398 | SWITCH | |
| 22A | 4268741 | KNOB | |
| 24 | 4184394 | BOX, FUSE | |
| 24A | 4208246 | FUSE | |
| 24B | 4195610 | FUSE | |
| 24C | 4127781 | FUSE | |
| 25 | J850625 | SCREW | |
| 26 | J250006 | WASHER, PLANE | |
| 27 | J251006 | WASHER, SPRING | |
| 28 | 4505392 | RELAY | |
| 29 | M430610 | SCREW | |
| 30 | A590906 | WASHER, SPRING | |
| 50 | 4146754 | RUBBER | |
| 51 | 4152940 | RELAY, HOURMETER | |
| 52 | M430513 | SCREW | |
| 53 | A590905 | WASHER, SPRING | |
| 66 | 4189180 | TIMER | |
| 67 | M430610 | SCREW | |
| 68 | A590906 | WASHER, SPRING | |
| 69 | 4205029 | RELAY | |
| 70 | M430610 | SCREW | |
| 71 | A590906 | WASHER, SPRING | |
| 72 | 4205179 | BRACKET | |
| 73 | M430610 | SCREW | |
| 74 | A590906 | WASHER, SPRING | |
| 75 | J950010 | NUT | |
| 76 | A590110 | WASHER, PLANE | |
| 77 | A590906 | WASHER, SPRING | |
| 78 | 4191999 | RELAY | |
| 79 | M430620 | SCREW | |
| 79 | J460620 | SCREW, SEMS | |
| 80 | A590106 | WASHER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
