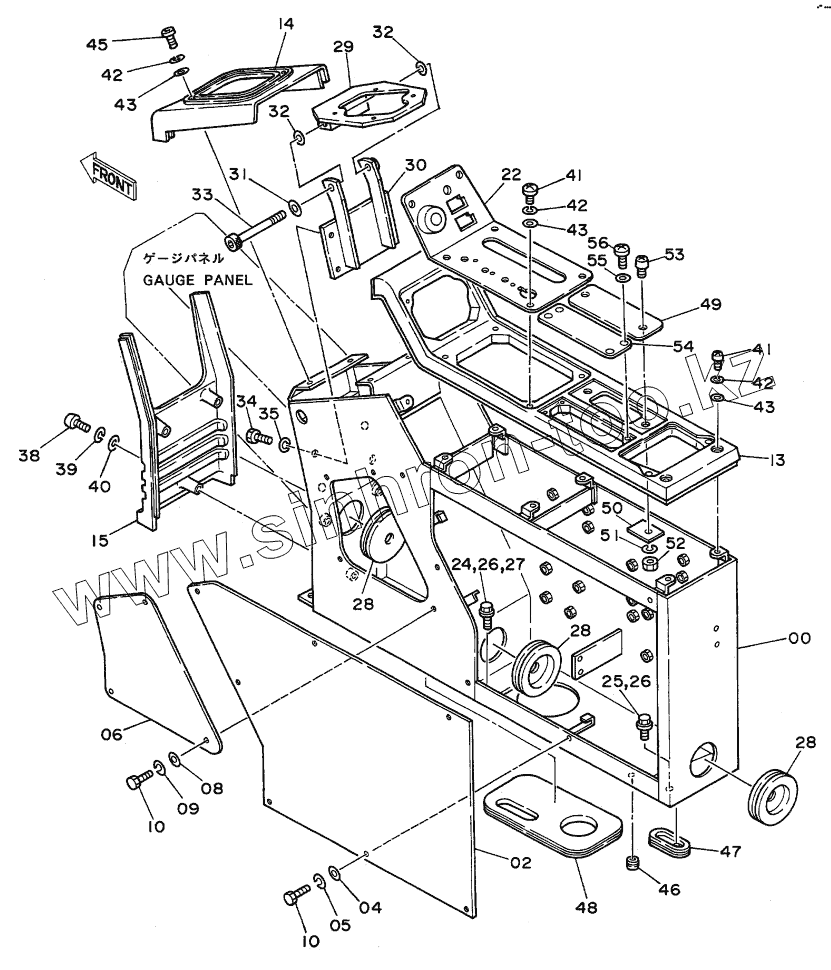

Каталог запасных частей к технике: Hitachi EX-120. CONTROL BOX (R) <DX>
6008796
6008362
9076592
6009660
2
4
5
6
8
9
10
10
13
14
15
22
22
24
24
25
25
26
26
27
28
28
28
29
30
31
32
32
33
34
35
38
39
40
41
41
42
42
42
43
43
43
45
46
47
48
49
50
51
52
53
54
55
56
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 6008796 | 6008796 | STAND | |
| 6008362 | 6008362 | STAND | |
| 9076592 | 9076592 | BRACKET ASSY | |
| 6009660 | 6009660 | STAND | |
| 2 | 3037903 | COVER | |
| 4 | 4144838 | WASHER | |
| 5 | A590906 | WASHER, SPRING | |
| 6 | 4191972 | COVER | |
| 8 | A590106 | WASHER | |
| 9 | A590906 | WASHER, SPRING | |
| 10 | J900614 | BOLT | |
| 13 | 5002033 | PANEL | |
| 14 | 1010966 | COVER | |
| 15 | 1010899 | COVER | |
| 22 | 3045260 | PANEL | |
| 22 | 8038238 | PANEL | |
| 24 | J901025 | BOLT | |
| 24 | J021030 | BOLT, SEMS | |
| 25 | J901025 | BOLT | |
| 25 | J011030 | BOLT, SEMS | |
| 26 | A590910 | WASHER, SPRING | |
| 27 | A590110 | WASHER, PLANE | |
| 28 | 4161992 | BUSHING, RUBBER | |
| 29 | 8038103 | BRACKET | |
| 30 | 8038102 | BRACKET | |
| 31 | A590112 | WASHER, PLANE | |
| 32 | 4191947 | SHIM | |
| 33 | M341200 | BOLT, SOCKET | |
| 34 | J901020 | BOLT | |
| 35 | A590910 | WASHER, SPRING | |
| 38 | J850640 | SCREW | |
| 39 | J251006 | WASHER, SPRING | |
| 40 | J250006 | WASHER, PLANE | |
| 41 | J850616 | SCREW | |
| 42 | J251006 | WASHER, SPRING | |
| 43 | J250006 | WASHER, PLANE | |
| 45 | J850620 | SCREW | |
| 46 | 487081 | BUSHING, RUBBER | |
| 47 | 4205083 | BUSHING, RUBBER | |
| 48 | 4200658 | BUSHING RUBBER | |
| 49 | 4209105 | COVER | |
| 50 | 4200521 | PLATE | |
| 51 | A5909О6 | WASHER SPRING | |
| 52 | M500605 | NUT | |
| 53 | J650620 | SCREW | |
| 54 | 4209104 | COVER | |
| 55 | J251004 | WASHER, SPRING | |
| 56 | J850410 | SCREW |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
