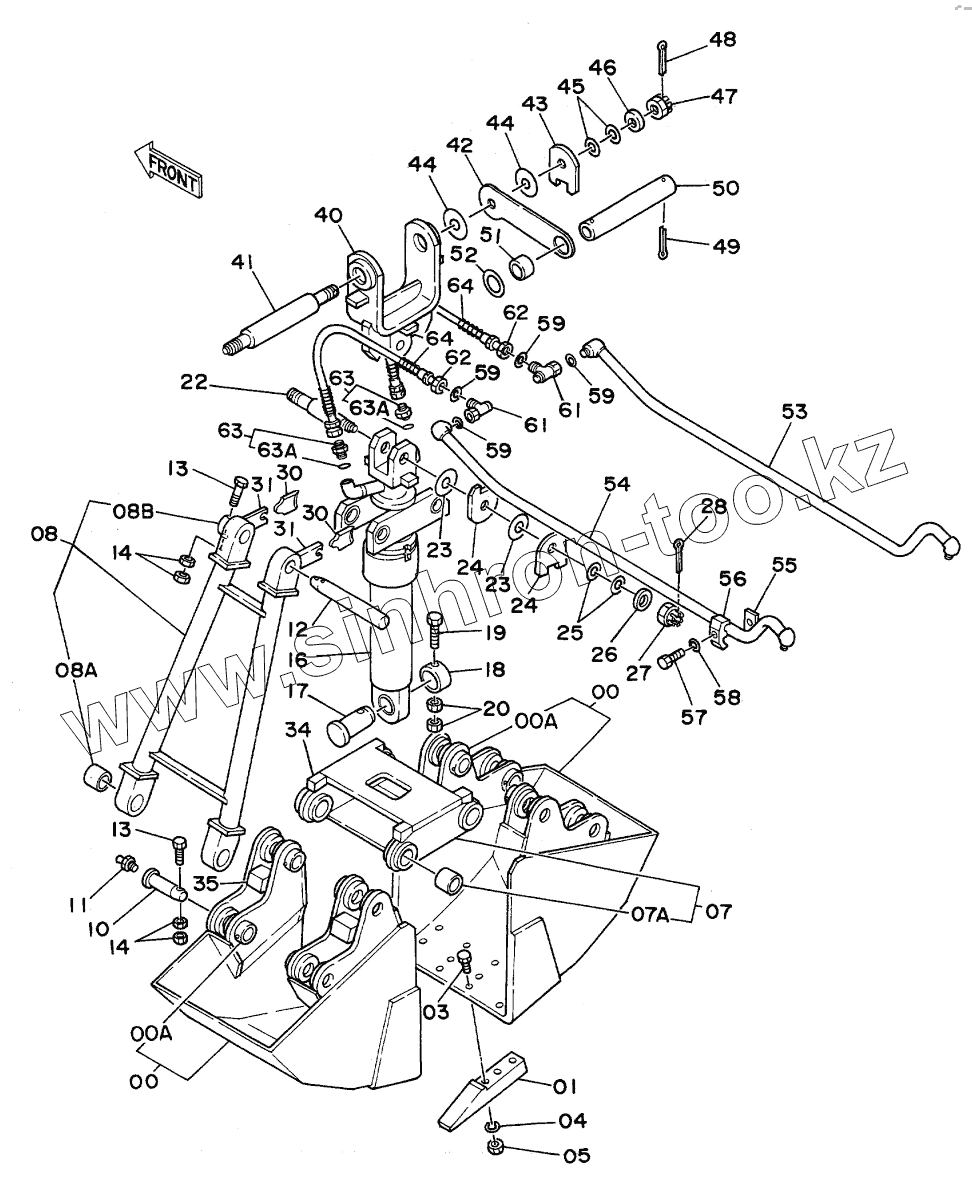

Каталог запасных частей к технике: Hitachi EX-120. CLAMSHELL BUCKET
00
00
00A
00A
01
03
04
05
07
07A
08
08A
08B
10
11
12
13
13
14
14
16
17
18
19
20
22
23
23
24
24
25
26
27
28
30
30
31
31
34
35
40
41
42
43
44
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
59
59
59
61
61
62
62
63
63
63A
63A
64
64
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 9020913 | SHELL | |
| 00A | 498672 | SPACER | |
| 01 | 452632 | TOOTH | |
| 03 | 447167 | BOLT | |
| 04 | A590922 | WASHER, SPRING | |
| 05 | 452064 | NUT | |
| 07 | 9020914 | FRAME | |
| 07A | 443976 | BUSHING | |
| 08 | 9020915 | STAY ASSY | |
| 08A | 443976 | BUSHING | |
| 08B | 498672 | SPACER | |
| 10 | 316694 | PIN | |
| 11 | J75481 | FITTING, GREASE | |
| 12 | 452066 | PIN | |
| 13 | M121290 | BOLT | |
| 14 | M511210 | NUT | |
| 16 | 4207441 | CYL., CLAMSHELL | |
| 17 | 4155711 | PIN | |
| 18 | 4076157 | STOPPER | |
| 19 | M121602 | BOLT | |
| 20 | M511613 | NUT | |
| 22 | 455064 | PIN | |
| 23 | 455060 | DISC | |
| 24 | 455062 | LEVER | |
| 25 | 452073 | SPRING, FLUSH | |
| 26 | 452074 | WASHER | |
| 27 | 452077 | NUT, CASTLE | |
| 28 | A768080 | PIN, SPLIT | |
| 30 | 452075 | LEVER | |
| 31 | 452076 | LEVER | |
| 34 | 492271 | STOPPER | |
| 35 | 492272 | STOPPER | |
| 40 | 8039644 | LINK | |
| 41 | 4158871 | PIN | |
| 42 | 4208679 | LEVER | |
| 43 | 455062 | LEVER | |
| 44 | 455060 | DISC | |
| 45 | 452073 | SPRING, FLUSH | |
| 46 | 452074 | WASHER | |
| 47 | 452077 | NUT, CASTLE | |
| 48 | A768080 | PIN, SPLIT | |
| 49 | A76800О | PIN SPLIT | |
| 50 | 4158872 | PIPE | |
| 51 | 4158873 | SPACER | |
| 52 | 4075356 | WASHER | |
| 53 | 8039609 | PIPE | |
| 54 | 8039610 | PIPE | |
| 55 | 4137298 | SEAT, SCREW | |
| 56 | 4190125 | CLAMP, PIPE | |
| 57 | J901250 | BOLT | |
| 58 | A590912 | WASHER, SPRING | |
| 59 | 4138938 | O-RING | |
| 60 | 4506418 | O-RING | |
| 61 | 4208678 | JOINT, SWIVEL | |
| 62 | 4207989 | HOSE | |
| 63 | 4042032 | ADAPTER | |
| 63A | 4506418 | O-RING | |
| 64 | 4053607 | PROTECTOR, HOSE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
