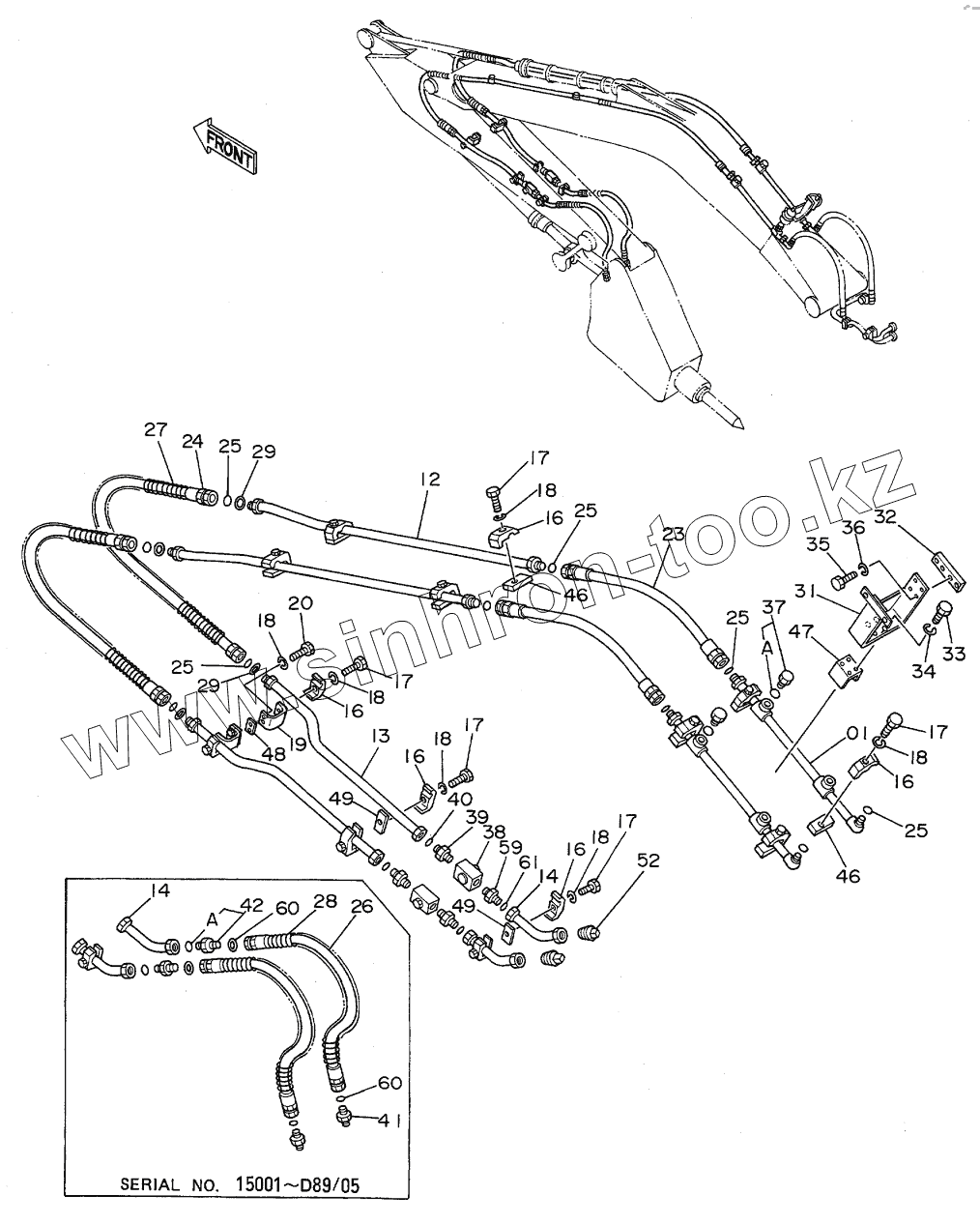

Каталог запасных частей к технике: Hitachi EX-120. BREAKER PIPINGS (2) <H-7X>
01
12
13
14
14
14
16
16
16
16
16
17
17
17
17
17
18
18
18
18
18
18
19
20
23
24
25
25
25
25
25
26
27
28
29
29
31
32
33
34
35
36
37
37A
38
39
40
41
42
42A
46
46
47
48
49
49
52
59
59
60
60
61
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 01 | 9728658 | PIPE | |
| 12 | 9728659 | PIPE | |
| 13 | 9728660 | PIPE | |
| 14 | 8039836 | PIPE | |
| 14 | 9731359 | PIPE | |
| 16 | 4190126 | CLAMP, PIPE | |
| 17 | J901255 | BOLT | |
| 18 | A590912 | WASHER, SPRING | |
| 19 | 4190168 | BRACKET | |
| 20 | J901230 | BOLT | |
| 23 | 4209720 | HOSE | |
| 24 | 4207995 | HOSE | |
| 25 | 4187308 | O-RING | |
| 26 | 4118105 | HOSE | |
| 27 | 4053610 | PROTECTOR | |
| 28 | 4053612 | PROTECTOR | |
| 29 | 4203220 | WASHER | |
| 31 | 8039835 | BRACKET | |
| 32 | 4209816 | BRACKET | |
| 33 | J901225 | BOLT | |
| 34 | A590912 | WASHER, SPRING | |
| 35 | J901020 | BOLT | |
| 36 | A590910 | WASHER, SPRING | |
| 37 | 4174542 | PLUG | |
| 37A | 4506424 | O-RING | |
| 38 | 4205902 | VALVE, STOP | |
| 39 | 4209818 | ADAPTER, S | |
| 40 | 4187328 | O-RING | |
| 41 | 94-1304 | ADAPTER, S | |
| 42 | 4042033 | ADAPTER | |
| 42A | 4506424 | O-RING | |
| 46 | 4173576 | SEAT, SCREW | |
| 47 | 4201774 | SEAT, SCREW | |
| 48 | 4128586 | SEAT SCREW | |
| 49 | 4189579 | SEAT, SCREW | |
| 52 | 94-2025 | PLUG | |
| 59 | 4209818 | ADAPTER, S | |
| 59 | 94-1304 | ADAPTER, S | |
| 60 | 4203220 | WASHER | |
| 61 | 4187328 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
