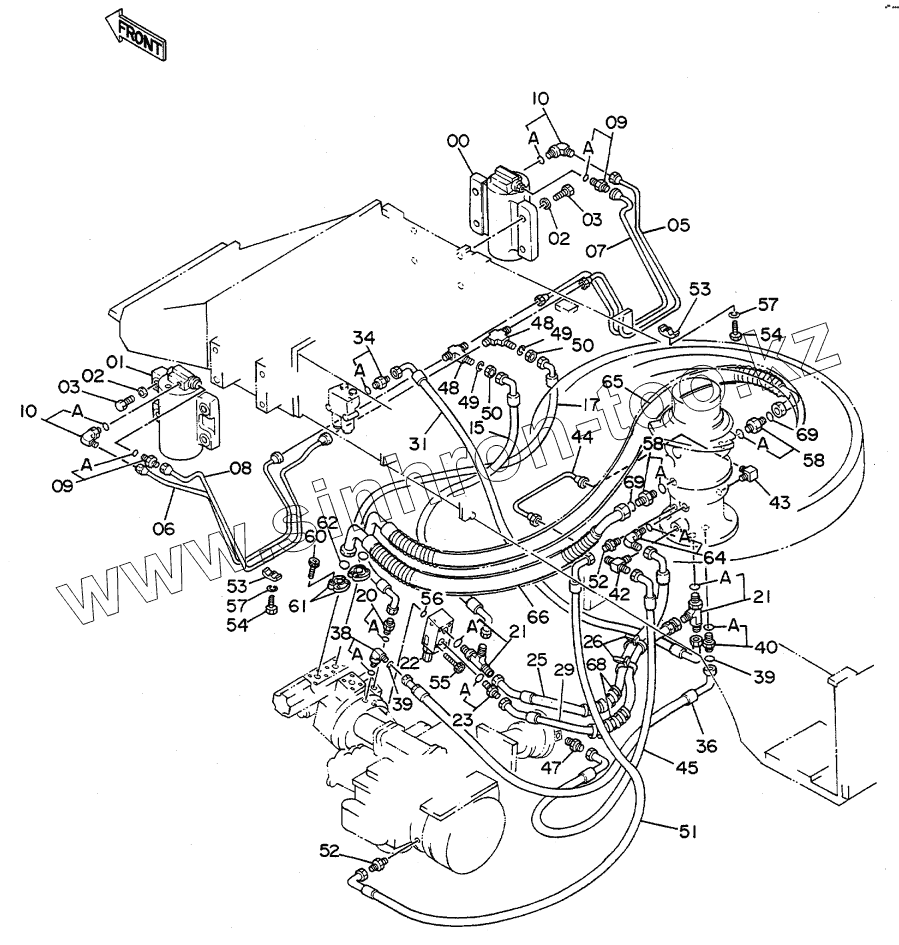

Каталог запасных частей к технике: Hitachi EX-100WD. TRAVEL PIPINGS
00
01
02
02
03
03
05
06
07
08
09
09
09A
09A
10
10
10A
10A
15
17
20
20A
21
21
21A
21A
22
23
23A
25
26
29
31
34
34A
36
38
38A
39
39
40
40A
42
43
44
45
47
48
48
49
49
50
50
51
52
52
53
53
54
54
55
56
57
57
58
58
58A
58A
60
61
62
64
64A
65
66
68
69
69
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 4178119 | CYL. | |
| 01 | 4178120 | CYL. | |
| 02 | 4089822 | WASHER | |
| 03 | J932280 | BOLT | |
| 05 | 8037218 | PIPE | |
| 06 | 8037219 | PIPE | |
| 07 | 8037220 | PIPE | |
| 08 | 8037221 | PIPE | |
| 09 | 4189438 | ADAPTER, S | |
| 09A | 957366 | O-RING | |
| 10 | 4209704 | ELBOW, S | |
| 10A | 4509180 | O-RING | |
| 15 | 4209719 | HOSE | |
| 17 | 4209708 | HOSE | |
| 20 | 4200465 | ADAPTER, S | |
| 20A | 957366 | O-RING | |
| 21 | 4208909 | TEE, S | |
| 21A | 4509180 | O-RING | |
| 22 | 4196456 | VALVE | |
| 23 | 4200465 | ADAPTER, S | |
| 23A | 957366 | O-RING | |
| 25 | 4209717 | HOSE | |
| 26 | 4055312 | CLIP, BAND | |
| 29 | 4209706 | HOSE | |
| 31 | 4209718 | HOSE | |
| 34 | 4200466 | ADAPTER, S | |
| 34A | 4509180 | O-RING | |
| 36 | 4209705 | HOSE | |
| 38 | 4200580 | ELBOW, S | |
| 38A | 4506418 | O-RING | |
| 39 | 4138938 | O-RING | |
| 40 | 4198407 | ADAPTER, S | |
| 40A | 4509180 | O-RING | |
| 42 | 4208914 | TEE, S | |
| 43 | 4086584 | ELBOW | |
| 44 | 8037281 | PIPE | |
| 45 | 4209753 | HOSE | |
| 47 | 4182731 | ADAPTER, S | |
| 48 | 4215394 | TEE, S | |
| 49 | A590912 | WASHER, SPRING | |
| 50 | 4209198 | NUT | |
| 51 | 4209752 | HOSE | |
| 52 | 4182731 | ADAPTER, S | |
| 53 | 4043942 | CLAMP, PIPE | |
| 54 | J900822 | BOLT | |
| 55 | M340650 | BOLT, SOCKET | |
| 56 | 4506408 | O-RING | |
| 57 | A590908 | WASHER, SPRING | |
| 58 | 4189619 | ADAPTER, S | |
| 58A | 4506424 | O-RING | |
| 60 | M341240 | BOLT, SOCKET | |
| 61 | 4085560 | FLANGE | |
| 62 | 966993 | O-RING | |
| 64 | 4154671 | ELBOW | |
| 64A | 4509180 | O-RING | |
| 65 | 4209709 | HOSE | |
| 66 | 4209710 | HOSE | |
| 68 | 4044420 | PROTECTOR | |
| 69 | 4187308 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
