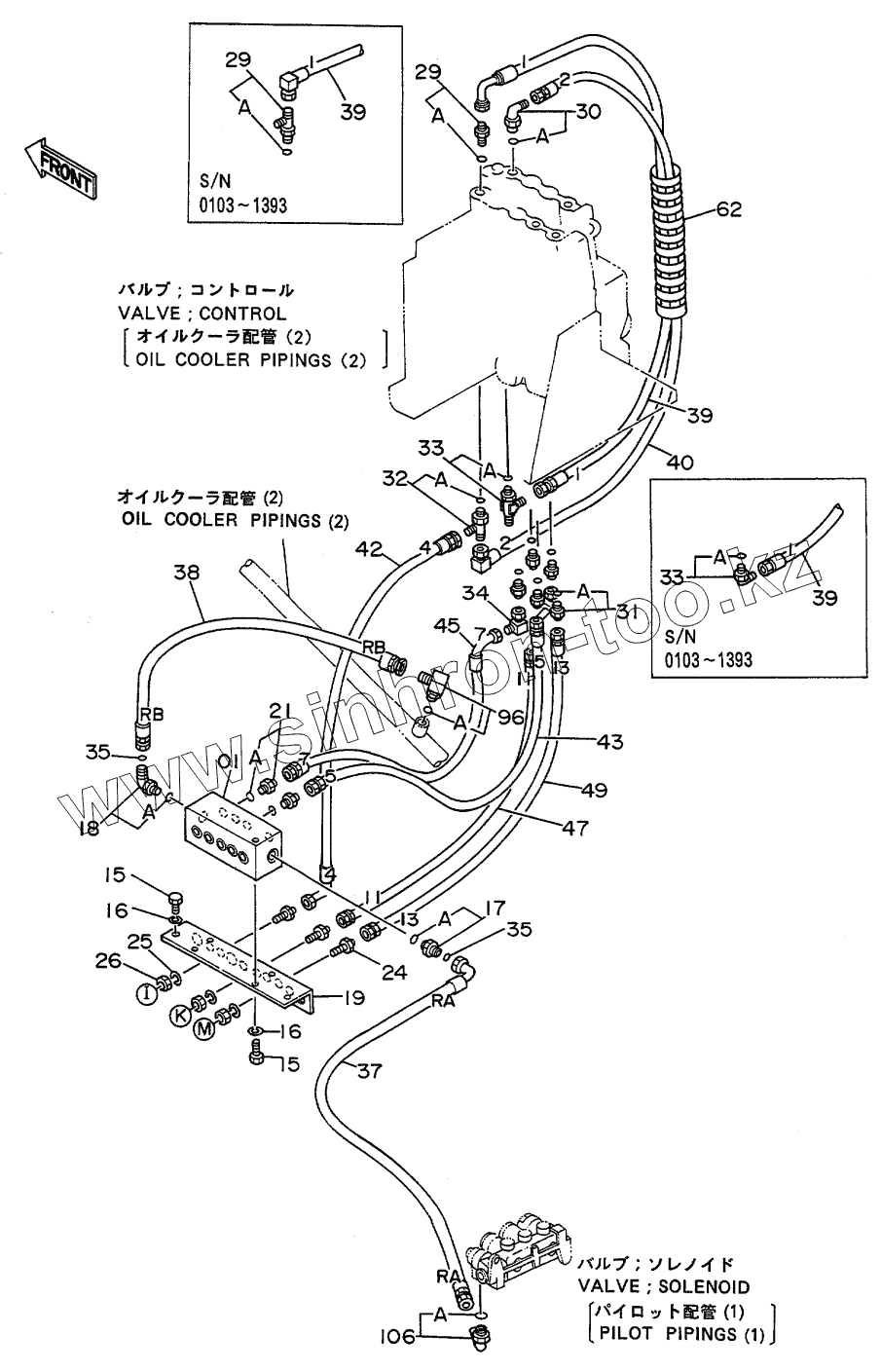

Каталог запасных частей к технике: Hitachi EX-100WD. PILOT PIPINGS (3-1)
01
15
15
16
16
17
17A
18
18A
19
21
21A
24
25
26
29
29
29
29A
29A
30
30A
31
31A
32
32A
33
33
33A
33A
34
35
35
37
38
39
39
39
40
42
43
45
47
49
62
96
96A
106
106A
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 01 | 4192576 | VALVE, FC | |
| 15 | J901020 | BOLT | |
| 16 | A590910 | WASHER, SPRING | |
| 17 | 4189602 | ADAPTER, S | |
| 17A | 4506418 | O-RING | |
| 18 | 4200580 | ELBOW, S | |
| 18A | 4506418 | O-RING | |
| 19 | 3039491 | BRACKET | |
| 21 | 4200466 | ADAPTER, S | |
| 21A | 4509180 | O-RING | |
| 24 | 4202532 | ADAPTER, S | |
| 25 | A590916 | WASHER, SPRING | |
| 26 | 4202531 | NUT | |
| 29 | 4208910 | TEE, S | |
| 29 | 4202422 | ADAPTER, S | |
| 29A | 4509180 | O-RING | |
| 30 | 4208913 | ELBOW, S | |
| 30A | 4509180 | O-RING | |
| 31 | 4200466 | ADAPTER, S | |
| 31A | 4509180 | O-RING | |
| 32 | 4205363 | TEE | |
| 32A | 4509180 | O-RING | |
| 33 | 4154671 | ELBOW | |
| 33 | 4205363 | TEE | |
| 33A | 4509180 | O-RING | |
| 34 | 8038382 | PIPE | |
| 35 | 4138938 | O-RING | |
| 37 | 4208421 | HOSE, NYLON | |
| 38 | 4208410 | HOSE, NYLON | |
| 39 | 4208411 | HOSE, NYLON | |
| 39 | 4283165 | HOSE, NYLON | |
| 40 | 4208412 | HOSE, NYLON | |
| 42 | 4208414 | HOSE, NYLON | |
| 43 | 4203016 | HOSE, NYLON | |
| 45 | 4208416 | HOSE, NYLON | |
| 47 | 4208418 | HOSE, NYLON | |
| 49 | 4203018 | HOSE, NYLON | |
| 62 | 4044420 | PROTECTOR | |
| 96 | 4202112 | ELBOW, S | |
| 96A | 4509180 | O-RING | |
| 106 | 4200580 | ELBOW, S | |
| 106A | 4506418 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
