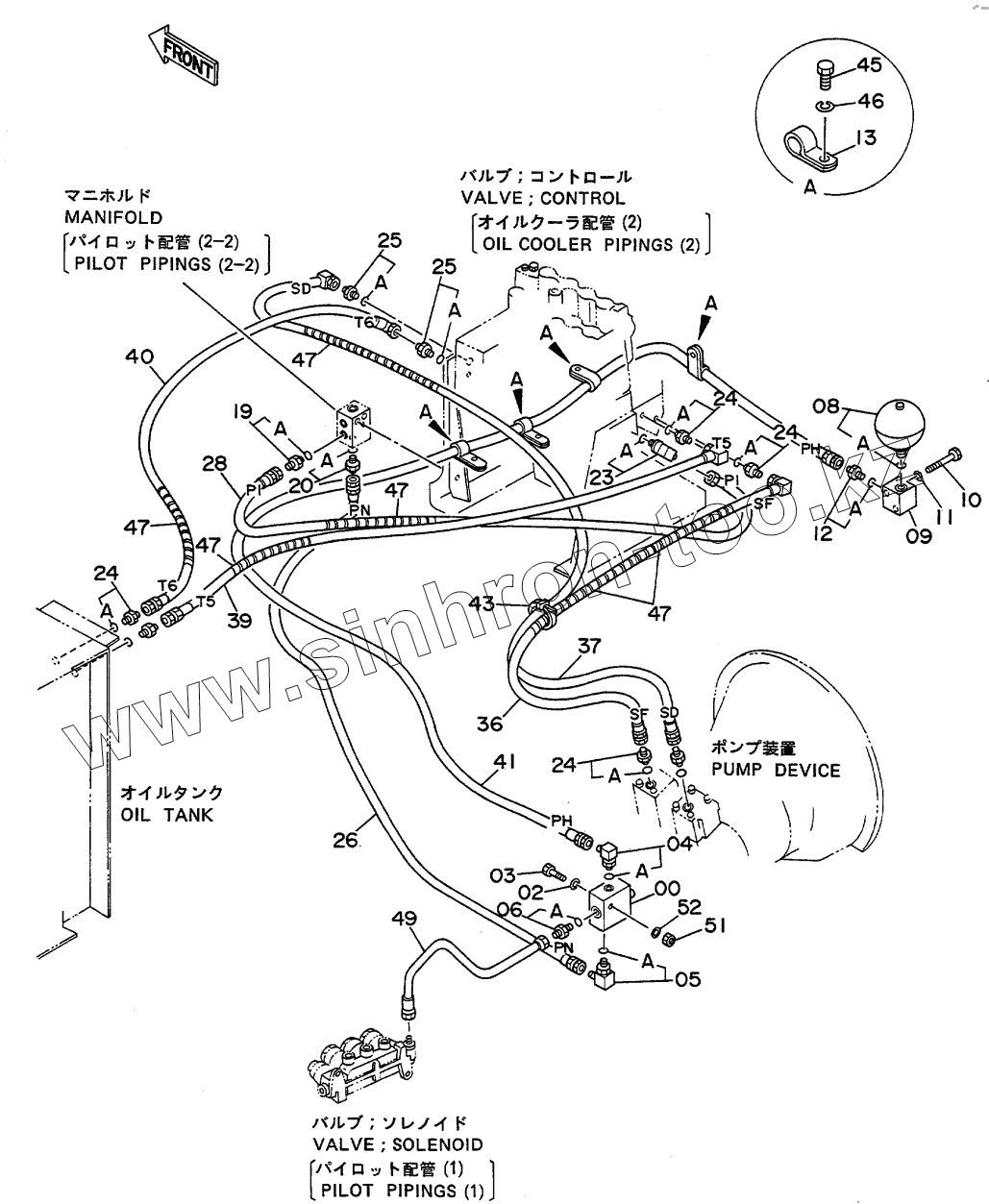

Каталог запасных частей к технике: Hitachi EX-100WD. PILOT PIPINGS (2-1)
00
02
03
04
04A
05
05A
06
06A
08
08A
09
10
11
12
12A
13
19
19A
20
20A
23
23A
24
24
24
24
24A
24A
24A
24A
25
25
25A
25A
26
28
36
37
39
40
41
43
45
46
47
47
47
47
47
49
51
52
52
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 9072360 | VALVE, CHECK | |
| 02 | A590910 | WASHER, SPRING | |
| 03 | J901060 | BOLT | |
| 04 | 4154670 | ELBOW, S | |
| 04A | 957366 | O-RING | |
| 05 | 4154671 | ELBOW | |
| 05A | 4509180 | O-RING | |
| 06 | 4200469 | ADAPTER, S | |
| 06A | 4506418 | O-RING | |
| 08 | 4195978 | ACCUMULATOR | |
| 08A | 954493 | O-RING | |
| 09 | 3036998 | BLOCK | |
| 10 | J901060 | BOLT | |
| 11 | A590910 | WASHER, SPRING | |
| 12 | 4200465 | ADAPTER, S | |
| 12A | 957366 | O-RING | |
| 13 | 4190253 | CLIP | |
| 19 | 4200465 | ADAPTER, S | |
| 19A | 957366 | O-RING | |
| 20 | 4200467 | ADAPTER, S | |
| 20A | 957366 | O-RING | |
| 23 | 4154670 | ELBOW, S | |
| 23A | 957366 | O-RING | |
| 24 | 4200465 | ADAPTER, S | |
| 24A | 957366 | O-RING | |
| 25 | 4209776 | ADAPTER, S | |
| 25A | 957366 | O-RING | |
| 26 | 4214475 | HOSE | |
| 28 | 4200498 | HOSE, NYLON | |
| 36 | 4208404 | HOSE, NYLON | |
| 37 | 4208405 | HOSE, NYLON | |
| 39 | 4203007 | HOSE, NYLON | |
| 40 | 4203008 | HOSE, NYLON | |
| 41 | 4208407 | HOSE | |
| 43 | 4055312 | CLIP, BAND | |
| 45 | J901016 | BOLT | |
| 46 | A590910 | WASHER, SPRING | |
| 47 | 4133527 | PROTECTOR | |
| 49 | 8039220 | PIPE | |
| 51 | J950010 | NUT | |
| 52 | A590110 | WASHER, PLANE | |
| 52 | J217083 | WASHER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
