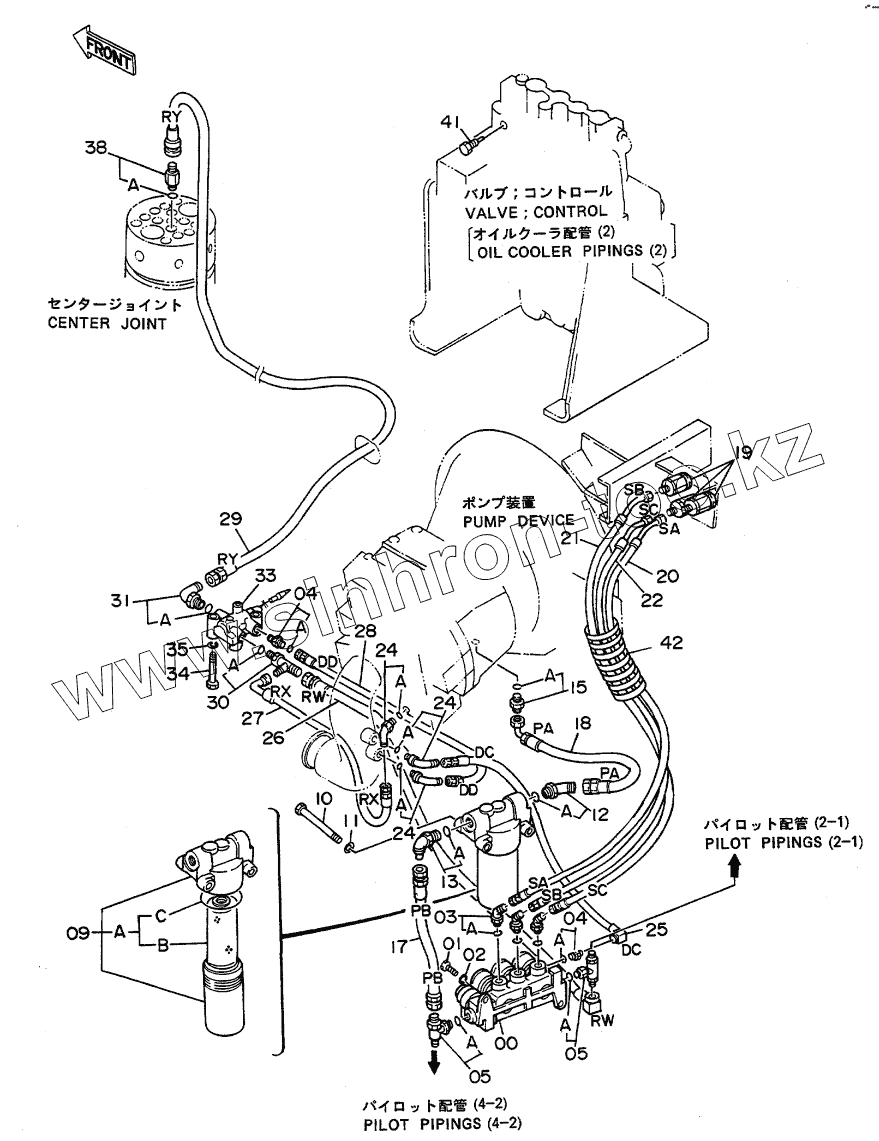

Каталог запасных частей к технике: Hitachi EX-100WD. PILOT PIPINGS (1)
00
01
02
03
03A
04
04
04A
04A
05
05
05A
05A
09
09A
09B
09C
10
11
12
12A
13
13A
15
15A
17
18
19
20
21
22
24
24
24
24A
24A
24A
25
26
27
28
29
30
30
30A
31
31A
33
34
35
38
38A
41
42
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 4196411 | VALVE, SOLENOID | |
| 01 | J901030 | BOLT | |
| 02 | A590910 | WASHER, SPRING | |
| 03 | 4193826 | ELBOW, S | |
| 03A | 957366 | O-RING | |
| 04 | 4200465 | ADAPTER, S | |
| 04A | 957366 | O-RING | |
| 05 | 4208912 | TEE, S | |
| 05A | 4509180 | O-RING | |
| 09 | 4191300 | FILTER, OIL | |
| 09A | 4207841 | ELEMENT, OIL | |
| 09B | 4191301 | ELEMENT, FILTER | |
| 09C | A811065 | O-RING | |
| 10 | J901000 | BOLT | |
| 11 | A590910 | WASHER, SPRING | |
| 12 | 4200474 | ELBOW, S | |
| 12A | 4506418 | O-RING | |
| 13 | 4200471 | ELBOW, S | |
| 13A | 4506418 | O-RING | |
| 15 | 4200466 | ADAPTER, S | |
| 15A | 4509180 | O-RING | |
| 17 | 4207997 | HOSE, NYLON | |
| 18 | 4210344 | HOSE | |
| 19 | 4187914 | CYL. | |
| 20 | 4210329 | HOSE | |
| 21 | 4210328 | HOSE | |
| 22 | 4210327 | HOSE | |
| 24 | 415Ш0 | ELBOW, S | |
| 24A | 957366 | O-RING | |
| 25 | 4207998 | HOSE, NYLON | |
| 26 | 4207999 | HOSE | |
| 27 | 4208400 | HOSE | |
| 28 | 4208401 | HOSE | |
| 29 | 4208402 | HOSE | |
| 30 | 4208908 | TEE, S | |
| 30 | 4219346 | TEE, S | |
| 30A | 957366 | O-RING | |
| 31 | 4156434 | ELBOW, S | |
| 31A | 957366 | O-RING | |
| 33 | 4200389 | VALVE, SOLENOID | |
| 34 | J900865 | BOLT | |
| 35 | A590908 | WASHER, SPRING | |
| 38 | 4209931 | ADAPTER, S | |
| 38A | 957366 | O-RING | |
| 41 | 4209374 | PLUG | |
| 42 | 4044420 | PROTECTOR |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
