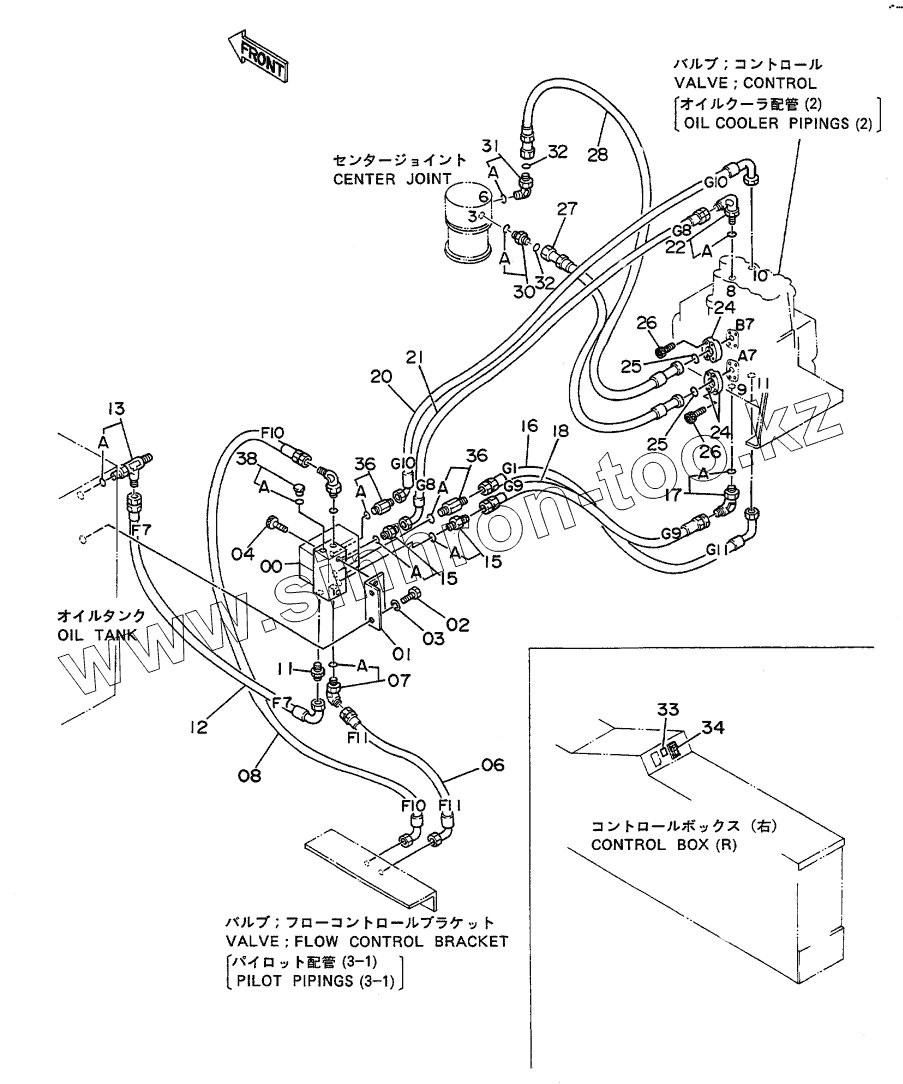

Каталог запасных частей к технике: Hitachi EX-100WD. Outrigger Pipings (Superstructure)
00
01
02
03
04
06
07
07A
08
11
12
13
13A
15
15
15A
15A
16
17
17A
18
20
21
22
22A
24
24
25
25
26
26
27
28
30
30A
31
31A
32
32
33
34
36
36
36A
36A
38
38A
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 4199095 | VALVE, SOLENOID | |
| 01 | 4217247 | BRACKET | |
| 02 | J901020 | BOLT | |
| 03 | A590910 | WASHER, SPRING | |
| 04 | M340860 | BOLT, SOCKET | |
| 06 | 4217325 | HOSE, NYLON | |
| 07 | 4200472 | ELBOW, S | |
| 07A | 957366 | O-RING | |
| 08 | 4217324 | HOSE, NYLON | |
| 09 | 4156434 | ELBOW, S | |
| 09A | 957366 | O-RING | |
| 11 | 4154651 | ADAPTER, S | |
| 12 | 4217326 | HOSE, NYLON | |
| 13 | 4208909 | TEE, S | |
| 13A | 4509180 | O-RING | |
| 15 | 4200467 | ADAPTER, S | |
| 15A | 957366 | O-RING | |
| 16 | 4217328 | HOSE, NYLON | |
| 17 | 4154671 | ELBOW | |
| 17A | 4509180 | O-RING | |
| 18 | 4217327 | HOSE, NYLON | |
| 20 | 4239766 | HOSE, NYLON | |
| 21 | 4217329 | HOSE, NYLON | |
| 22 | 4208913 | ELBOW, S | |
| 22A | 4509180 | O-RING | |
| 24 | 4510173 | FLANGE, SPLIT | |
| 25 | 4510167 | O-RING | |
| 26 | M340825 | BOLT, SOCKET | |
| 27 | 4217331 | HOSE | |
| 28 | 4217332 | HOSE | |
| 30 | 4189602 | ADAPTER, S | |
| 30A | 4506418 | O-RING | |
| 31 | 4200580 | ELBOW, S | |
| 31A | 4506418 | O-RING | |
| 32 | 4138938 | O-RING | |
| 33 | 4225029 | NAME-PLATE | |
| 34 | 4209355 | SWITCH | |
| 36 | 4223934 | ADAPTER, S | |
| 36A | 957366 | O-RING | |
| 38 | 4093624 | PLUG | |
| 38A | 957366 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
