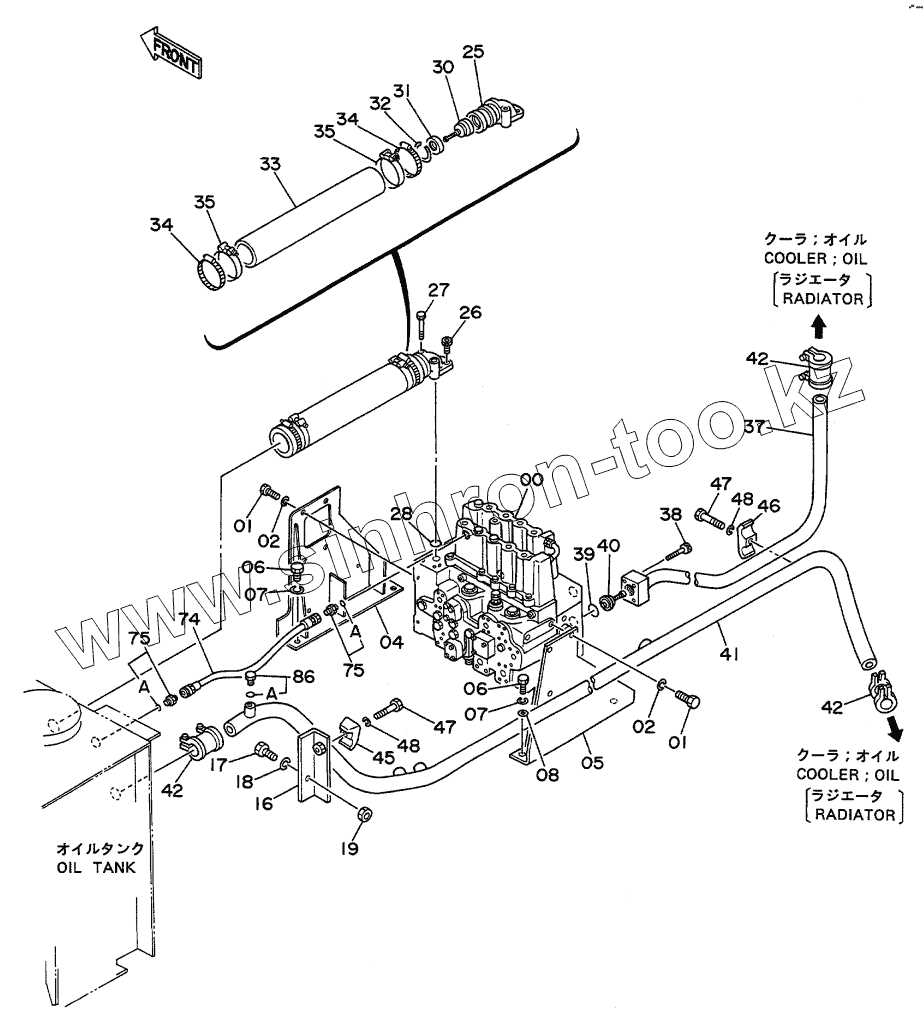

Каталог запасных частей к технике: Hitachi EX-100WD. OIL COOLER PIPINGS (2)
00
01
01
02
02
04
05
06
06
07
07
08
16
17
18
19
25
26
27
28
30
31
32
33
34
34
35
35
35
37
38
39
40
41
42
42
42
45
46
47
47
48
48
74
75
75
75A
75A
86
86A
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 4191114 | VALVE, CONTROL | |
| 01 | J901430 | BOLT | |
| 02 | A590914 | WASHER, SPRING | |
| 04 | 8037416 | BRACKET | |
| 05 | 8037415 | BRACKET | |
| 06 | J901235 | BOLT | |
| 07 | A590912 | WASHER, SPRING | |
| 08 | 4086891 | WASHER | |
| 16 | 9728378 | SUPPORT | |
| 17 | J901235 | BOLT | |
| 18 | A590912 | WASHER, SPRING | |
| 19 | J950012 | NUT | |
| 25 | 2021613 | MANIFOLD | |
| 26 | M341022 | BOLT, SOCKET | |
| 27 | Н341065 | BOLT, SOCKET | |
| 28 | A811035 | O-RING | |
| 30 | 4188627 | VALVE | |
| 31 | 4188628 | RING | |
| 32 | 991721 | RING, RETAINING | |
| 33 | 4098558 | HOSE, RUBBER | |
| 34 | 4504491 | CLAMP, HOSE | |
| 35 | 4156850 | CLAMP, HOSE | |
| 35 | 4263764 | CLAMP, HOSE | |
| 37 | 8038521 | PIPE, RETURN | |
| 38 | M341056 | BOLT, SOCKET | |
| 39 | 4203137 | O-RING | |
| 40 | 4202625 | VALVE | |
| 41 | 7017585 | PIPE, RETURN | |
| 42 | 4071213 | COUPLING | |
| 45 | 4190127 | CLAMP, PIPE | |
| 46 | 4189860 | CLAMP, PIPE | |
| 47 | J901265 | BOLT | |
| 48 | A590912 | WASHER, SPRING | |
| 74 | 4203010 | HOSE, NYLON | |
| 75 | 4200465 | ADAPTER, S | |
| 75A | 957366 | O-RING | |
| 86 | 4092534 | PLUG | |
| 86A | 4509180 | O-RING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
