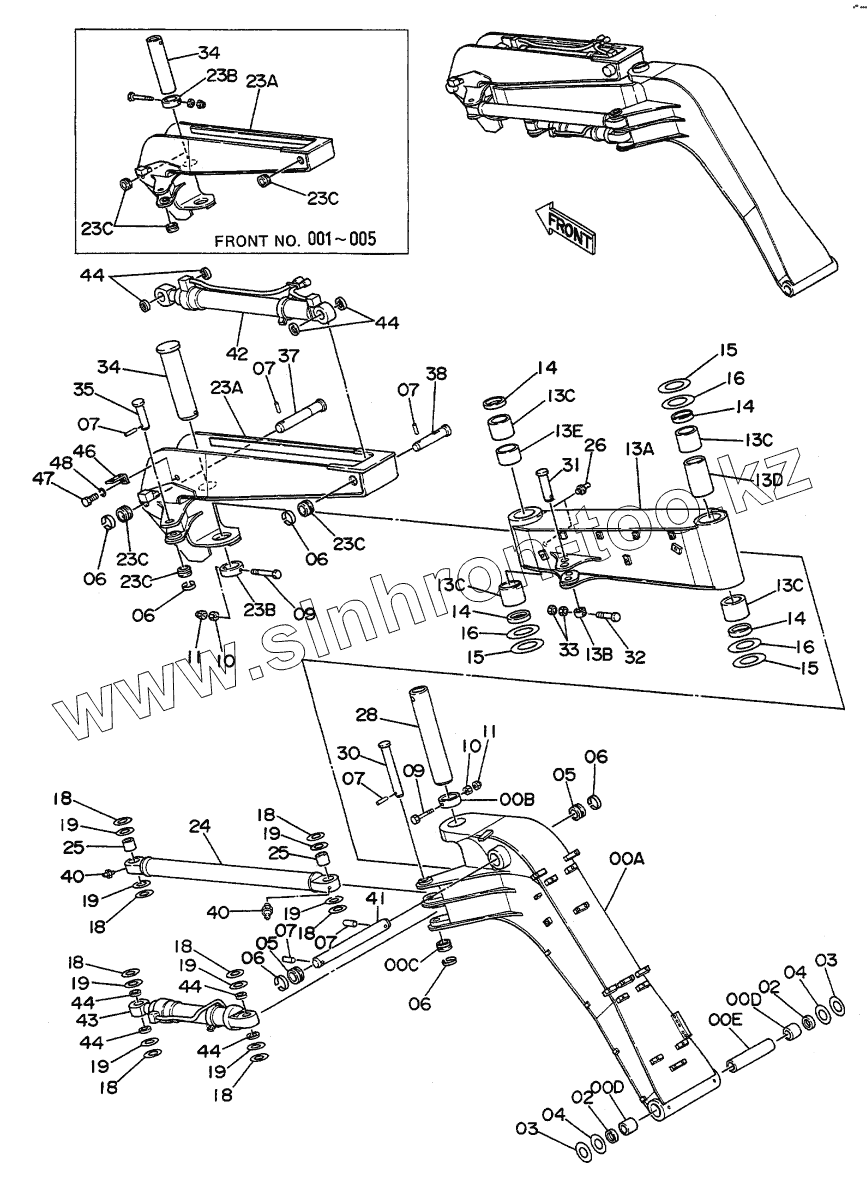

Каталог запасных частей к технике: Hitachi EX-100WD. OFFSET BOOM
00
00A
00B
00C
00D
00D
00E
02
02
03
03
04
04
05
05
06
06
06
06
06
06
07
07
07
07
07
07
09
09
10
10
11
11
13
13A
13B
13C
13C
13C
13C
13D
13E
14
14
14
14
15
15
15
16
16
16
18
18
18
18
18
18
18
18
19
19
19
19
19
19
19
19
23
23
23A
23A
23B
23B
23C
23C
23C
23C
23C
24
25
25
26
28
30
31
32
33
34
34
34
35
37
38
40
40
41
41
42
43
44
44
44
44
44
44
46
47
48
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 9073646 | BOOM, LOWER ASSY | |
| 00A | 5002056 | BOOM, LOWER | |
| 00B | 4178803 | STOPPER | |
| 00C | 4197033 | STOPPER | |
| 00D | 4196556 | BUSHING | |
| 00E | 4196559 | PIPE | |
| 02 | 4065687 | SEAL, DUST | |
| 03 | 4075359 | WASHER 1.0 | |
| 04 | 4075360 | WASHER 2.0 | |
| 05 | 4197033 | STOPPER | |
| 06 | 4065688 | RING | |
| 07 | 4065689 | PIN | |
| 09 | J932416 | BOLT | |
| 10 | J951024 | NUT | |
| 11 | M660024 | NUT, U | |
| 13 | 9073647 | BOOM, UPPER ASSY | |
| 13A | 6008453 | BOOM, UPPER | |
| 13B | 4200585 | STOPPER | |
| 13C | 4178906 | BUSHING | |
| 13D | 4202362 | PIPE | |
| 13E | 4202439 | PIPE | |
| 14 | 4178802 | SEAL, DUST | |
| 15 | 4178907 | SPACER 1.2 | |
| 16 | 4146960 | SPACER 1.0 | |
| 18 | 4179808 | WASHER 2.0 | |
| 19 | 4179807 | WASHER 1.0 | |
| 23 | 9073648 | STAY ASSY | |
| 23 | 9078711 | STAY ASSY | |
| 23A | 6008452 | STAY, CYL | |
| 23B | 4178803 | STOPPER | |
| 23C | 4197033 | STOPPER | |
| 24 | 9727891 | STAY | |
| 25 | 4178714 | BUSHING | |
| 26 | J75581 | FITTING, GREASE | |
| 28 | 3033355 | PIN | |
| 30 | 3033352 | PIN | |
| 31 | 3033351 | PIN | |
| 32 | J931604 | BOLT | |
| 33 | J951016 | NUT | |
| 34 | 3033356 | PIN | |
| 34 | 3041066 | PIN | |
| 35 | 3033354 | PIN | |
| 37 | 3038186 | PIN | |
| 38 | 3040350 | PIN | |
| 40 | J75481 | FITTING, GREASE | |
| 41 | 3037074 | PIN | |
| 41 | 3042879 | PIN | |
| 42 | 4199485 | CYL, ARM | |
| 43 | 4199486 | CYL, OFF SET | |
| 44 | 4094086 | SEAL, DUST | |
| 46 | 4224631 | BRACKET | |
| 47 | J901425 | BOLT | |
| 48 | A590914 | WASHER, SPRING |
