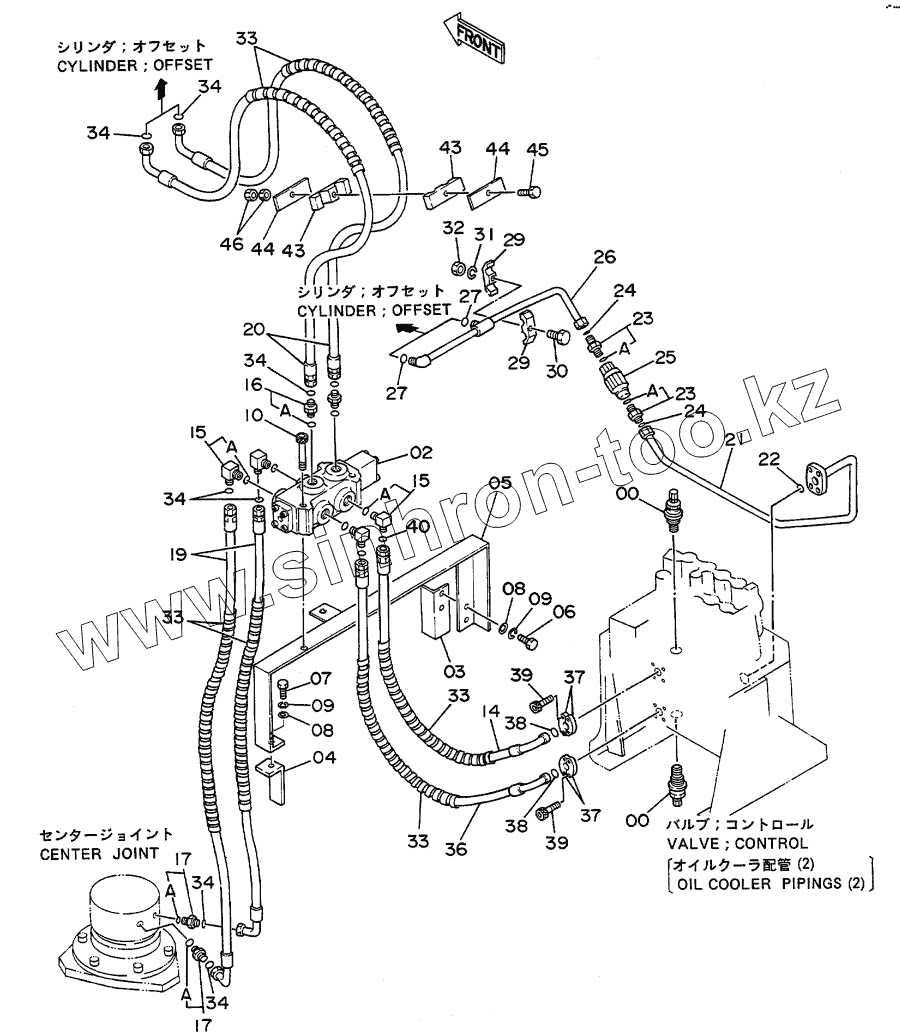

Каталог запасных частей к технике: Hitachi EX-100WD. MAIN PIPINGS (OFFSET BOOM) <WITH OUTRIGGER>
00
00
02
02
03
04
05
06
07
08
08
09
09
10
14
15
15
15A
15A
16
16A
17
17
17A
17A
19
20
21
22
23
23
23A
23A
24
24
25
26
27
27
29
29
30
31
32
33
33
33
33
34
34
34
34
34
34
36
37
37
38
38
39
39
40
43
43
44
44
45
45
46
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 0309459 | VALVE | |
| 02 | 4201553 | VALVE, CONTROL | |
| 02 | 4263455 | VALVE, CONTROL | |
| 03 | 9727530 | BRACKET | |
| 04 | 9729983 | BRACKET | |
| 05 | 8041579 | SUPPORT | |
| 06 | J901230 | BOLT | |
| 07 | J901235 | BOLT | |
| 08 | A590112 | WASHER, PLANE | |
| 09 | A590912 | WASHER, SPRING | |
| 10 | M341290 | BOLT, SOCKET | |
| 14 | 4219358 | HOSE | |
| 15 | 4217341 | ELBOW, S | |
| 15A | 4506424 | O-RING | |
| 16 | 4188623 | ADAPTER, S | |
| 16A | 4506424 | O-RING | |
| 17 | 4189602 | ADAPTER, S | |
| 17A | 4506418 | O-RING | |
| 19 | 4218087 | HOSE | |
| 20 | 4219356 | HOSE | |
| 21 | 8040548 | PIPE | |
| 22 | 4506420 | O-RING | |
| 23 | 4189619 | ADAPTER, S | |
| 23A | 4506424 | O-RING | |
| 24 | 4187308 | O-RING | |
| 25 | 4215142 | VALVE, SLOWRETUR | |
| 26 | 8040549 | PIPE | |
| 27 | 4138938 | O-RING | |
| 29 | 4189858 | СLАМР, РIРЕ | |
| 30 | J901255 | BOLT | |
| 31 | A590912 | WASHER, SPRING | |
| 32 | J950012 | NUT | |
| 33 | 4044420 | PROTECTOR | |
| 34 | 4138938 | O-RING | |
| 36 | 4217331 | HOSE | |
| 37 | 4510173 | FLANGE, SPLIT | |
| 38 | 4510167 | O-RING | |
| 39 | M340825 | BOLT, SOCKET | |
| 40 | 4138938 | O-RING | |
| 43 | 4086899 | CLAMP | |
| 44 | 4229251 | PLATE | |
| 45 | M211071 | BOLT | |
| 45 | J901070 | BOLT | |
| 46 | J950010 | NUT |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
