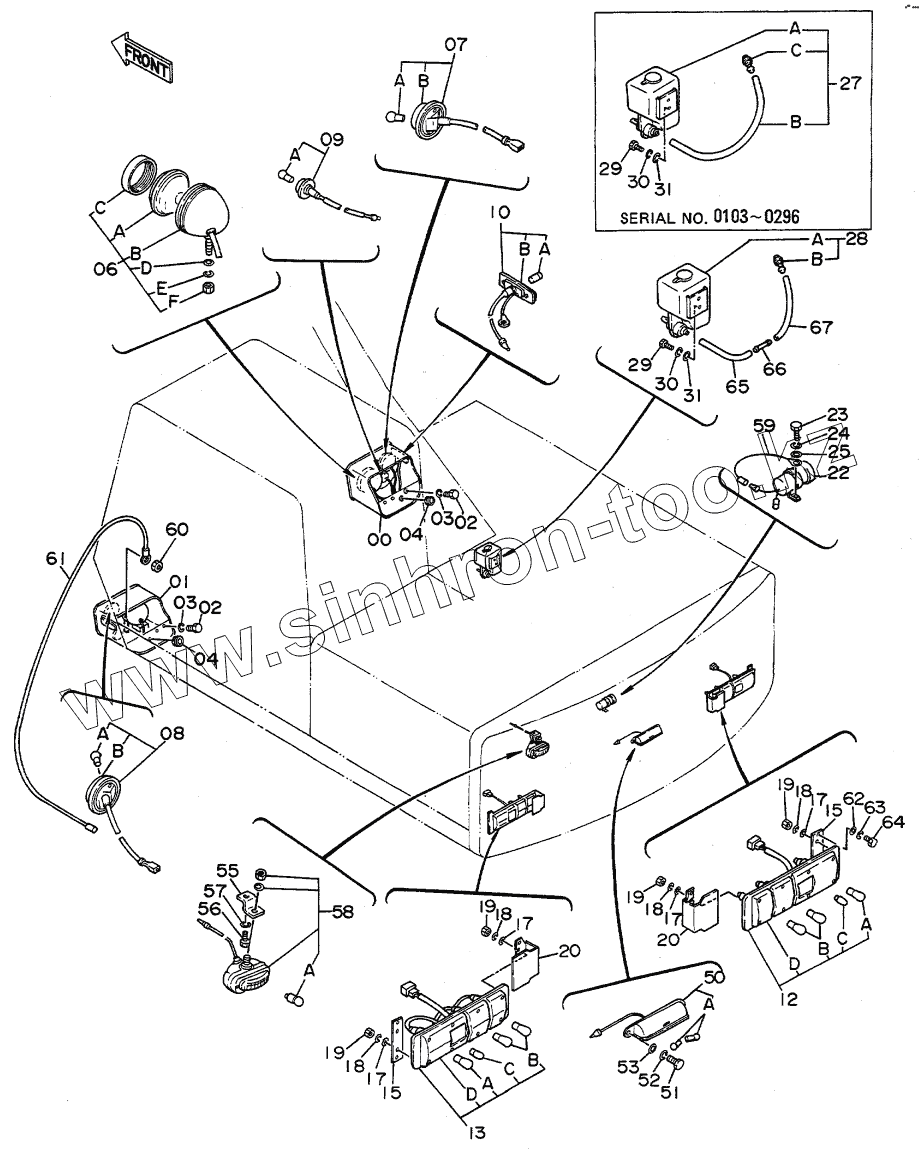

Каталог запасных частей к технике: Hitachi EX-100WD. ELECTRIC PARTS (6)
00
01
02
02
03
03
04
04
06
06A
06B
06C
060
06E
06F
07
07A
07B
08
08A
08B
09
09A
10
10A
10B
12
12A
12B
12C
12D
13
13A
13B
13C
13D
15
15
17
17
17
17
17
18
18
18
18
19
19
19
19
20
20
22
22
23
24
25
27
27A
27B
27C
28A
286
29
29
30
30
31
31
50
50A
51
52
53
55
56
57
58
58A
59
60
61
62
63
64
65
66
66
67
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 6008836 | BRACKET | |
| 01 | 6008837 | BRACKET CD | |
| 02 | J901230 | BOLT | |
| 03 | A590912 | WASHER, SPRING | |
| 04 | 965958 | BUSHING | |
| 06 | 973472 | LAMP | |
| 06A | 4107350 | BULB | |
| 06B | 4123647 | HOUSING | |
| 06C | 4163452 | BAND | |
| 060 | A590114 | WASHER | |
| 06E | A590914 | WASHER, SPRING | |
| 06F | M501411 | NUT | |
| 07 | 4123645 | LAMP | |
| 07A | 4174814 | BULB | |
| 07B | 4182178 | LENS | |
| 08 | 4123644 | LAMP | |
| 08A | 4174814 | BULB | |
| 08B | 4182178 | LENS | |
| 09 | 4123422 | LAMP | |
| 09A | 4174815 | BULB | |
| 10 | 4174253 | LAMP | |
| 10A | 4174816 | BULB | |
| 10B | 4182179 | LENS | |
| 12 | 4149145 | LAMP, REAR | |
| 12A | 4174817 | BULB | |
| 12B | 4174818 | BULB | |
| 12C | 4174819 | BULB | |
| 12D | 4182180 | LENS | |
| 13 | 4149146 | LAMP, REAR | |
| 13A | 4174817 | BULB | |
| 13B | 4174818 | BULB | |
| 13C | 4174819 | BULB | |
| 13D | 4182180 | LENS | |
| 15 | 4185415 | PLATE | |
| 17 | A590105 | WASHER, PLANE | |
| 17 | A590106 | WASHER | |
| 18 | A590905 | WASHER, SPRING | |
| 19 | M500504 | NUT | |
| 20 | 3041212 | COVER | |
| 22 | 4011946 | ALARM | |
| 22 | 4232093 | ALARM | |
| 23 | J900814 | BOLT | |
| 24 | A590908 | WASHER, SPRING | |
| 25 | A590108 | WASHER, PLANE | |
| 27 | 4087004 | WINDOW, WASHER | |
| 27A | 4203595 | WINDOW, WASHER | |
| 27B | 4107672 | HOSE, VINYL | |
| 27C | 4107673 | NOZZLE | |
| 28A | 4203595 | WINDOW, WASHER | |
| 286 | 4107673 | NOZZLE | |
| 29 | J900612 | BOLT | |
| 30 | A590906 | WASHER, SPRING | |
| 31 | A590106 | WASHER | |
| 50 | 4104070 | LAMP | |
| 50A | 4037222 | BULB | |
| 51 | J900614 | BOLT | |
| 52 | A590906 | WASHER, SPRING | |
| 53 | A590106 | WASHER | |
| 55 | 4210513 | BRACKET | |
| 56 | J901025 | BOLT | |
| 57 | A590910 | WASHER, SPRING | |
| 58 | 4174856 | LAMP | |
| 58A | 4037222 | BULB | |
| 59 | 4221937 | HARNESS, WIRE | |
| 60 | M500605 | NUT | |
| 61 | 4223772 | HARNESS, WIRE | |
| 62 | A590106 | WASHER | |
| 63 | A590906 | WASHER, SPRING | |
| 64 | J900614 | BOLT | |
| 65 | 4229427 | HOSE, VINYL | |
| 66 | 4229428 | ADAPTER | |
| 66 | 4254237 | JOINT | |
| 67 | 4216876 | HOSE, VINYL |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
