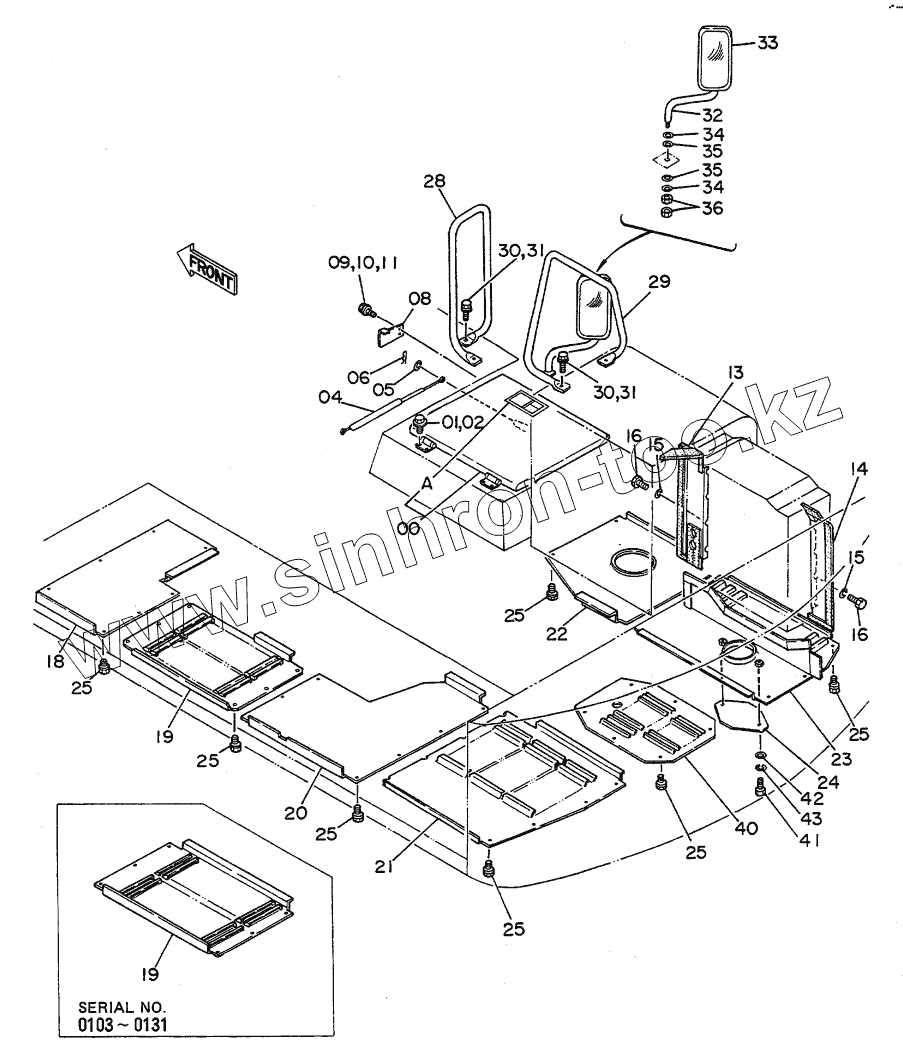

Каталог запасных частей к технике: Hitachi EX-100WD. COVER (4)
00
00A
01
02
02
04
05
06
08
09
10
11
11
13
14
15
15
16
16
18
19
19
19
19
20
21
22
23
24
25
25
25
25
25
25
25
28
29
30
30
30
30
31
31
32
33
34
34
35
35
36
40
41
41
42
43
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 7017630 | COVER | |
| 00A | 7017862 | DOOR LOCK | |
| 01 | A590910 | WASHER, SPRING | |
| 02 | J901020 | BOLT | |
| 02 | J011020 | BOLT, SEMS | |
| 04 | 4196560 | STAY | |
| 05 | A590108 | WASHER, PLANE | |
| 06 | 4022697 | PIN, LOCK | |
| 08 | 4187846 | BRACKET | |
| 09 | A590108 | WASHER, PLANE | |
| 10 | A590908 | WASHER, SPRING | |
| 11 | J900820 | BOLT | |
| 11 | J020820 | BOLT, SEMS | |
| 13 | 9726785 | COVER | |
| 14 | 8037330 | COVER | |
| 15 | A590910 | WASHER, SPRING | |
| 16 | J901016 | BOLT | |
| 18 | 3035538 | COVER | |
| 19 | 3038062 | COVER | |
| 19 | 3039937 | COVER | |
| 20 | 3038176 | COVER | |
| 21 | 3037156 | COVER | |
| 22 | 3035267 | COVER | |
| 23 | 7017673 | COVER | |
| 24 | 4196884 | COVER | |
| 25 | J031230 | BOLT, SEMS | |
| 28 | 8039700 | STAY | |
| 29 | 8039690 | STAY | |
| 30 | J901225 | BOLT | |
| 30 | J011225 | BOLT, SEMS | |
| 31 | A590912 | WASHER, SPRING | |
| 32 | 4209927 | STAY | |
| 33 | 4165676 | MIRROR | |
| 34 | A590112 | WASHER, PLANE | |
| 35 | 4172172 | SPRING, DISC | |
| 36 | J950012 | NUT | |
| 40 | 3037155 | COVER | |
| 41 | J031230 | BOLT, SEMS | |
| 41 | J901225 | BOLT | |
| 42 | A590112 | WASHER, PLANE | |
| 43 | A590912 | WASHER, SPRING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
