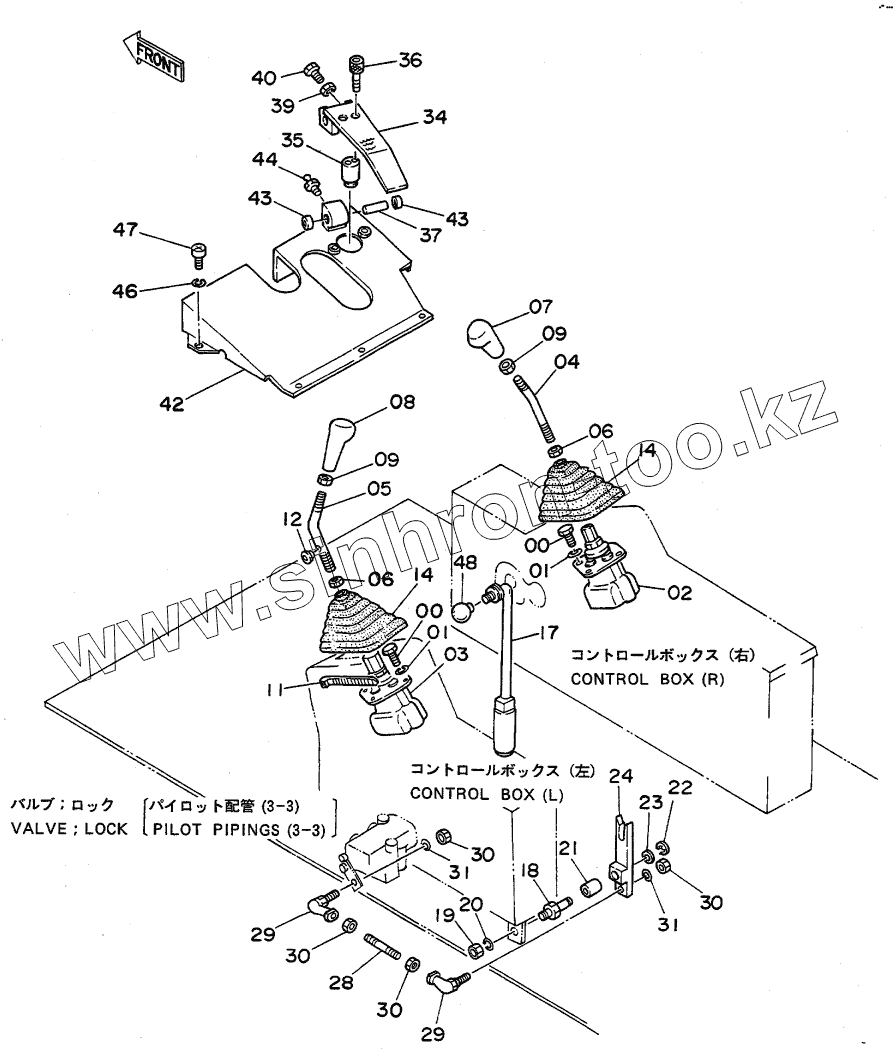

Каталог запасных частей к технике: Hitachi EX-100WD. CONTROL LEVER
J900616
J900616
1
1
2
2
3
3
3
4
5
6
6
7
8
9
9
11
12
14
14
17
18
19
20
21
22
23
24
28
29
29
30
30
30
30
31
31
34
35
36
37
39
40
42
43
43
44
46
47
48
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| J900616 | J900616 | BOLT | |
| 1 | A590906 | WASHER, SPRING | |
| 2 | 9107500 | VALVE, PILOT | |
| 2 | 9077345 | VALVE, PILOT | |
| 3 | 9077345 | VALVE, PILOT | |
| 3 | 9100155 | VALVE, PILOT | |
| 3 | 9107501 | VALVE, PILOT | |
| 4 | 8038793 | LEVER | |
| 5 | 8038794 | LEVER | |
| 6 | J950014 | NUT | |
| 7 | 4196693 | GRIP | |
| 8 | 4196694 | GRIP | |
| 9 | 4201107 | NUT | |
| 11 | 4055311 | CLIP, BAND | |
| 12 | 487081 | BUSHING, RUBBER | |
| 14 | 2024493 | BOOT | |
| 17 | 8039635 | lock, SWING | |
| 18 | 4214100 | SHAFT | |
| 19 | J952014 | NUT | |
| 20 | A590914 | WASHER, SPRING | |
| 21 | 4173387 | BUSHING | |
| 22 | 991337 | RING, RETAINING | |
| 23 | A590114 | WASHER | |
| 24 | 9729064 | LEVER | |
| 28 | 4214099 | ROD | |
| 29 | 4056018 | JOINT, BALL | |
| 30 | M500807 | NUT | |
| 31 | A590908 | WASHER, SPRING | |
| 34 | 8040357 | PEDAL | |
| 35 | 4214729 | PAD | |
| 36 | M340614 | BOLT, SOCKET | |
| 37 | 4181777 | PIN | |
| 39 | M500605 | NUT | |
| 40 | J900620 | BOLT | |
| 42 | 7019063 | BRACKET | |
| 43 | 4180358 | BRG., NEEDLE | |
| 44 | J75581 | FITTING, GREASE | |
| 46 | A590910 | WASHER, SPRING | |
| 47 | J901025 | BOLT | |
| 48 | 4143169 | GRIP |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
