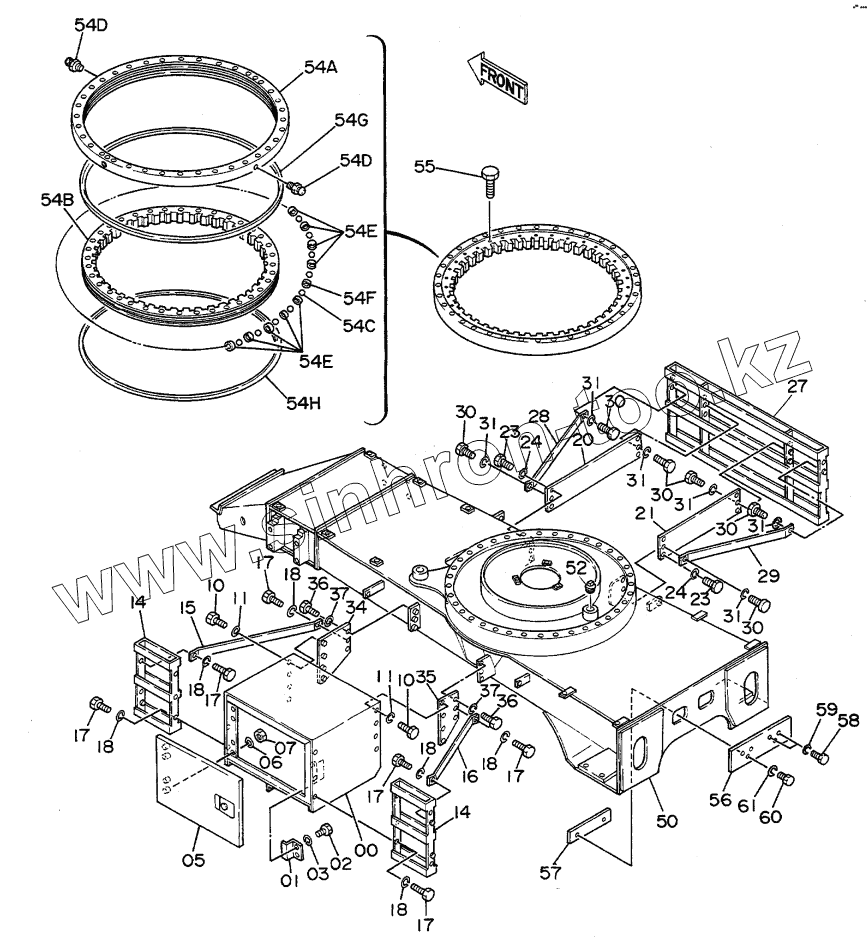

Каталог запасных частей к технике: Hitachi EX-100WD. CHASSIS
00
00
01
02
03
05
05
06
07
10
10
11
11
14
14
15
16
17
17
17
17
17
17
18
18
18
18
18
18
20
21
23
23
24
24
27
28
29
30
30
30
30
30
31
31
31
31
31
31
34
35
36
36
37
37
50
52
54
54A
54B
54C
54D
54D
54E
54E
54F
54G
54H
55
56
57
58
59
60
61
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 00 | 7018670 | B0X, TOOL | |
| 00 | 7019504 | B0X, TOOL | |
| 01 | 4209836 | STOPPER | |
| 02 | J901230 | BOLT | |
| 03 | A590912 | WASHER, SPRING | |
| 05 | 7017384 | COVER | |
| 05 | 7019505 | COVER | |
| 06 | A590912 | WASHER, SPRING | |
| 07 | J950012 | NUT | |
| 10 | J901230 | BOLT | |
| 11 | A590912 | WASHER, SPRING | |
| 14 | 8039529 | STEP | |
| 15 | 4209880 | STAY | |
| 16 | 4209879 | STAY | |
| 17 | J901230 | BOLT | |
| 18 | A590912 | WASHER, SPRING | |
| 20 | 4209881 | BRACKET | |
| 21 | 4196454 | BRACKET | |
| 23 | J901230 | BOLT | |
| 24 | A590912 | WASHER, SPRING | |
| 27 | 7018652 | STEP | |
| 28 | 4209880 | STAY | |
| 29 | 4209879 | STAY | |
| 30 | J901230 | BOLT | |
| 31 | A590912 | WASHER, SPRING | |
| 34 | 9728669 | BRACKET | |
| 35 | 9728670 | BRACKET | |
| 36 | J901230 | BOLT | |
| 37 | A590912 | WASHER, SPRING | |
| 50 | 6008709 | FRAME, CHASSIS | |
| 52 | J75214 | PLUG | |
| 54 | 6008417 | BRG., SWINGCIRCL | |
| 54A | RACE | RACE | |
| 54B | RACE | RACE | |
| 54C | 4127741 | BALL | |
| 54D | J75481 | FITTING, GREASE | |
| 54E | 4127708 | SUPPORT | |
| 54F | 4127707 | SUPPORT | |
| 54G | 4188127 | SEAL | |
| 54H | 4188128 | SEAL | |
| 55 | J931600 | BOLT | |
| 56 | 4209833 | PLATE | |
| 57 | 4209834 | SEAT, SCREW | |
| 58 | J901050 | BOLT | |
| 59 | A590910 | WASHER, SPRING | |
| 60 | J901225 | BOLT | |
| 61 | A590912 | WASHER, SPRING |
