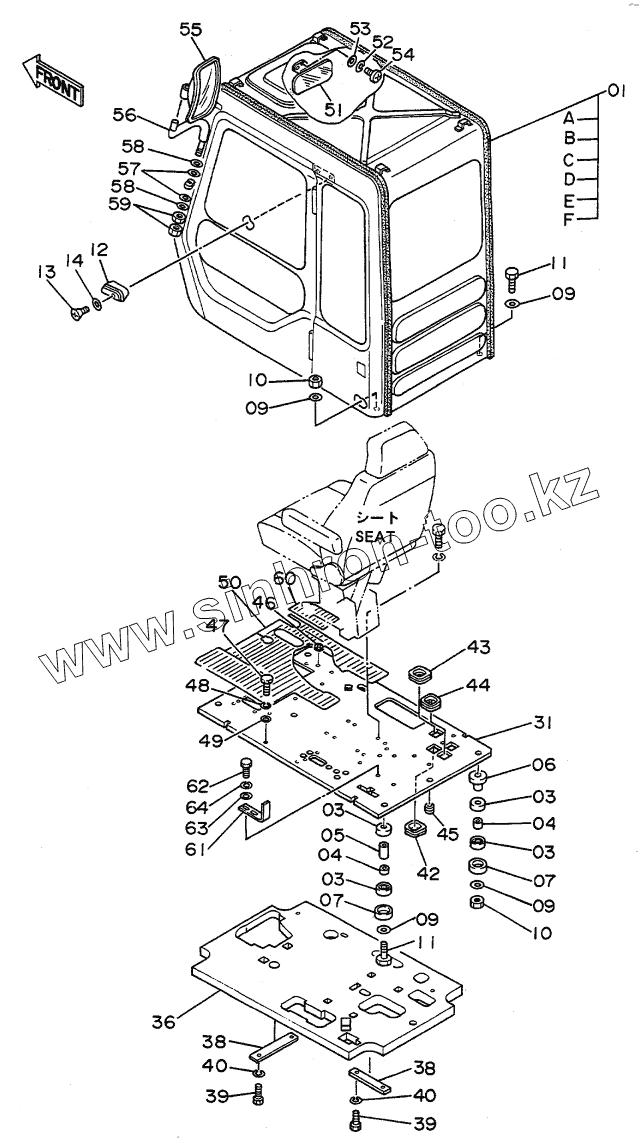

Каталог запасных частей к технике: Hitachi EX-100WD. CAB GROUP
01
01A
01B
01C
01D
01E
01F
03
03
03
03
04
04
05
06
07
07
09
09
09
09
10
10
11
11
12
13
14
31
36
38
38
39
39
40
40
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
58
59
60
61
62
63
64
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 01 | 4191692 | CAB ASSY | |
| 01A | CAB | CAB | |
| 01B | CAB | CAB | |
| 01C | CAB | CAB | |
| 01D | CAB | CAB | |
| 01E | CAB | CAB | |
| 01F | CAB | CAB | |
| 03 | 4200084 | RUBBER | |
| 04 | 4200085 | RUBBER | |
| 05 | 4200086 | SPACER | |
| 06 | 9727615 | STOPPER | |
| 07 | 4185675 | STOPPER | |
| 09 | 4114405 | WASHER | |
| 10 | M660016 | NUT, U | |
| 11 | 4203189 | BOLT | |
| 12 | 4146719 | ASHTRAY | |
| 13 | M430510 | SCREW | |
| 14 | A590105 | WASHER, PLANE | |
| 31 | 6008736 | PLATE | |
| 36 | 2025435 | GLASS WOOL. | |
| 38 | 4204646 | PLATE | |
| 39 | J901025 | BOLT | |
| 40 | A590910 | WASHER, SPRING | |
| 42 | 4205082 | BUSHING, RUBBER | |
| 43 | 4205081 | BUSHING, RUBBER | |
| 44 | 4205080 | BUSHING, RUBBER | |
| 45 | 4205084 | BUSHING, RUBBER | |
| 46 | 4196453 | BUSHING, RUBBER | |
| 47 | J901030 | BOLT | |
| 48 | A590910 | WASHER, SPRING | |
| 49 | 4114402 | WASHER | |
| 50 | 1011456 | MAT | |
| 51 | 965452 | MIRROR | |
| 52 | A590906 | WASHER, SPRING | |
| 53 | A590106 | WASHER | |
| 54 | M430616 | SCREW | |
| 55 | 4165676 | MIRROR | |
| 56 | 3039640 | STAY | |
| 57 | 4172172 | SPRING, DISC | |
| 58 | A590112 | WASHER, PLANE | |
| 59 | J950012 | NUT | |
| 60 | 4217423 | MAT | |
| 61 | 4215494 | BRACKET | |
| 62 | J901025 | BOLT | |
| 63 | A590110 | WASHER, PLANE | |
| 64 | A590910 | WASHER, SPRING |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
