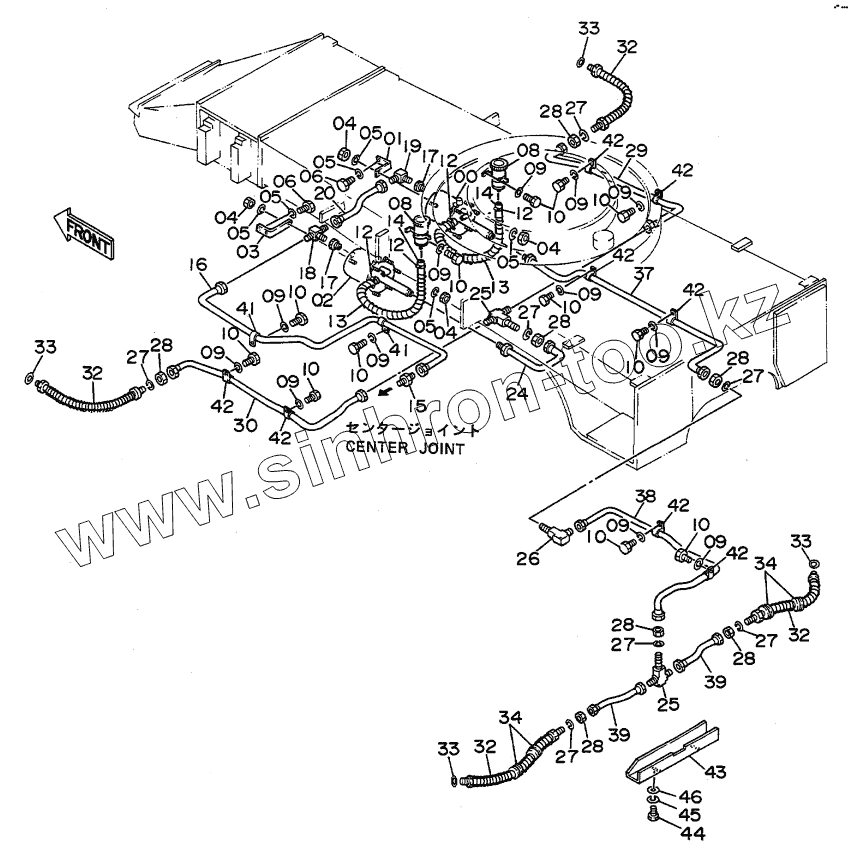

Каталог запасных частей к технике: Hitachi EX-100WD. BRAKE PIPINGS
4180463
1
2
3
4
4
4
4
4
5
5
5
5
5
5
6
6
8
8
9
9
9
9
9
9
9
9
9
9
9
9
10
10
10
10
10
10
10
10
10
10
10
12
12
12
12
13
13
14
15
16
17
17
18
19
20
24
25
25
26
27
27
27
27
27
27
27
28
28
28
28
28
28
28
29
30
32
32
32
32
33
33
33
33
34
34
37
38
39
39
41
41
42
42
42
42
42
42
42
42
43
44
45
46
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4180463 | 4180463 | BOOSTER | |
| 1 | 4196312 | BRACKET | |
| 2 | 4186190 | BOOSTER | |
| 3 | 4196315 | BRACKET | |
| 4 | M500807 | NUT | |
| 5 | A590908 | WASHER, SPRING | |
| 6 | J900814 | BOLT | |
| 8 | 4194439 | TANK, OIL | |
| 9 | A590906 | WASHER, SPRING | |
| 10 | J900612 | BOLT | |
| 12 | 4514700 | CLIP, HOSE | |
| 13 | 4149557 | PROTECTOR | |
| 14 | 4196455 | HOSE, RUBBER | |
| 15 | 4040197 | ADAPTER, S | |
| 16 | 8037177 | PIPE | |
| 17 | 94-1601 | REDUCER | |
| 18 | 4163158 | TEE, S | |
| 19 | 4086584 | ELBOW | |
| 20 | 9726683 | PIPE | |
| 24 | 9726690 | PIPE | |
| 25 | 4179081 | TEE | |
| 26 | 4179075 | ELBOW | |
| 27 | A590912 | WASHER, SPRING | |
| 28 | A501210 | HUT | |
| 29 | 8037173 | PIPE | |
| 30 | 8037174 | PIPE | |
| 32 | 4153987 | HOSE | |
| 33 | 987857 | PACKING | |
| 34 | 4205136 | BUSHING, RUBBER | |
| 37 | 8037280 | PIPE | |
| 38 | 8037206 | PIPE | |
| 39 | 8033930 | PIPE | |
| 41 | 4000855 | CLIP, PIPE | |
| 42 | 4000853 | CLIP, PIPE | |
| 43 | 3039628 | COVER | |
| 44 | J901020 | BOLT | |
| 45 | A590910 | WASHER, SPRING | |
| 46 | A590110 | WASHER, PLANE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
