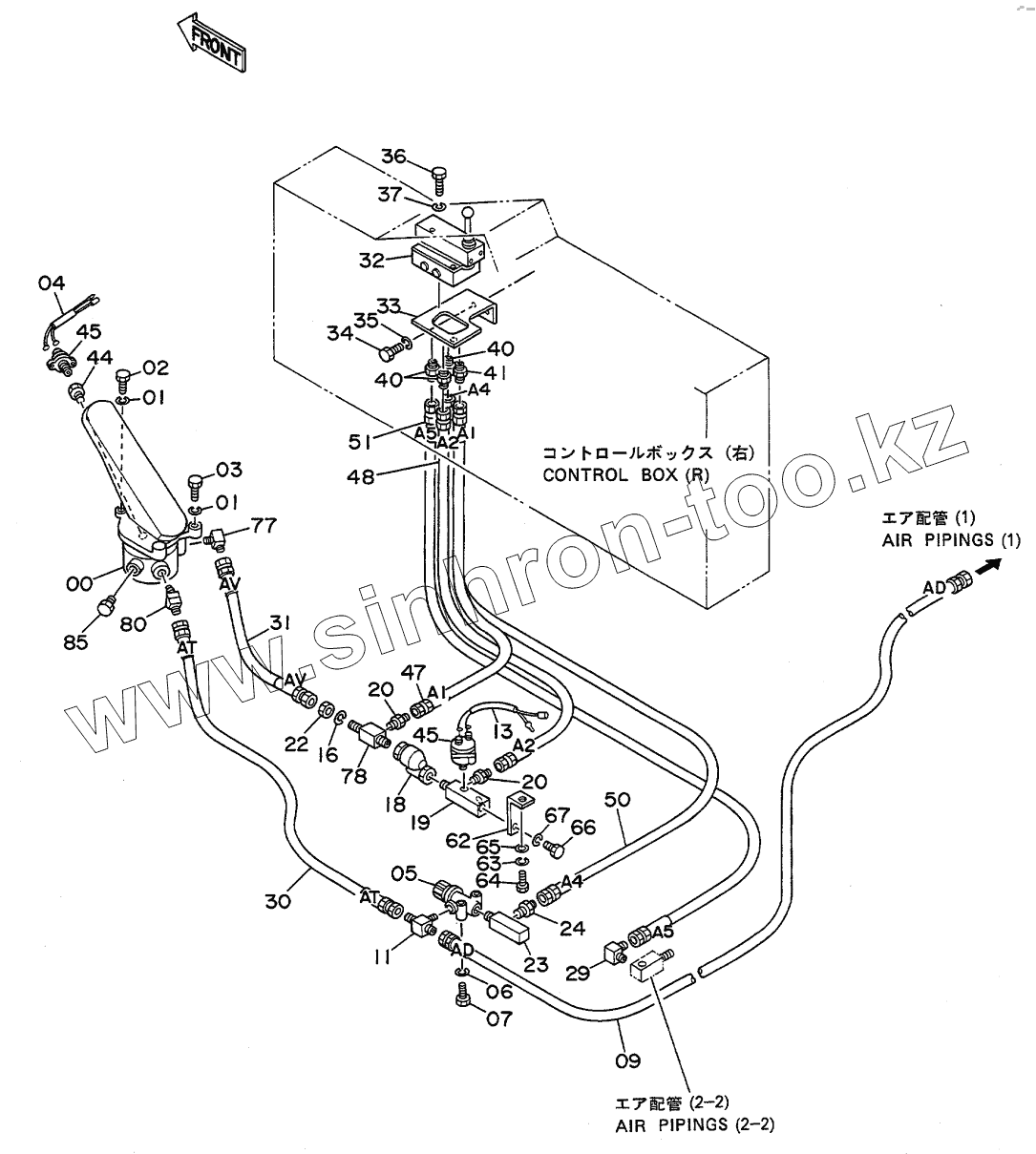

Каталог запасных частей к технике: Hitachi EX-100WD. AIR PPINGS (2-1)
4086378
1
1
2
3
4
5
6
7
9
11
13
16
18
19
20
20
22
23
24
29
30
31
32
33
34
35
36
37
40
40
41
44
45
45
47
48
50
51
62
63
64
65
66
67
77
78
80
85
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4086378 | 4086378 | VALVE, BRAKE | |
| 1 | A590910 | WASHER, SPRING | |
| 2 | J901030 | BOLT | |
| 3 | J901040 | BOLT | |
| 4 | 4218695 | HARNESS, WIRE | |
| 5 | 4123646 | VALVE, SAFETY | |
| 6 | A590906 | WASHER, SPRING | |
| 7 | J900645 | BOLT | |
| 9 | 4208443 | HOSE | |
| 11 | 4211164 | TEE, S | |
| 13 | 4218693 | HARNESS, WIRE | |
| 16 | A590916 | WASHER, SPRING | |
| 18 | 986953 | CHECK VALVE | |
| 19 | 4195752 | ADAPTER | |
| 20 | 4154651 | ADAPTER, S | |
| 22 | 4202531 | NUT | |
| 23 | 4195753 | ADAPTER | |
| 24 | 4154651 | ADAPTER, S | |
| 29 | 4154656 | ELBOW, S | |
| 30 | 4210343 | HOSE | |
| 31 | 4210342 | HOSE | |
| 32 | 4182317 | VALVE, CONTROL | |
| 33 | 3036861 | BRACKET | |
| 34 | J900820 | BOLT | |
| 35 | A590908 | WASHER, SPRING | |
| 36 | J900645 | BOLT | |
| 37 | A590906 | WASHER, SPRING | |
| 40 | 4154651 | ADAPTER, S | |
| 41 | 4156430 | ADAPTER, S | |
| 44 | 94-1601 | REDUCER | |
| 45 | 4086377 | SWITCH, PRES. | |
| 47 | 4208444 | HOSE | |
| 48 | 4208445 | HOSE | |
| 50 | 4208446 | HOSE | |
| 51 | 4208447 | HOSE | |
| 62 | 4208620 | BRACKET | |
| 63 | A590908 | WASHER, SPRING | |
| 64 | J900814 | BOLT | |
| 65 | A590108 | WASHER, PLANE | |
| 66 | J901016 | BOLT | |
| 67 | A590910 | WASHER, SPRING | |
| 77 | 4154657 | ELBOW, S | |
| 78 | 4211165 | ABATER | |
| 80 | 4157919 | ELBOW, S | |
| 85 | 94-2012 | PLUG |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
