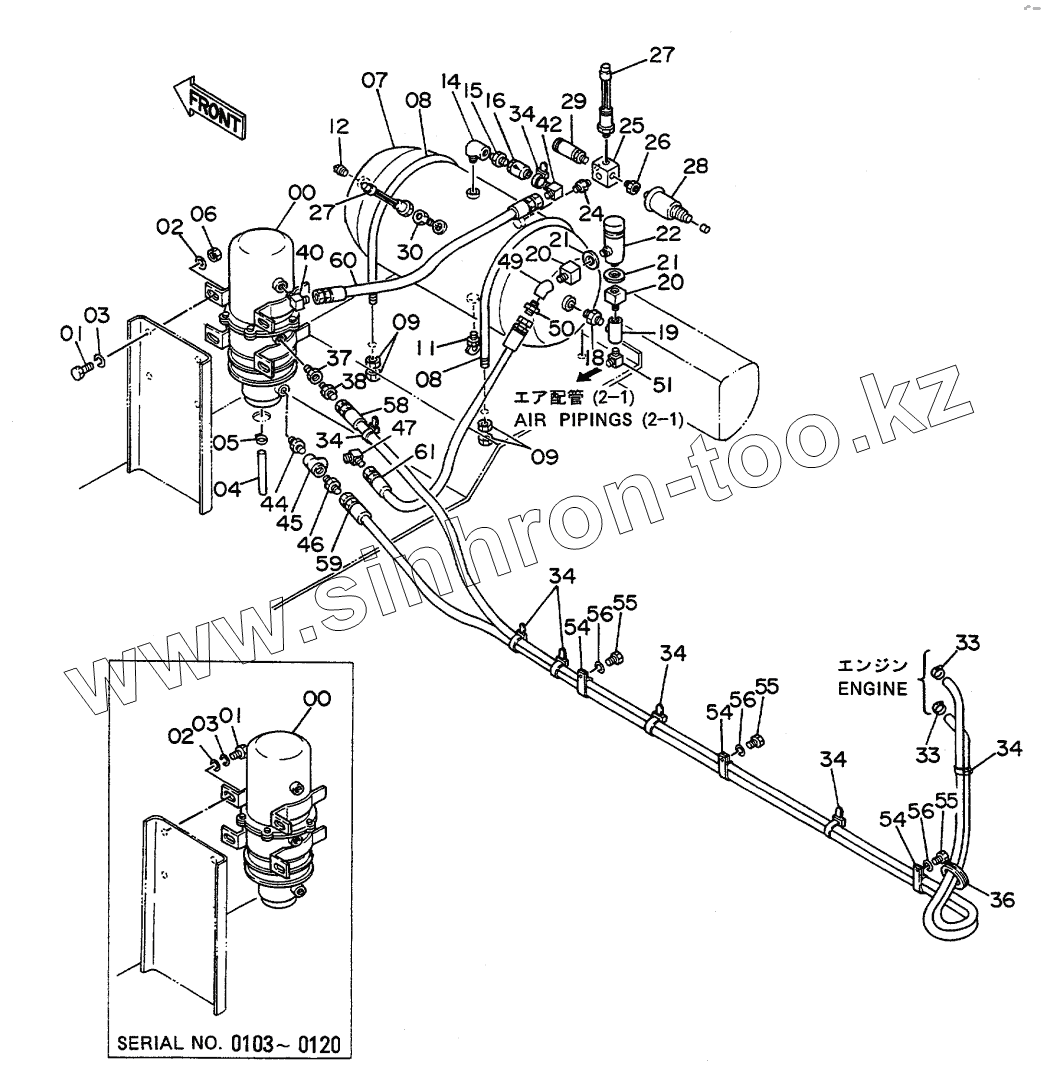

Каталог запасных частей к технике: Hitachi EX-100WD. AIR PIPINGS (1)
4172203
4172203
1
1
2
2
3
3
4
5
6
7
8
8
9
9
11
12
14
15
16
18
19
20
20
21
21
22
24
25
26
27
27
28
29
30
33
33
34
34
34
34
34
34
36
36
37
38
40
42
44
45
46
47
49
50
51
54
54
54
55
55
55
56
56
56
58
59
60
61
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4172203 | 4172203 | DRYER, AIR | |
| 1 | J901022 | BOLT | |
| 2 | A590110 | WASHER, PLANE | |
| 3 | A590910 | WASHER, SPRING | |
| 4 | 4209106 | HOSE | |
| 5 | 4514699 | CLAMP, HOSE | |
| 6 | J950010 | NUT | |
| 7 | 4172102 | TANK, AIR | |
| 8 | 4151541 | BOLT, U | |
| 9 | J950010 | NUT | |
| 11 | 4172103 | VALVE, DRAIN | |
| 12 | 94-2024 | PLUG | |
| 14 | 94-0632 | ELBOW, S | |
| 15 | 94-1902 | ADAPTER, S | |
| 16 | 986953 | CHECK VALVE | |
| 18 | 94-1902 | ADAPTER, S | |
| 19 | 94-0661 | TEE, S | |
| 20 | 499820 | ADAPTER | |
| 21 | 984219 | SEAL WASHER 20 | |
| 22 | 4092238 | GOVERNOR | |
| 24 | 94-1908 | ADAPTER, S | |
| 25 | 4165163 | BLOCK | |
| 26 | 94-1600 | REDUCER | |
| 27 | 4206449 | SWITCH, PRES | |
| 28 | 4168339 | UNIT | |
| 29 | 986952 | VALVE, SAFETY | |
| 30 | 94-1608 | REDUCER | |
| 33 | 4514700 | CLIP, HOSE | |
| 34 | 4055312 | CLIP, BAND | |
| 36 | 4209294 | BUSHING, RUBBER | |
| 36 | 4509404 | BUSHING, RUBBER | |
| 37 | 94-1602 | REDUCER | |
| 38 | 4154652 | ADAPTER, S | |
| 40 | 4207744 | ELBOW, S | |
| 42 | 4154657 | ELBOW, S | |
| 44 | 94-1901 | ADAPTER, S | |
| 45 | 94-0661 | TEE, S | |
| 46 | 4154652 | ADAPTER, S | |
| 47 | 4182734 | ELBOW | |
| 49 | 94-0601 | ELBOW, S | |
| 50 | 4156430 | ADAPTER, S | |
| 51 | 4154657 | ELBOW, S | |
| 54 | 4190282 | CLIP | |
| 55 | J901016 | BOLT | |
| 56 | A590910 | WASHER, SPRING | |
| 58 | 4209928 | HOSE | |
| 59 | 4209929 | HOSE | |
| 60 | 4209791 | HOSE | |
| 61 | 4209790 | HOSE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
