TOOLS
SPARE PARTS (35001-D94/11)
00
04
07
09
13
15
18
21
24
25
25А
26
27
28
29
30
101
102
106
107

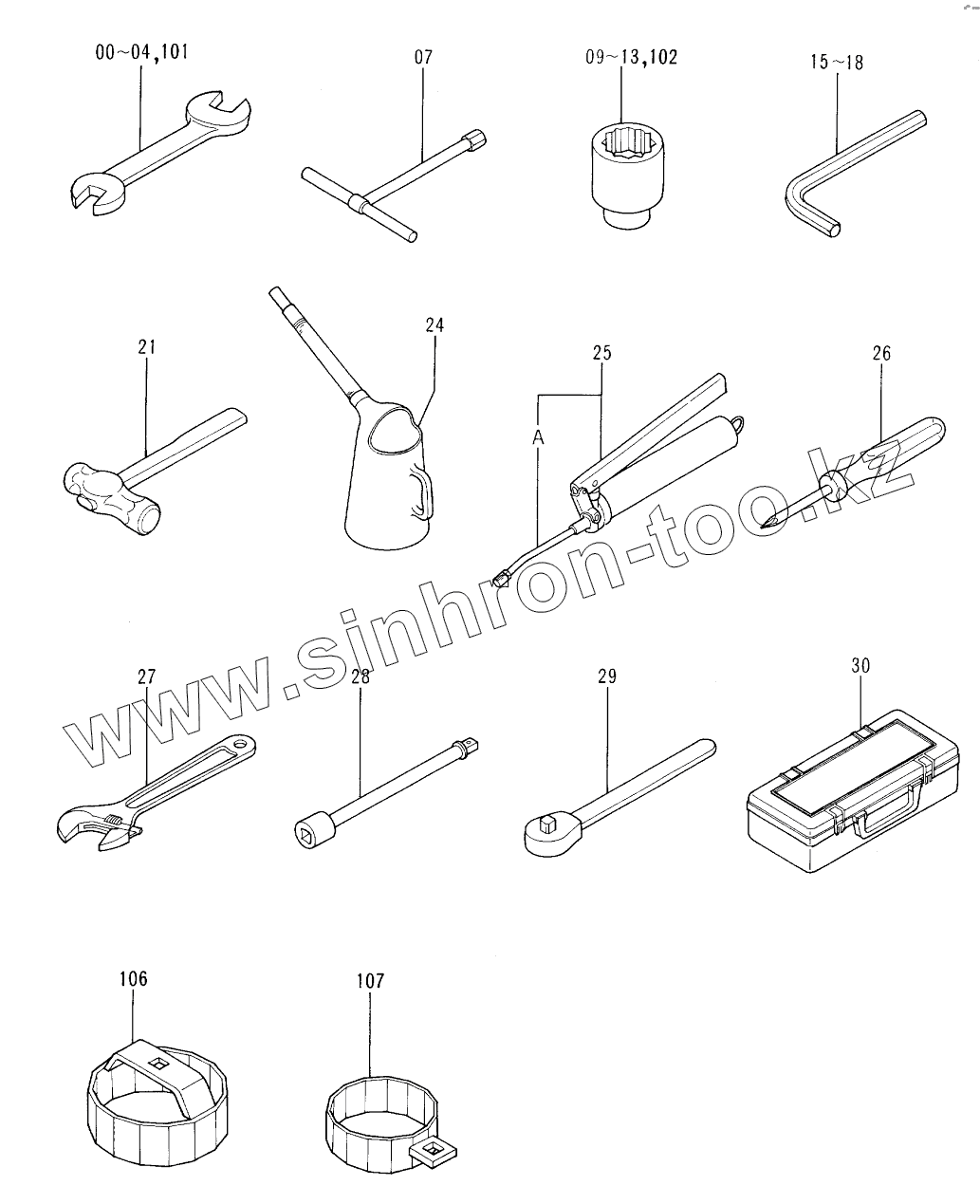

Позиция на иллюстрации
Заводской номер детали
Название детали
00
4200436
SPANNER
01
989858
SPANNER
03
989859
SPANNER
04
989860
SPANNER
07
958407
WRENCH, T
09
D99055
WRENCH, SOCKET
10
D99056
WRENCH, SOCKET
11
989848
WRENCH, SOCKET
12
4200437
WRENCH, SOCKET
13
989850
WRENCH, SOCKET
15
4020977
WRENCH, BAR
16
985710
WRENCH, BAR
17
958393
WRENCH, BAR
18
958394
WRENCH, BAR
21
4922685
HAMMER
24
924327
JOG, OIL
25
4131548
GUN, GREASE
25А
4223527
NOZZLE
26
4200434
S. DRIVER
27
4200438
WRENCH, ADJUST.
28
936010
BAR EXTENSION
29
985706
HANDLE, RATCHET
30
4276924
BOX
101
4200435
SPANNER
102
993043
WRENCH, SOCKET
106
4207869
WRENCH FILTER
107
4276949
WRENCH
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
