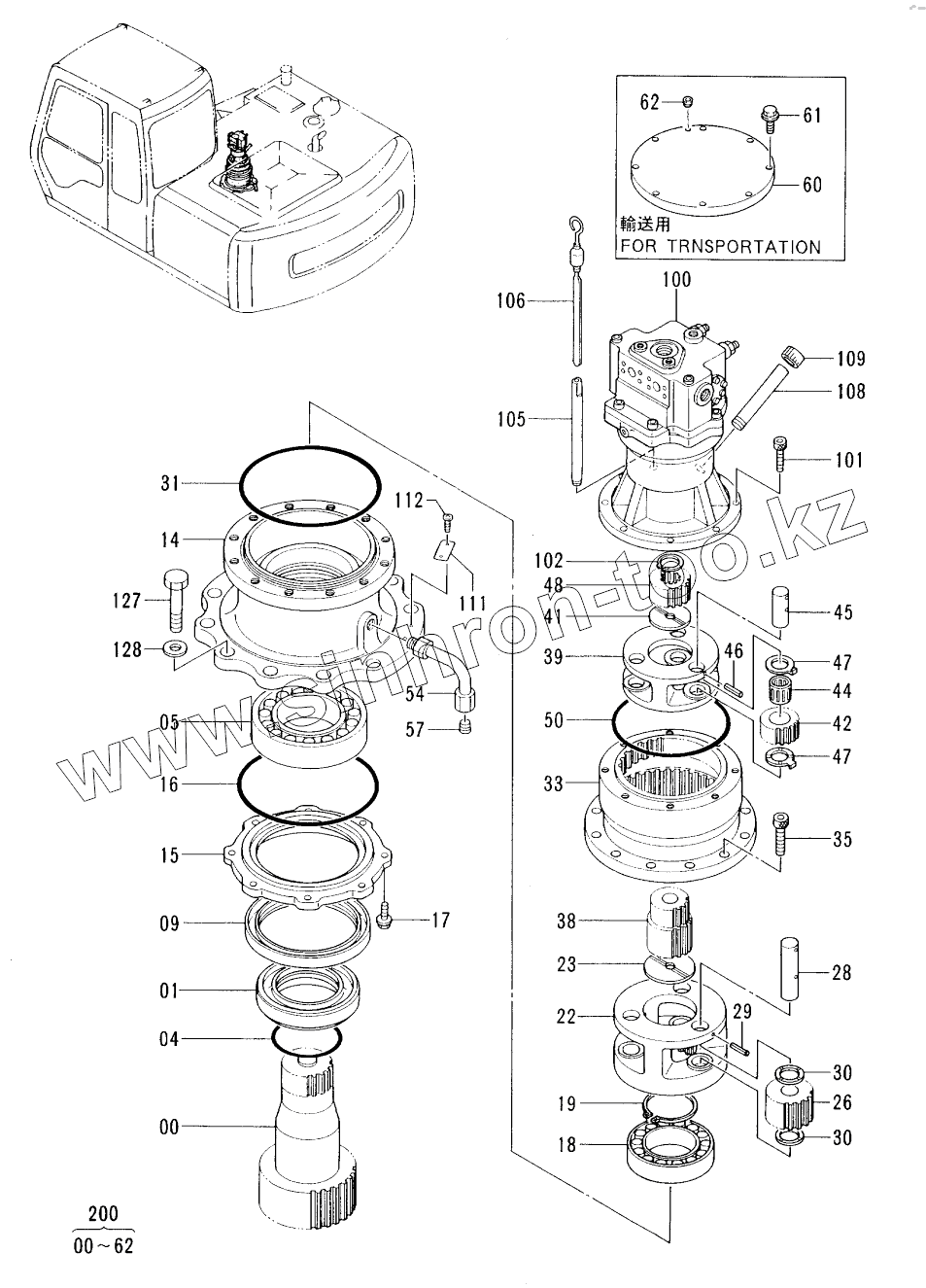

Каталог запасных частей к технике: Hitachi EX-100-3. SWING DEVICE
2028036
2028036
1
4
5
9
14
15
16
17
18
19
22
23
26
28
29
30
30
31
33
35
38
39
41
42
44
45
46
47
47
48
50
54
57
60
61
62
62
100
101
102
105
106
106
106
108
109
111
112
127
128
200
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 2028036 | 2028036 | SHAFT, PROP. | |
| 1 | 4244693 | SLEEVE | |
| 4 | A811100 | O-RING | |
| 5 | 4248609 | BRG., SPH.ROL. | |
| 9 | 4244691 | SEAL, OIL | |
| 14 | 1017261 | HOUSING | |
| 15 | 3058620 | COVER | |
| 16 | 4247567 | O-RING | |
| 17 | J011035 | BOLT, SEMS | |
| 18 | 4293424 | BRG., SPH.ROL. | |
| 19 | 991350 | RING, RETAINING | |
| 22 | 2031003 | CARRIER | |
| 23 | 4258089 | PLATE, THRUST | |
| 26 | 9732811 | GEAR, PLANETARY | |
| 28 | 4244696 | PIN | |
| 29 | 4063351 | PIN, SPRING | |
| 30 | 4266255 | PLATE, THRUST | |
| 31 | 4247567 | O-RING | |
| 33 | 2028037 | GEAR, RING | |
| 35 | M341450 | BOLT, SOCKET | |
| 38 | 3046918 | GEAR, SUN | |
| 39 | 2031106 | CARRIER | |
| 41 | 4244904 | PLATE, THRUST | |
| 42 | 3046916 | GEAR, PLANETARY | |
| 44 | 4249345 | BRG., NEEDLE | |
| 45 | 4244689 | PIN | |
| 46 | 4116307 | PIN, SPRING | |
| 47 | 4269480 | PLATE, THRUST | |
| 48 | 3046917 | GEAR, SUN | |
| 50 | 4244541 | O-RING | |
| 54 | 8050210 | PIPE | |
| 57 | 94-2012 | PLUG | |
| 60 | 8053413 | COVER | |
| 61 | J011050 | BOLT, SEMS | |
| 62 | 94-2011 | PLUG | |
| 100 | 4334355 | MOTOR, OIL | |
| 101 | M341028 | BOLT, SOCKET | |
| 102 | 927488 | RING, RETAINING | |
| 105 | 4264452 | PIPE | |
| 106 | 3053451 | GAUGE, LEVEL | |
| 106 | 3074223 | GAUGE | |
| 108 | 4255227 | PIPE | |
| 109 | 4298608 | CAP | |
| 111 | 3053093 | NAME-PLATE | |
| 112 | M492564 | SCREW, DRIVE | |
| 127 | J932060 | BOLT | |
| 128 | 4018545 | WASHER | |
| 200 | 9111265 | SWING DEVICE |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
