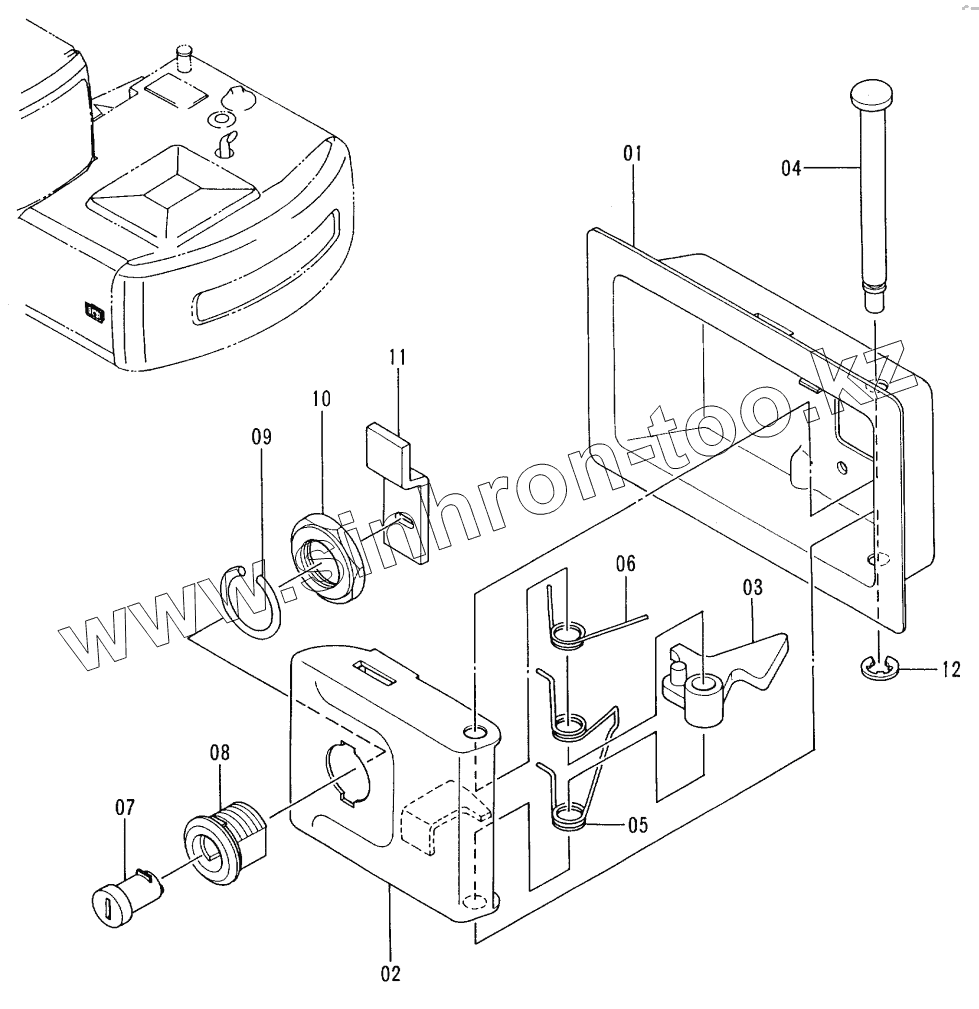

1
2
3
4
5
6
7
7
7
8
9
10
11
12
Позиция на иллюстрации
Заводской номер детали
Название детали
4354012
4354012
DOOR LOCK
4361637
4361637
DOOR LOCK
1
4355968
COVER
2
4355970
LATCH
3
4355971
LEVER
4
4355972
SHAFT
5
4355973
SPRING
6
4355975
SPRING
7
4355976
CYL., LOCK
7
4361783
CYL., LOCK
8
4355978
CASE
9
4355979
WASHER
10
4355980
NUT
11
4355981
PLATE
12
4355982
RING, RETAINING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
