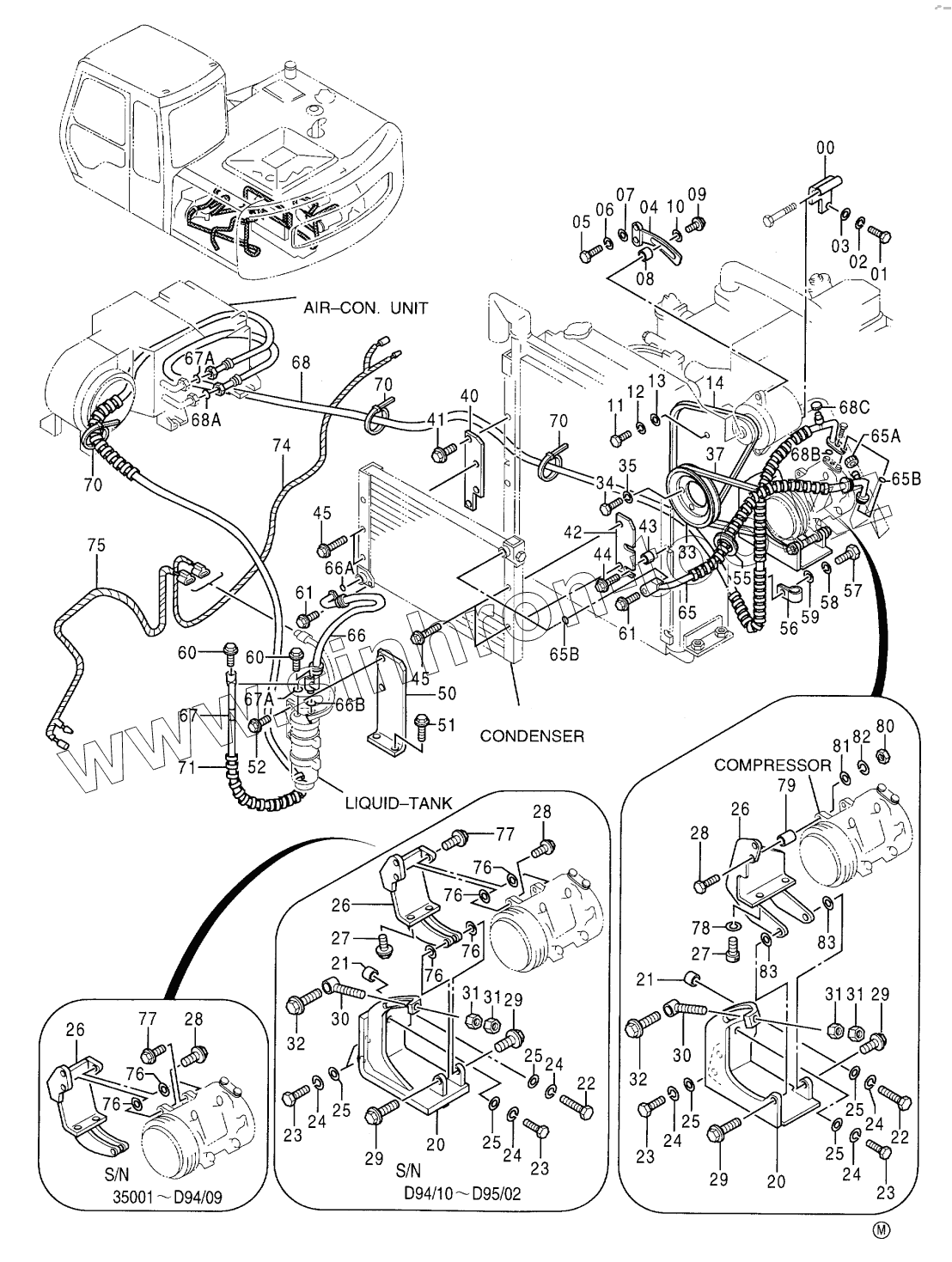

Каталог запасных частей к технике: Hitachi EX-100-3. AIR CONDITIONER (2)

zoom-in zoom-out enlarge shrink circle-right circle-left file-text2 info cart
9741864
1
2
3
4
5
6
7
8
9
10
11
12
13
14
20
20
20
21
21
22
22
23
23
23
23
24
24
24
24
24
24
25
25
25
25
25
25
26
26
26
26
27
27
27
28
28
28
28
29
29
29
29
29
30
30
30
31
31
31
31
32
32
32
33
34
35
37
37
37
40
41
42
43
44
45
45
50
51
52
55
56
57
58
59
60
60
60
60
60
61
61
61
61
61
65
65
65
65
65
65
65
65A
65B
65B
66
66A
66B
67
67
67
67A
67A
68
68
68
68
68
68
68
68A
68B
68C
70
70
70
71
74
75
76
76
76
76
76
76
77
77
77
78
79
80
81
82
83
83
Позиция на иллюстрации Заводской номер детали Название детали
9741864 9741864 BRACKET
1 M111028 BOLT
2 A590910 WASHER, SPRING
3 A590110 WASHER, PLANE
4 3055382 BRACKET
5 M111030 BOLT
6 A590910 WASHER, SPRING
7 A590110 WASHER, PLANE
8 4193743 SPACER
9 J010845 BOLT, SEMS
10 4225974 WASHER, PLANE
11 M161036 BOLT
12 A590910 WASHER, SPRING
13 A590110 WASHER, PLANE
14 4285670 BELT, V
20 7028846 BRACKET
20 7030208 BRACKET
21 4327188 SPACER
22 M111056 BOLT
23 M111025 BOLT
24 A590910 WASHER, SPRING
25 A590110 WASHER, PLANE
26 7027963 BRACKET
26 7030209 BRACKET
27 J011030 BOLT, SEMS
27 M341030 BOLT, SOCKET
28 J020835 BOLT
28 J901060 BOLT
29 J020830 BOLT, SEMS
29 J021030 BOLT, SEMS
30 9738736 BOLT
30 9745313 BOLT
31 J952010 NUT
32 J010840 BOLT SEMS
32 J011050 BOLT, SEMS
32 J020850 BOLT, SEMS
33 4193744 PULLEY
34 J900816 BOLT
35 A590908 WASHER, SPRING
37 4257130 BELT, V
37 4262734 BELT, V
40 9742830 BRACKET
41 J020635 BOLT, SEMS
42 9742831 BRACKET
43 4338134 SPACER
44 J020835 BOLT
45 J020850 BOLT, SEMS
50 9742177 BRACKET
51 J021030 BOLT, SEMS
52 J010814 BOLT, SEMS
55 94-2811 BUSHING, RUBBER
56 4190263 CLIP
57 J900822 BOLT
58 A590908 WASHER, SPRING
59 A590108 WASHER, PLANE
60 J010630 BOLT, SEMS
60 J020630 BOLT, SEMS
61 J010830 BOLT, SEMS
61 J020830 BOLT, SEMS
65 4330483 HOSE
65 4330483 HOSE
65 4330483 HOSE
65 4358046 HOSE
65A 4333996 CAP
65B 4333979 O-RING
66 4330484 HOSE
66A 4333979 O-RING
66B 4333980 O-RING
67 4330485 HOSE
67 4330485 HOSE
67A 4333980 O-RING
68 4330486 HOSE
68 4330486 HOSE
68 4330486 HOSE
68 4358047 HOSE
68A 4333981 O-RING
68B 4333990 O-RING
68C 4334006 CAP
70 4055312 CLIP, BAND
71 4044420 PROTECTOR
74 4338931 HARNESS, WIRE
75 4339283 HARNESS, WIRE
76 4340308 SHIM 0.5
77 J011035 BOLT, SEMS
77 J020835 BOLT
78 A590910 WASHER, SPRING
79 4353691 SPACER
80 J950010 NUT
81 A590110 WASHER, PLANE
82 A590910 WASHER, SPRING
83 4345095 SHIM
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
