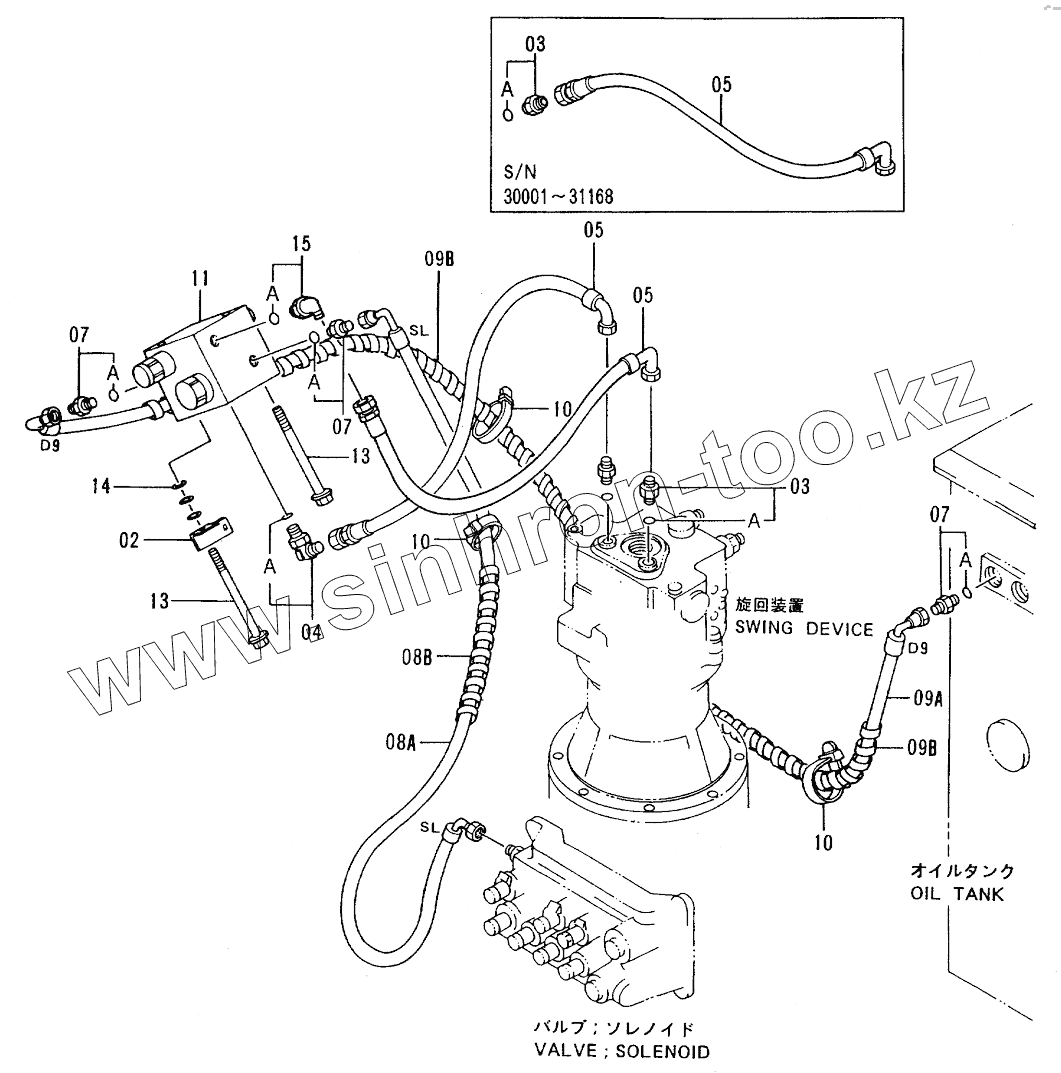

02
03
03
03
03
03A
03A
04
04A
05
05
05
07
07
07
07A
07A
07A
08A
08A
08B
09A
09B
09B
10
10
10
11
13
13
14
15
15A
Позиция на иллюстрации
Заводской номер детали
Название детали
02
4257159
BRACKET
03
4200465
ADAPTER, S
03
4200465
ADAPTER, S
03A
957366
O-RING
04
4154670
ELBOW, S
04A
957366
O-RING
05
4282481
HOSE
07
4200465
ADAPTER, S
07A
957366
O-RING
08A
4283947
HOSE, NYLON
08A
4313541
HOSE
08B
4133527
PROTECTOR
09A
4283948
HOSE, NYLON
09B
4133527
PROTECTOR
10
4055312
CLIP, BAND
11
4288148
VALVE
13
3011000
BOLT, SEMS
14
А590110
WASHER, PLANE
15
4193826
ELBOW, S
15A
957366
O-RING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
