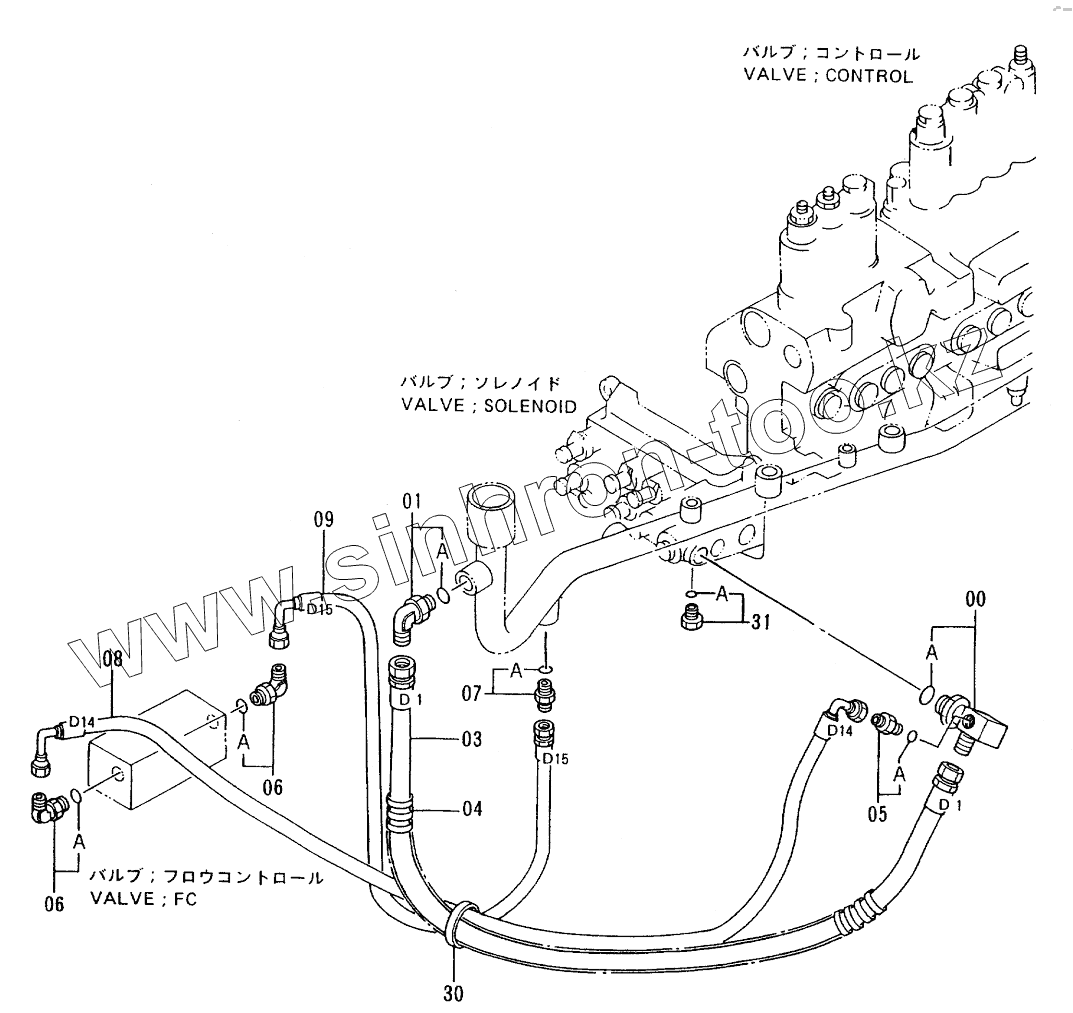

00
00A
01
01A
03
04
05
05A
06
06
06A
06A
07
07A
08
09
30
31
31A
Позиция на иллюстрации
Заводской номер детали
Название детали
00
4283986
ADAPTER
00A
4506418
O-RING
01
4154672
ELBOW
01A
4506418
O-RING
03
4285785
HOSE, NYLON
04
4044420
PROTECTOR
05
4261938
FILTER
05A
4509180
O-RING
06
4154671
ELBOW
06A
4509180
O-RING
07
4200466
ADAPTER, S
07A
4509180
O-RING
08
4283880
HOSE, NYLON
09
4283881
HOSE, NYLON
30
4055312
CLIP, BAND
31
4093624
PLUG
31A
957366
O-RING
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
