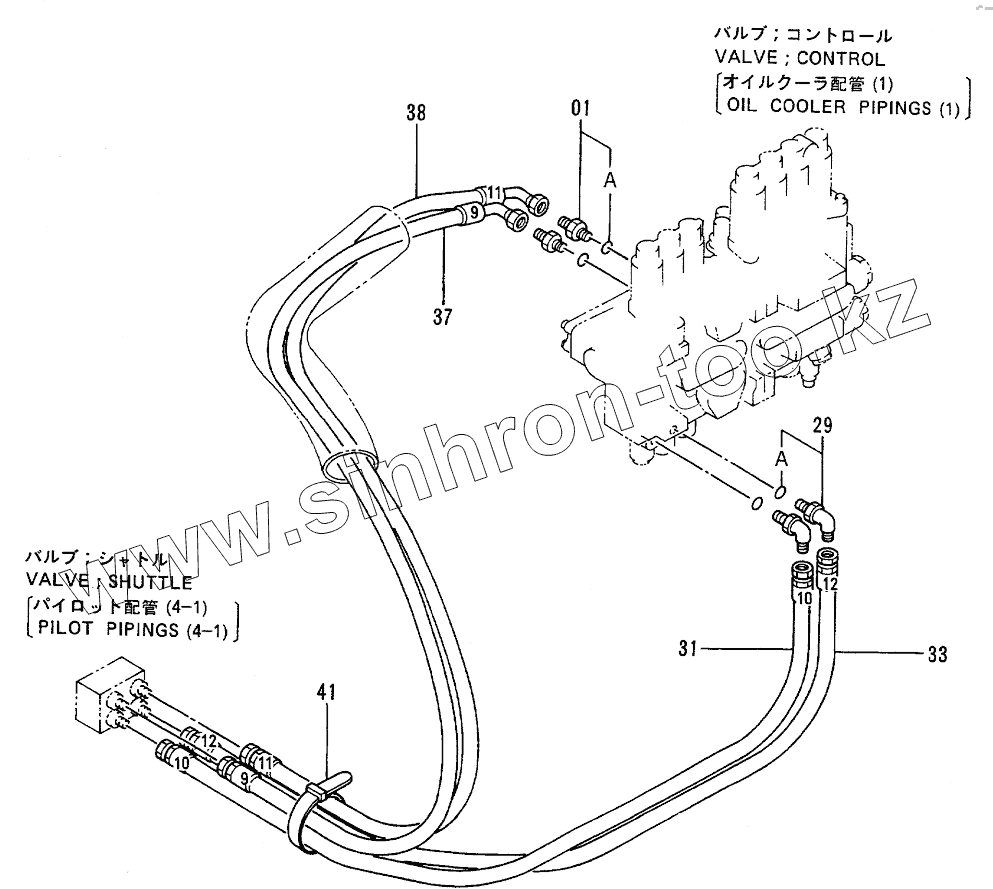

Каталог запасных частей к технике: Hitachi EX-100-2. PILOT PIPINGS (3-3)

Тип техники Не выбрано Легковые автомобили Грузовые автомобили и прицепы Автобусы Сельхозтехника Спецтехника Двигатели Мототехника

Марка Не выбрано Ammann BOMAG CARMIX CASE IH Changlin ChengGong Dimex Doosan DYNAPAC Foton HAMM Hidromek Hitachi Hyundai JCB JLG John Deere Komatsu LIEBHERR LiuGong Lonking (LongGong) Luneng MANITOU Mitsuber New Holland PENGPU RM-Terex SANY SDLG SEM Shantui Shehwa HBXG Soosan TIGARBO VOGELE Volvo WAY WIRTGEN XCMG XGMA Xiamen YTO Yuchai Zoomlion Автокран АЗСМ Алтайлесмаш Амкодор АОМЗ Атек АТЗ Балканкар Рекорд БелАЗ Беловеж Борекс Брянский Арсенал Булат ВЭКС ГАЗ Геомаш Гидромаш Донекс Дормаш Дормашина Дорэлектромаш ДЭЗ ЕлАЗ ЗЗГТ Ижнефтемаш Канаш-электрокар КЗКТ ККЗ Клевер Клинцовский автокрановый завод КМЗ КМЗ 1 Мая Ковровец Коммаш Кранэкс КЭЗ КЭМЗ ЛЗА МАЗ МЗИК МЗКМ МЗКТ Михневский РМЗ МоАЗ Мозырский МЗ МТЗ ОЗП Онежец ПАО "ТЗА" ППС Детва Промтрактор ПТЗ Раскат СпецАгрегат ТВЭКС ТТМ УВЗ Угличмаш УЗТМ ХТЗ ЧЗКМ ЧСДМ ЧТЗ ЭКСКО ЭКСМАШ ЮрМаш

Модель Не выбрано EX-100-2 (2000) EX-100-3 (2008) EX-100WD (2008) EX-120 (2008) EX-120-2 (2008) EX-160WD (2008) EX-200 (2008) EX-200-2 (2008) EX-200-3 EX-220 (2008) EX-220-2 (2008) EX-270 (2008) EX-300 (2008) EX-300-2 (2000) EX-400 Type A (2006) EX-400 Type B (2006) EX-60 (2003) EX-60-2 (2000) EX-60-3 (2008) EX-70 (2017) LX-110-7 (2008) LX-130-7 (2008) LX-150-2 (2008) LX-160-7 (2008) LX190-7/LX230-7 (2008) Zaxis 190-3 ZAXIS 200-5A (2018) ZAXIS 200LC-5A (2018) ZAXIS 210H-5A (2018) ZAXIS 210K-5A (2018) ZAXIS 210LCH-5A (2018) ZAXIS 210LCK-5A (2018) ZAXIS 330-5G (2017) ZAXIS 350H-5G (2017) ZAXIS 48U-5A (2020) ZAXIS 850-3 ZAXIS 870H-3 ZX-110 (2008) ZX-160W (2008) ZX-200 (2008) ZX-230 (2008) ZX-25 (2008) ZX-270 (2008) ZX-330 (2010) ZX-330-3 (Part № PIHH-I-3) (2008) ZX-330-3 (Part № PIHH-I-5) (2013) ZX-330-3G (2008) ZX-400R-3 (2010) ZX-450 (2006) ZX-600 (2007) Компоненты EX-100-2 (2000) Компоненты EX-100WD (2008) Компоненты EX-120 (2008) Компоненты EX-120-2 (2008) Компоненты EX-160WD (2008) Компоненты EX-200 (2008) Компоненты EX-200-2 (2008) Компоненты EX-200-3(LC, H) Компоненты EX-220 (2008) Компоненты EX-220-2 (2008) Компоненты EX-270 (2008) Компоненты EX-300 (2008) Компоненты EX-300-2 (2000) Компоненты EX-400 Type A (2006) Компоненты EX-400 Type B (2006) Компоненты EX-60 (2003) Компоненты EX-60-2 (2000) Компоненты EX-60-3 (2008) Компоненты ZAXIS 450, 470, 500, 520 (2010) Компоненты ZX-110 (2008) Компоненты ZX-120 (130) (2008) Компоненты ZX-160W (2008) Компоненты ZX-200 (2008) Компоненты ZX-230 (2008) Компоненты ZX-270 (2008) Компоненты ZX-330 (2008) Компоненты ZX-450 (2006)

Схема > Не выбрано FRAME COUNTERWEIGHT ENGINE RADIATOR RESERVE TANK AIR CLEANER MUFFLER FUEL PIPINGS FUEL TANK FUEL FEED PUMP (OPTION) FUEL DOUBLE FILTER (OPTION) D93/07 FUEL DOUBLE FILTER (OPTION) D93/08- PUMP DEVICE SWING DEVICE OIL TANK OIL COOLER PIPINGS (1) OIL COOLER PIPINGS (2) OIL COOLER PIPINGS (3) MAIN PIPINGS (1) MAIN PIPINGS (2) MAIN PIPINGS (3) MAIN PIPINGS (4) SWING PIPINGS ENGINE CONTROL MOTOR ENGINE CONTROL CABLE CONTROL LEVER (1) CONTROL LEVER (2) CONTROL LEVER (2) CONTROL LEVER (3) PILOT PIPINGS (1-1) PILOT PIPINGS (1-2) (STD) (N.EUROPE) PILOT PIPINGS (1-2) <USA> PILOT PIPINGS (2-1) PILOT PIPINGS (2-2) PILOT PIPINGS (3-1) PILOT PIPINGS (3-2) PILOT PIPINGS (3-3) PILOT PIPINGS (4-1) PILOT PIPINGS (4-2) <STD> PILOT PIPINGS (4-2) <N.EUROPE> PILOT PIPINGS (4-2) <USA> PILOT PIPINGS (5-1) <STD> PILOT PIPINGS (5-1) <N.EUROPE> <STD> PILOT PIPINGS (5-1) <USA> PILOT PIPINGS (5-2) <STD><N.EUROPE> PILOT PIPINGS (5-2) <USA> PILOT PIPINGS (6-1) PILOT PIPINGS (6-1) PILOT PIPINGS (6-2) CONSOLE (R) CONSOLE (L) <STD> CONSOLE (L) <N.EUROPE> CONSOLE (L) <USA> SWITCH BOX GAUGE PANEL <STD><USA> GAUGE PANEL <N.EUROPE> RADIO <STD> RADIO <N.EUROPE> <USA> ELECTRIC PARTS (1) ELECTRIC PARTS (2) <STD> ELECTRIC PARTS (2) <N.EUROPE> ELECTRIC PARTS (2) <USA> ELECTRIC PARTS (3-1) ELECTRIC PARTS (3-2) <STD><USA> ELECTRIC PARTS (3-2) <N.EUROPE> ELECTRIC PARTS (3-3) ELECTRIC PARTS (3-4) MOTION ALARM <USA> WINDOW WASHER CAR HEATER CAR HEATER PARTS CAR HEATER PIPINGS CAB GROUP (1)31706 CAB GROUP (1) CAB GROUP (1) CAB GROUP (2) REARVIEW MIRROR CAB <STD><USA> CAB <N.EUROPE> CAB (1) CAB (2) <STD><USA> CAB (2) <N.EUROPE> CAB (3) CAB (3) CAB (4) CAB (5) CAB (6) <STD><USA> CAB (6) <N.EUROPE> CAB (7) SUNVISOR <N.EUROPE> REAR COVER (INSIDE OF CAB) FLOOR PARTS SEAT <STD>, <N.EUROPE>, <USA> SEAT <USA> 32434- SEAT SUSPENSION <STD><N.EUROPE> SEAT SUSPENSION <STD><N.EUROPE> SEAT SUSPENSION <USA> SEAT SUSPENSION <USA> SEAT STAND <STD><N.EUROPE> SEAT STAND <USA>32580 SEAT BELT <STD><N.EUROPE> SEAT BELT <STD><N.EUROPE> SEAT BELT <USA> SEAT BELT <USA> COVER (1-1) COVER (1-2) COVER (1-3) COVER (1-4) COVER (1-5) COVER (2-1) COVER (2-2) DOOR LOCK (1) DOOR LOCK (2) TRACK FRAME SWING BEARING TRAVEL DEVICE FRONT IDLER ADJUSTER UPPER ROLLER LOWER ROLLER TRACK-LINK 500G CENTER JOINT TRAVEL PIPINGS TRAVEL PIPINGS COVER BOOM STD. ARM 2.26M BUCKET 0.4 FRONT PIPINGS (1) FRONT PIPINGS (2) LUBRICATE PIPINGS OFFSET BOOM (1) OFFSET BOOM (2) CONTROL PEDAL (OFFSET BOOM, BREAKER & RUSHER) PILOT PIPINGS (OFFSET BOOM, BREAKER & CRUSHER) MAIN PIPINGS (OFFSET BOOM) FRONT PIPINGS (OFFSET BOOM): 1 FRONT PIPINGS (OFFSET BOOM): 2 FRONT PIPINGS (OFFSET BOOM): 3 LUBRICATE PIPINGS (OFFSET BOOM) TRACK FRAME (RUBBER CRAWLER) FRONT IDLER (RUBBER CRAWLER) ADJUSTER (RUBBER CRAWLER) LOWER ROLLER (RUBBER CRAWLER) RUBBER CRAWLER MULTI LEVER PIPINGS (1) MULTI LEVER PIPINGS (2) MULTI LEVER PIPINGS (3) MULTI LEVER PIPINGS (4) AIR CONDITIONER (1) AIR CONDITIONER (1) AIR CONDITIONER (2) AIR CONDITIONER (2) AIR CONDITIONER (2) AIR-CON. UNIT AIR-CON. UNIT AIR-CON. CONTROLLER AIR-CON. CONTROLLER TROPICAL COVER WINDOW GUARD <USA> TRACK-LINK 500GP (RUBBER PAD) TRACK-LINK 600G TRACK-LINK 700G TRACK-LINK 510F TRACK-LINK 700A SHORT ARM 1.96M LONG ARM 2.81M FRONT PIPINGS (2) <LONG ARM> LUBRICATE PIPINGS <LONG ARM> BUCKET 0.17, BUCKET 0.25, BUCKET 0.33, BUCKET 0.45, BUCKET 0.5, ONE-POINT RIPPER SLOPE-FINISHING BLADE CLAMSHELL BUCKET (1) CLAMSHELL BUCKET (2) CLAMSHELL BUCKET (3) CLAMSHELL PIPINGS HOSE RUPTURE VALVE PIPINGS (BOOM) D94/01 HOSE RUPTURE VALVE PIPINGS (BOOM) D94/02- HOSE RUPTURE VALVE PIPINGS (BOOM) D94/01 HOSE RUPTURE VALVE PIPINGS (BOOM) D94/02- HOSE RUPTURE VALVE PIPINGS (BOOM) D94/01 HOSE RUPTURE VALVE PIPINGS (BOOM) D94/02- HOSE RUPTURE VALVE PIPINGS (ARM) D94/01 HOSE RUPTURE VALVE PIPINGS (ARM) D94/02- HOSE RUPTURE VALVE PIPINGS (ARM) D94/01 HOSE RUPTURE VALVE PIPINGS (ARM) D94/02- HOSE RUPTURE VALVE PIPINGS (ARM) 094/01 HOSE RUPTURE VALVE PIPINGS (ARM) D94/02- MAIN PIPINGS FOR BREAKER & CRUSHER FRONT PIPINGS FOR BREAKER & CRUSHER PIPINGS FOR NPK BREAKER & CRUSHER PIPINGS FOR OKADA/FURUKAWA BREAKER PIPINGS FOR OKADA/FURUKAWA BREAKER & CRUSHER TOOLS SPARE PARTS

01

01A

29

29A

31

33

37

36

41

Позиция на иллюстрации	Заводской номер детали		Название детали
01	4200467		ADAPTER, S
01A	957366		O-RING
29	4156434		ELBOW, S
29A	957366		O-RING
31	4263944		HOSE, NYLON
33	4283946		HOSE, NYLON
37	4285661		HOSE, NYLON
36	4285682		HOSE, NYLON
41	4055312		CLIP, BAND

Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
