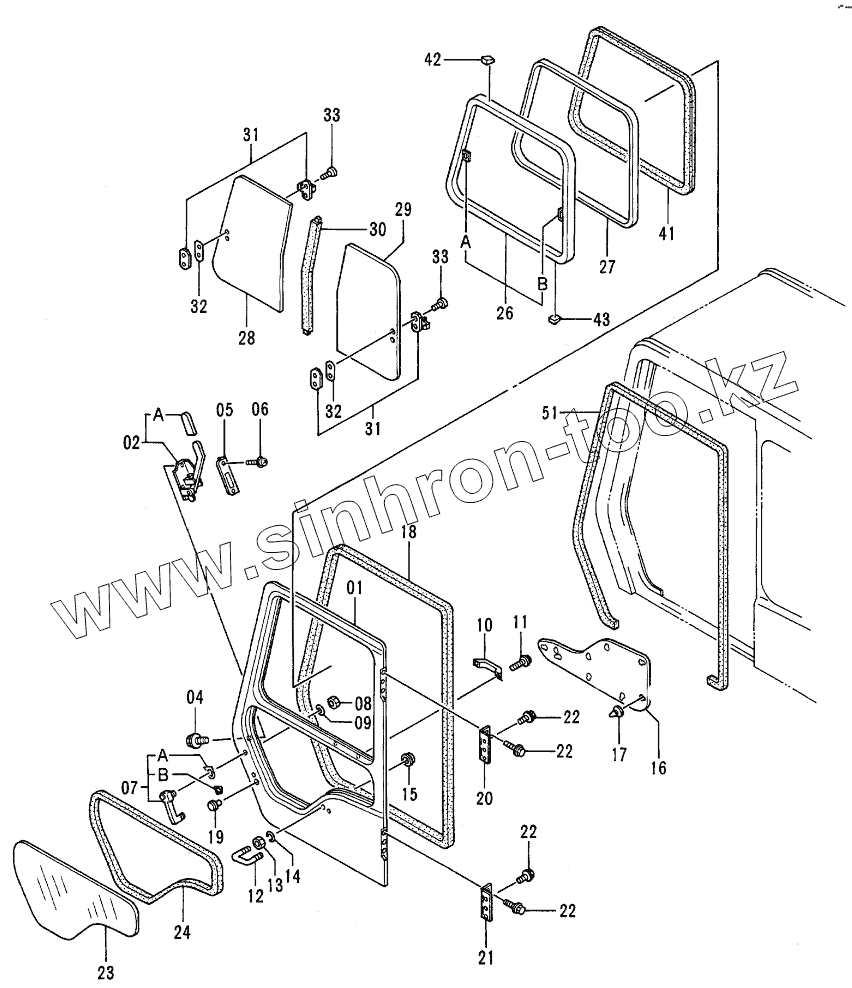

Каталог запасных частей к технике: Hitachi EX-100-2. CAB (5)
4304828
4289514
4295592
4147893
4289511
4323456
4323455
4295577
1
2
4
4
4
5
6
7
8
8
9
10
11
12
12
13
13
14
15
15
16
16
17
17
18
19
20
21
22
22
22
22
23
24
26
27
28
29
30
31
31
32
32
33
33
41
42
43
51
| Позиция на иллюстрации | Заводской номер детали | Название детали | |
|---|---|---|---|
| 4304828 | 4304828 | CAB DOOR ASSY | |
| 4289514 | 4289514 | SASH, DOOR ASSY | |
| 4295592 | 4295592 | CATCH | |
| 4147893 | 4147893 | CATCH | |
| 4289511 | 4289511 | CAB DOOR ASSY | |
| 4323456 | 4323456 | PACKING, NYLON | |
| 4323455 | 4323455 | PACKING, NYLON | |
| 4295577 | 4295577 | COVER | |
| 1 | 4295575 | DOOR | |
| 2 | 4295576 | LOCK | |
| 4 | 4Э17501 | SCREW, SEMS | |
| 4 | J460616 | SCREW, SEMS | |
| 4 | 4320168 | BOLT, SEMS | |
| 5 | 4295585 | COVER | |
| 6 | J460516 | SCREW SEMS | |
| 7 | 4295581 | HANDLE, OUTER | |
| 8 | М500807 | NUT | |
| 8 | 4321892 | NUT | |
| 9 | А590908 | WASHER, SPRING | |
| 10 | 4204579 | HANDLE | |
| 11 | J460616 | SCREW, SEMS | |
| 12 | 4295586 | BOLT, U | |
| 12 | 4304829 | BOLT, U | |
| 13 | 4295662 | NUT | |
| 13 | J950010 | NUT | |
| 14 | А590110 | WASHER, PLANE | |
| 15 | 4295662 | NUT | |
| 15 | 4317502 | NUT | |
| 16 | 4295730 | TRIM, PAD | |
| 16 | 4320169 | TRIM, PAD | |
| 17 | 4320147 | CLIP | |
| 17 | 4204607 | CLIP | |
| 18 | 4295587 | WEATHER-STRIP | |
| 19 | 4295588 | LOCK | |
| 20 | 4295589 | HINGE, DOOR | |
| 21 | 4295590 | HINGE, DOOR | |
| 22 | 4295578 | BOLT, SEMS | |
| 23 | 4289512 | GLASS | |
| 24 | 4289513 | RUBBER, Z | |
| 26 | 4295591 | SASH | |
| 27 | 4295606 | GLASS-RUN | |
| 28 | 4289516 | GLASS | |
| 29 | 4289515 | GLASS | |
| 30 | 4295609 | RUBBER | |
| 31 | 4295610 | LOCK | |
| 32 | 4295611 | SPACER | |
| 33 | 4219753 | SCREW | |
| 41 | 4295612 | RUBBER | |
| 42 | 4204567 | SPACER | |
| 43 | 4147896 | SPACER | |
| 51 | 4295613 | RUBBER |
Содержащиеся в справочниках-каталогах запасные части и детали не предлагаются к продаже, а носят исключительно информационный характер
